12V DC Marine Float Switch Bilge Pump Automatic Electric Water Pump Boat Water Level Controller Flow Sensor Switch 24V 32Vfor Yacht

Marine Bilge Pump Float

A bilge pump float switch is a smart device used in boats that turns on a bilge pump when the water in the bilge reaches a certain level. It is a must-have in any boat that is left unattended for any length of time, as all boats tend to leak at least some water. This switch is submerged, so you need to waterproof the electrical connections and hang the wires to ensure they stay as dry as possible.

Feature:

*1.Float switch is good for yachtsmen,commercial fisherman&boat builder the world over for use with pumps drawing up to 20amps.

*2.Provides automatic on/off bilge pump control.

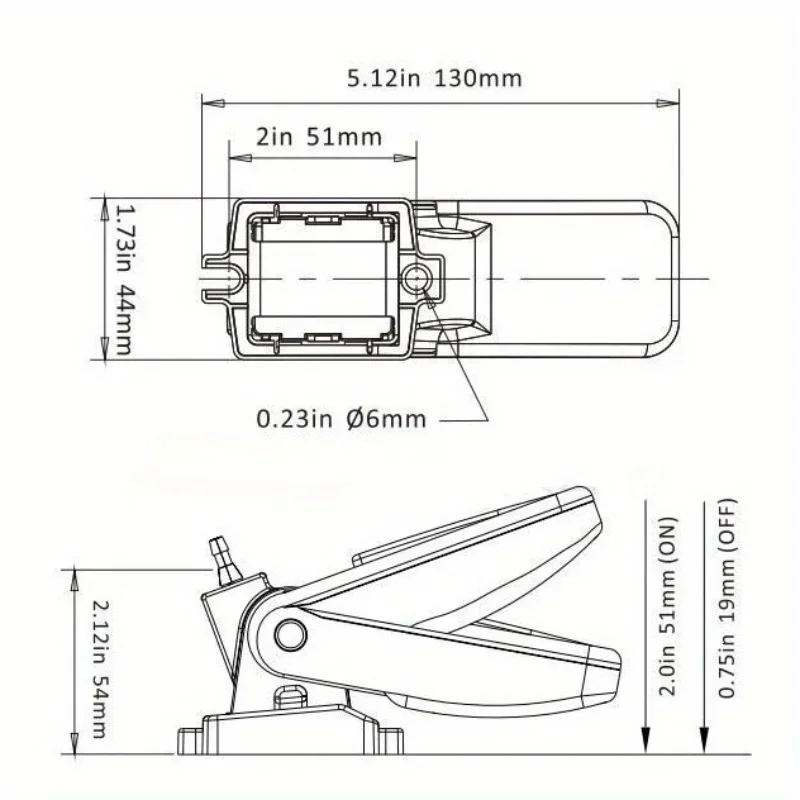

*3.Turns pump on when water level reaches 2" (51mm) and turns pump off when water level reaches 3/4" (19mm).

*4.Complete with 28" wire cable.

*5.It is suitable For 12 – 24 – 32 Volts.

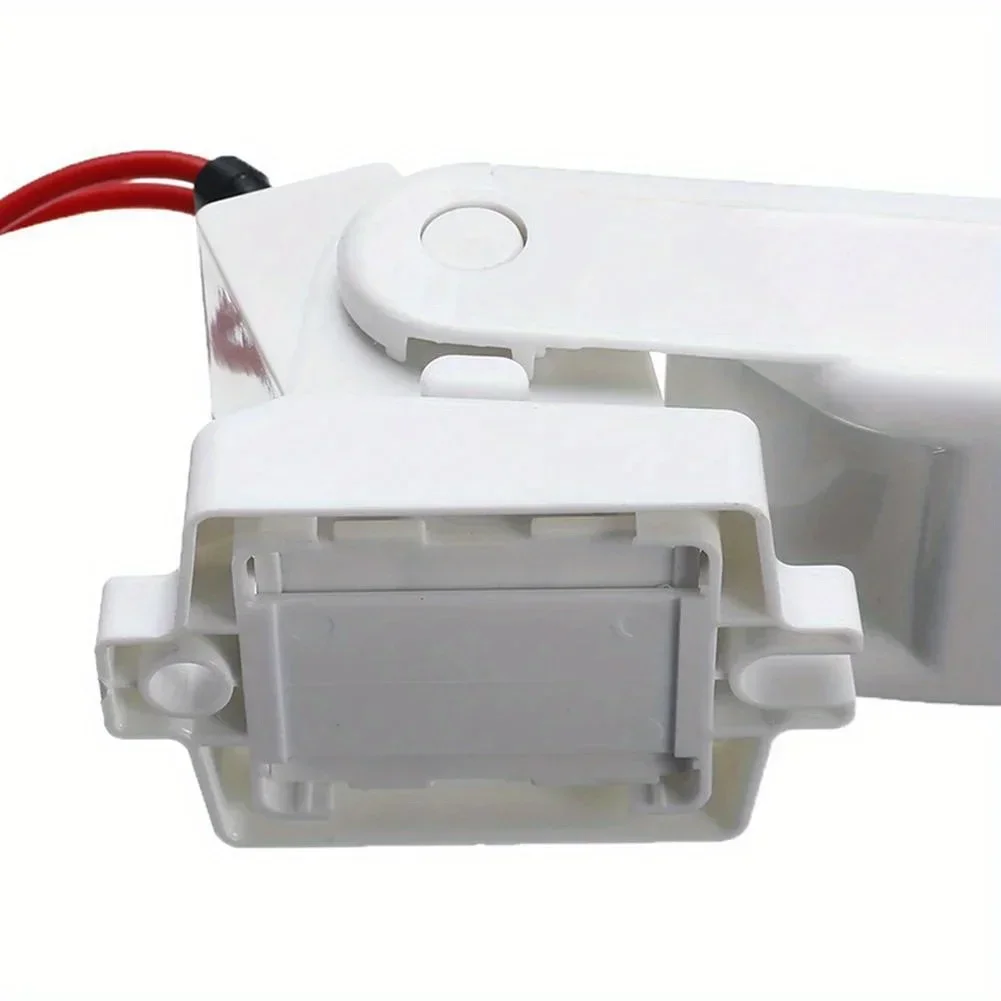

*6.The service life is very long, and the number of switches is as high as 100,000 times; Self-contained mounting card holder, providing two mounting modes: bottom/side.

*7.Automatic switch-on when the horizontal plane is ≥55mm; ≤25mm or less automatic disconnection; And can meet that position requirements of different liquid level height by increasing/decreasing the thickness of the underlying material of the mounting base.

*8.High-quality copper cable with a diameter of 3.5mm (the internal copper wire has a diameter of up to 2mm) is used to ensure normal operation even if the maximum current of 30 years passes through.

*9.Ultrasonic welding, sealing and molding at one time, reliable and safe, and no water leakage.

*10.The shell is made of high-quality ABS material with internal metal contacts to ensure reliable start/stop.

*11.With the water pump, an automatic stop/start system can be formed to avoid idling, burning or failure of the water pump; Automatic attendance can be realized without manpower, time-consuming and laborious guarding.

Specifications:

Max Amps 20 For 12 Volts

Max Amps 10 For 24 Volts

Max Amps 8 For 32 Volts

Color:White

Applicable to the following broad industries:

1. General industrial equipment and medical equipment.

2. Chemical equipment, tourist vehicles, special vehicles and ships.

3. Supporting industrial machinery.

4. Agriculture (lawn and garden, etc.).

5. Vehicle cleaning, carpet cleaning, floor cleaning, etc.

6. Water purification and water treatment equipment.

Lists:

1 * Switch

Notes:

1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

2.Please allow slight manual measurement deviation for the data.
