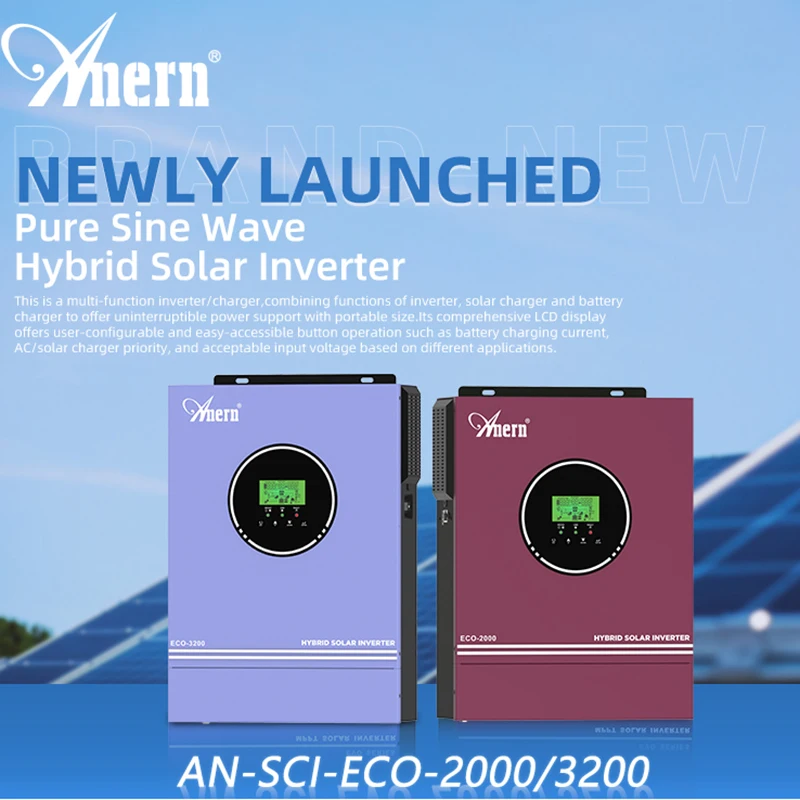

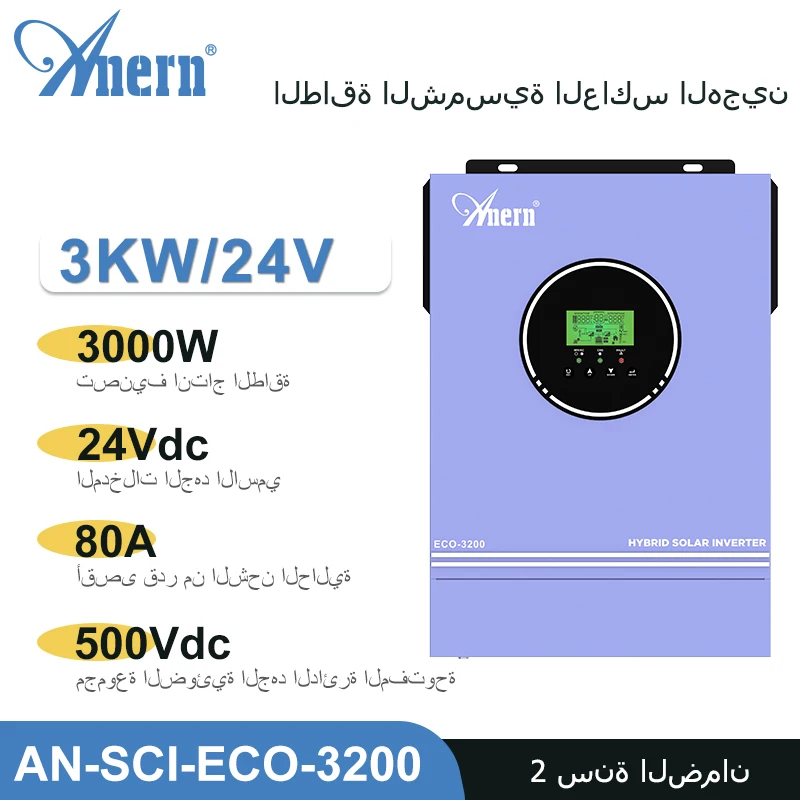

1600W 3000W Hybrid Solar Inverter 12V 24V 220V Pure Sine Wave Inverter Built in MPPT 80A Solar Charger Controller Max PV 400VDC
Price range: د.إ691.93 through د.إ1,222.99
- High-concerned chemical: None
- is_customized: Yes
- Output Current: 80A
- Model Number: SCI-ECO-2000/3200
- Output Power: 500 – 1000W
- Size: 390*270*100mm
- Output Type: SINGLE
- Weight: 6.5kg
- Brand Name: ANERN
- Output Frequency: 50HZ/60HZ
- Is Smart Device: Yes
- Origin: Mainland China
- Certification: CE
- Solar inverter hybrid 1600W: Solar inverter hybrid 1KW 3KW
|
Model |
SCI-ECO-2000 |
SCI-ECO-3200 |
|
RATED POWER |
2000VA/1600W |
3200VA/3000W |
|
AC INPUT |
|
AC Input Voltage |
230VAC |
|
Selectable Voltage Range |
170-280 VAC (For Personal Computers) |
|
Selectable Voltage Range |
90-280 VAC (For Home Appliances) |
|
Frequency Range |
50 Hz/60 Hz (Auto sensing) |
|
AC OUTPUT |
|
AC Voltage Regulation (Batt. Mode) |
230VAC ± 5% |
|
Surge Power |
4000VA |
6400VA |
|
Efficiency (Peak) PV to Inverter |
98% |
|
Efficiency (Peak) Battery to Inverter |
94% |
|
Transfer Time |
10 ms (For Personal Computers); 20 ms (For Home Appliances) |
|
Waveform |
Pure sine wave |
|
BATTERY & AC CHARGER |
|
Battery Voltage |
12VDC |
24VDC |
|
Floating Charge Voltage |
13.5VDC |
27VDC |
|
Overcharge Protection |
16VDC |
33VDC |
|
Maximum AC Charge Current |
60A |
|
SOLAR CHARGER |
|
Maximum PV Array Power |
2000W |
3000W |
|

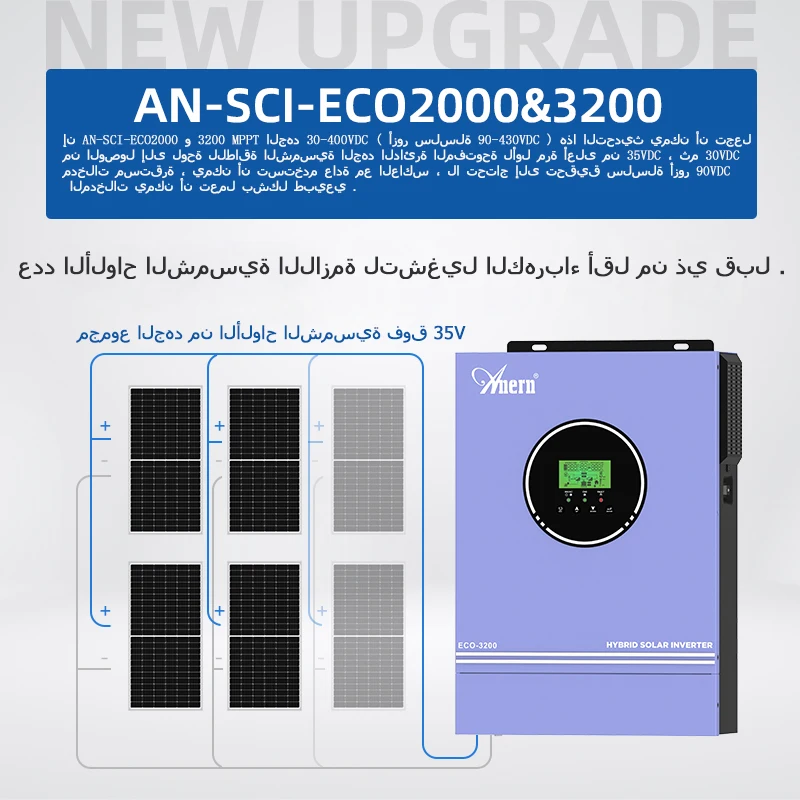

MPPT Range @ Operating Voltage |
30-400VDC |
|
Maximum PV Array Open Circuit Voltage |
400VDC |
|
Maximum Charging Current |
80A |
|
PHYSICAL |
|
Dimension, D x W x H (mm) |
360*270*100mm |
390*270*100mm |
|
INTERFACE |
|
Communication interface |
WIFI |
|
OPERATING ENVIRONMENT |
|
Humidity |
5% to 95% Relative Humidity(Non-condensing) |
|
Operating Temperature |
–10°C – 50°C |
|
Storage Temperature |
–15°C – 60°C |
FQA
Q: Can inverters be connected in series or parallel?
A: NO.
Q: What types of batteries can be used?
A: Lead-acid batteries, gel batteries,Lithium Iron Phosphate(LiFePo4) and lithium batteries can be used. 24V battery for 3.6KW, 48V battery for 6.2KW. The battery cannot be less than 100AH.
Q: Can it be used in air conditioners, water pumps, and wind turbines?
A: It can be used in air conditioners, but not in water pumps and wind turbines.
Q: How to choose the power of the inverter according to the household appliances?
A: If household appliances contain inductive load appliances, such as refrigerators, washing machines, air conditioners, etc., the power of the inverter is at least three times the total power of the inductive load appliances, otherwise the appliances may not be able to start.

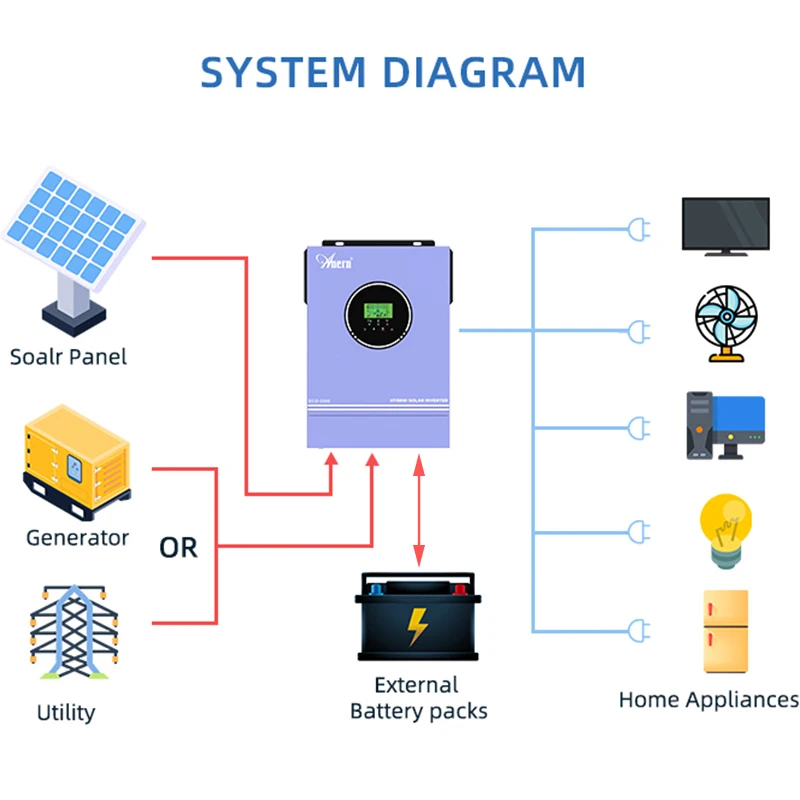

Q: Is it possible to use PV, battery, grid supply at the same time?
A: YES. The default PV priority mode, when the PV input is insufficient, the battery and utility will be used.
1. The starting power of inductive load electrical appliances shall be at least three times of the rated power of the electrical appliances. If the starting power exceeds the inverter power, the inverter may be damaged. Please select a suitable model before purchasing.
2. Please connect the circuit correctly according to the instructions, and install switches for each circuit.
3. Starting sequence: first turn on the battery switch, start the inverter, and turn on the PV, mains and load switches.
4. Shutdown sequence: turn off the switches of load, PV and mains, turn off the inverter, and finally turn off the battery.
