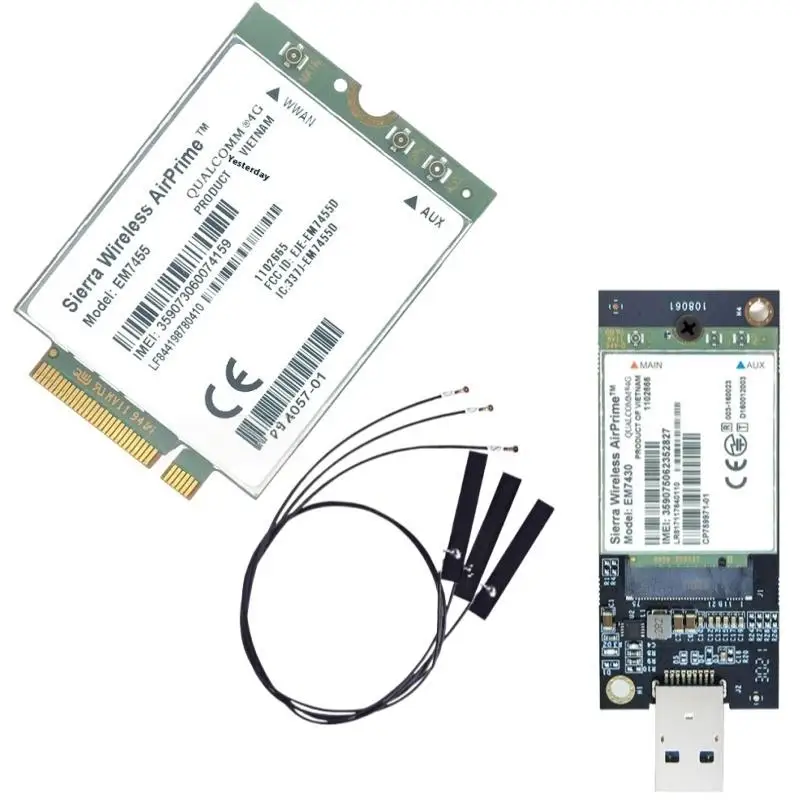

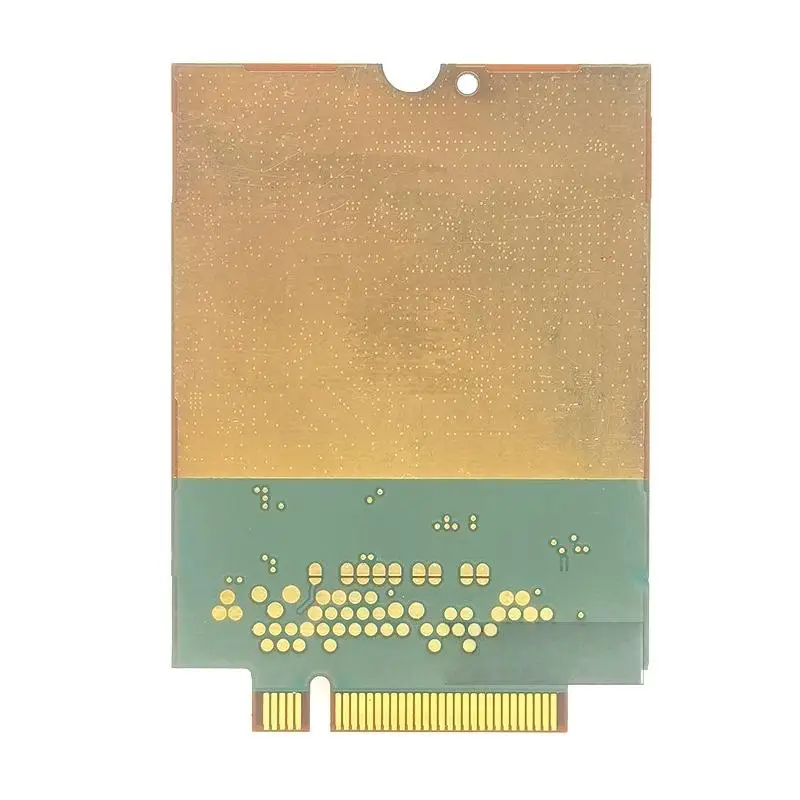

1Set Metal 4G CARD 300Mbps WWAN Wireless EM7455 1103582 FDD/TDD LTE Cat6 NGFF M.2 4G MODULE For Laptop And 4G Router

Description :

Note: Standard Public version

Not support lenovo laptop and hp laptop

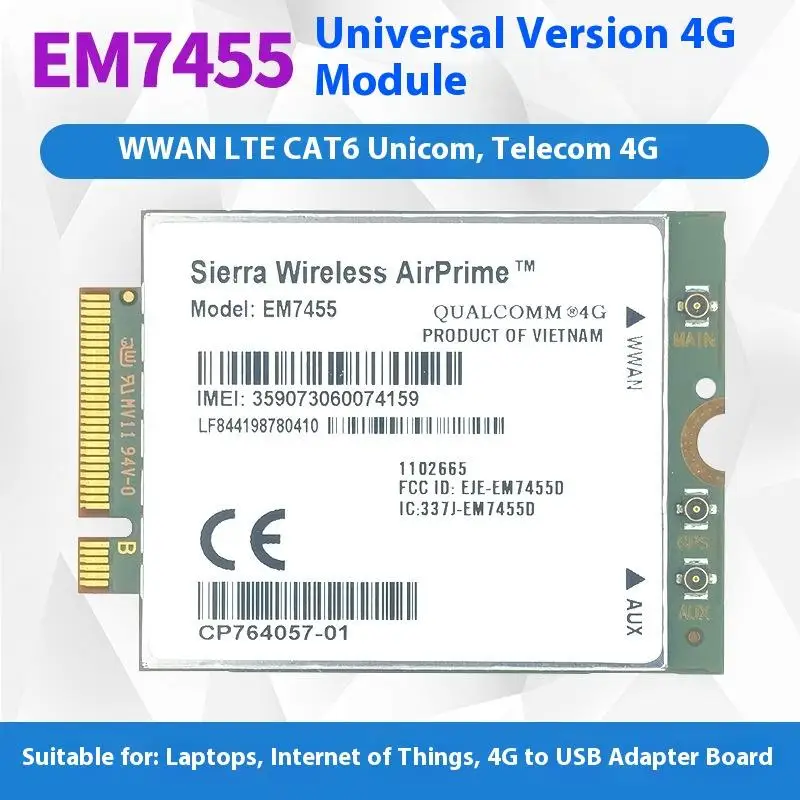

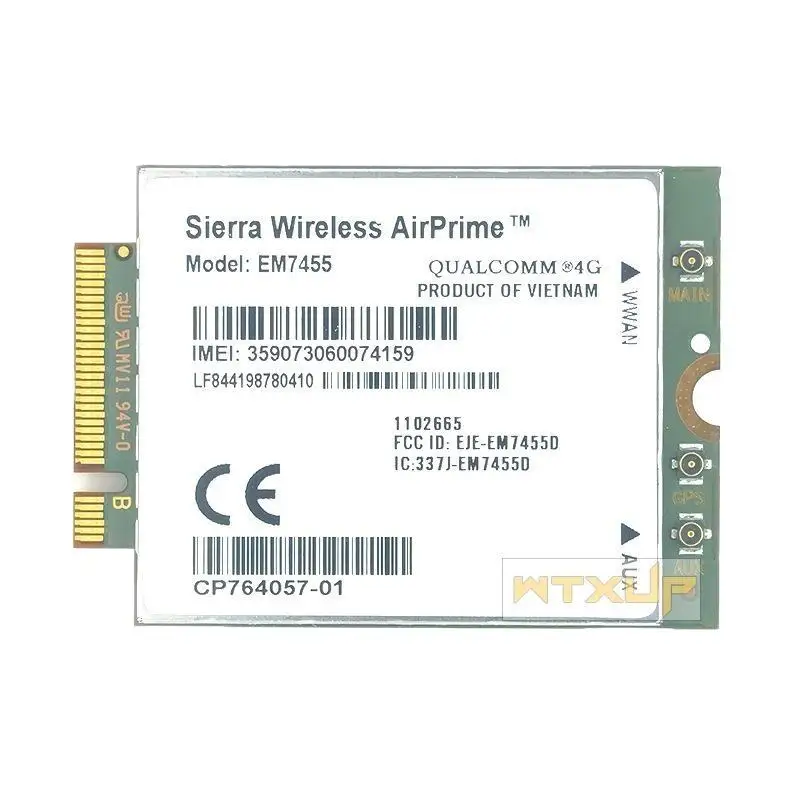

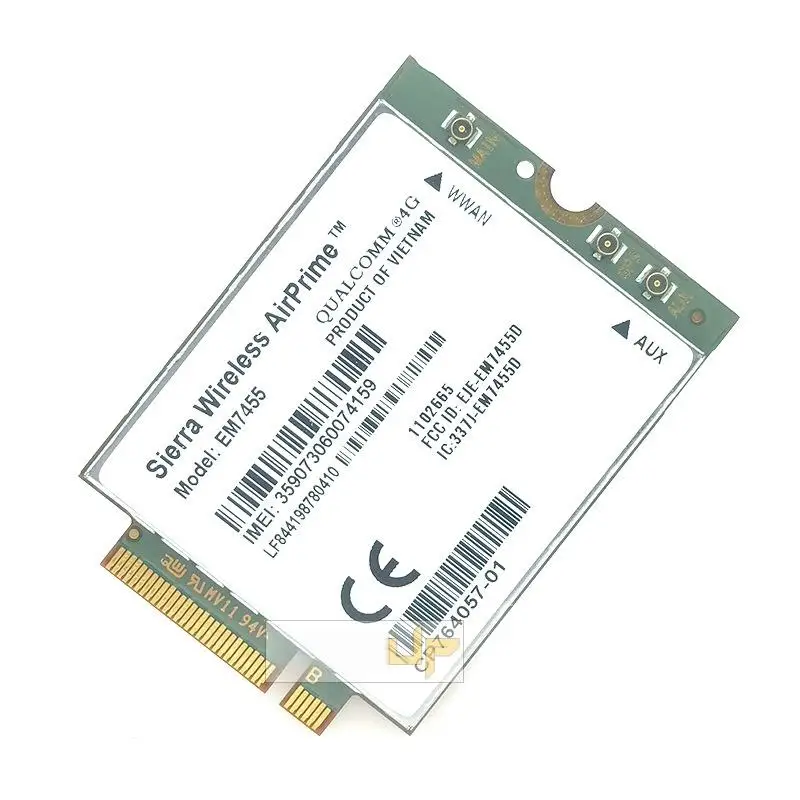

EM7455 is a 4G-LTE cat 6 module (FDD & TDD), with a down link data rate of up to 300 Mbps, primarily for Europe, North and South America. Support for Carrier Aggregation (CA) and MIMO. Fall back to 3G-HSPA+DC with Rx diversity. A GNSS receiver is integrated. Supported frequency bands: 4G B1-B5, B7, B8, B12, B13, B20, B25, B26, B29, B30, B41 ; 3G B1-B5, B8. Form factor is M.2, 42 x 30 mm. Designed for high speed industrial M2M and mobile computing solutions, the AirPrime® EM74 series embedded modules deliver high speed connectivity on LTE and HSPA+ networks. Based on the M.2 standard with a USB host interface, the EM series modules offer an easy upgrade path to new network technologies and global access to high speed networks. The M.2 formfactor is also known as NGFF (New Generation Form Factor).

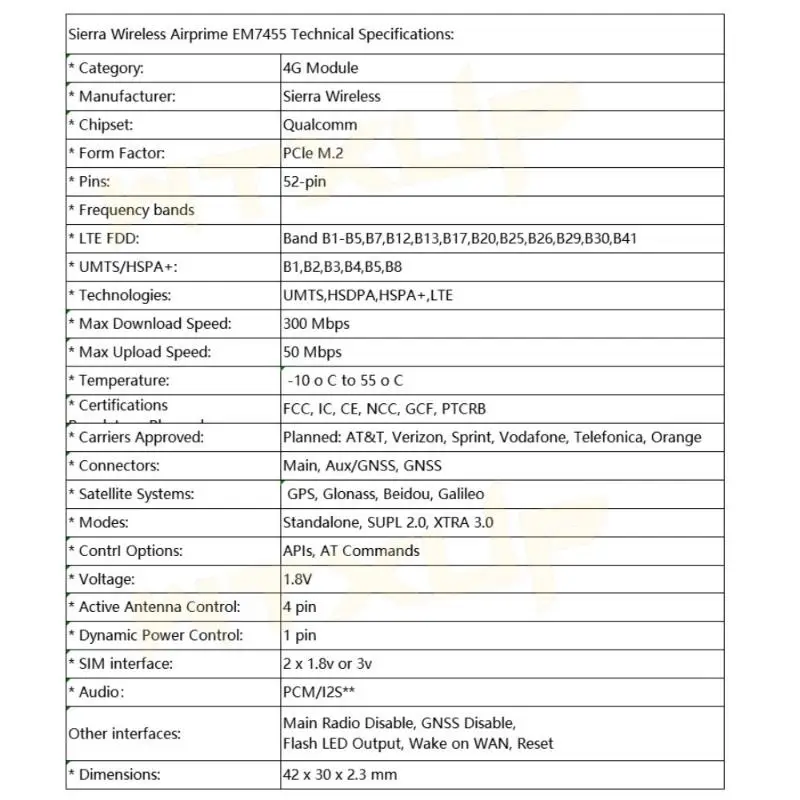

Features

Region: Primarily for Europe, North America, South America

Air interface: 4G-LTE cat 6 (FDD & TDD) with CA (Carrier Aggregation) and MIMO, 3G-HSPA+DC with Rx Diversity, GNSS

4G bands: B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B20 (800), B25 (1900), B26 (850), B29 (700), B30 (2300), B41 (2500/TDD)

3G bands: B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B8 (900)

Peak Data rate: DL 300 Mbps, UL 50 Mbps

GNSS (GPS, Glonass, Beidou, Galileo*): Qualcomm

Form factor: M.2 module, 42 x 30 x 2.3 mm

Supply Voltage: 3.3 V nominal

Operating Temperature: -40°C to +85°C

Control, Software and Features

Control options: AT Commands, QMI SDK, MBIM

For optimum control the QMI SDK is recommended

Drivers: Android, Linux, Windows

Switch networks anytime with up to three different certified firmware variants on board.

Connectors

System connector: 75/67 position M.2

Antenna RF connector: 3x IPEX MHF4 (Main RF, Aux RF, GPS with DC bias)

Interfaces

1x USB 3.0 and USB 2.0 High Speed

1x Wake host

1x Wireless disable (main RF)

1x Wireless disable (GNSS)

1x System RESET

1x Power ON/OFF

4x Antenna Control(muxed with GPIO 1-3)

3x Wireless COEX

1x Dynamic Power Control, DPR

3x Config

1x LED driver output

2x SIM interface: 1.8/3V

1x Digital Audio

Digital audio: PCM/I2S

4G: VoLTE

3G: Circuit Switched Fall Back (CSFB voice)

Material: Metal

Packing: 1 Set

Note:

1. The color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. Please refer to the actual product received.

2. Please allow slight manual measurement deviation for the data.
