Name: 20km Long Distance Range Night Vision Security Surveillance Vehicle CCTV PTZ Ip Zoom Infrared Thermal Imaging Camera
SKU: 1005010139877535
Availability: InStock

Brand Name: NoEnName_Null
Origin: Mainland China
High-concerned chemical: None
Data Storage Options: SD Card
Sensor: CMOS, 1/1.8",CMOS
Style: Pan/Tilt Camera
Model Number: ZA-PT890-4M82ZL30TM225ZW
Brand Name: New Yaan
Place of Origin: Tianjin, China
IP Rating: IP66
Lens: 13.2-1080mm
Material: Aluminum Alloy
Pixels: 4 MP
Video Compression Format: H.265
Warranty: 5 years
Product name: PTZ Ip Zoom Infrared Thermal Imaging Camera
Min. Illumination: Color : 0.002Lux @(F1.5, AGC ON ); B/W : 0.0002Lux @(F1.5, AGC ON )
Resolution: 2688 x 1520
NETD: ≤40
Video Compression: H.264 /H.265 /MPEG4 / MJPEG
Network Protocol: TCP/IP, ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS, etc
Lens focal length: 25~225mm

Friends, welcome to our store, you can tell me your specific product requirements, if you need other models of this product, please contact me, I will send the product link for your purchase! WhatsApp/WeChat: Jack +86 19074935331 (Reply within 5 minutes) Email: 3981883272@qq.com (Reply within 8 hours)

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#ffc36d;font-family:Roboto;font-size:24px;color:#ffc36d;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:0;margin-left:0;width:373px;height:373px}#detail_decorate_root .magic-4{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-5{margin-top:60px;margin-left:8px;width:369px;height:245px}#detail_decorate_root .magic-6{vertical-align:top}#detail_decorate_root .magic-7{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-8{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-9{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-10{width:750px;border-collapse:collapse}#detail_decorate_root .magic-11{min-height:28px;padding:5px 10px;width:126px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-12{min-height:28px;padding:5px 10px;width:577px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-13{overflow:hidden;width:750px;height:645.9375px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-14{margin-top:0;margin-left:0;width:750px;height:645.9375px}#detail_decorate_root .magic-15{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-16{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-17{font-size:16px}#detail_decorate_root .magic-18{overflow:hidden;width:373px;height:132.51315789473682px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-19{margin-top:0;margin-left:0;width:373px;height:132.51315789473682px}#detail_decorate_root .magic-20{overflow:hidden;width:373px;height:132px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-21{margin-top:0;margin-left:0;width:402.69565217391306px;height:132px}#detail_decorate_root .magic-22{overflow:hidden;width:750px;height:612.8571428571429px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-23{margin-top:0;margin-left:0;width:750.0000000000001px;height:612.8571428571429px}#detail_decorate_root .magic-24{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-25{font-size:20px}#detail_decorate_root .magic-26{overflow:hidden;width:750px;height:601.875px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-27{margin-top:0;margin-left:0;width:750px;height:601.875px}#detail_decorate_root .magic-28{overflow:hidden;width:750px;height:421.875px;margin-top:0;margin-bottom:4px;margin-left:0;margin-right:0}#detail_decorate_root .magic-29{margin-top:0;margin-left:0;width:750px;height:421.875px}#detail_decorate_root .magic-30{overflow:hidden;width:247.33333333333334px;height:139.12500000000003px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-31{margin-top:0;margin-left:0;width:247px;height:139px}#detail_decorate_root .magic-32{overflow:hidden;width:247.33333333333334px;height:138.18623481781378px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-33{overflow:hidden;width:750px;height:948.2142857142857px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-34{margin-top:0;margin-left:0;width:750px;height:948.2142857142857px}#detail_decorate_root .magic-35{overflow:hidden;width:247.33333333333334px;height:215.92592592592595px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-36{margin-top:0;margin-left:0;width:247px;height:215px}#detail_decorate_root .magic-37{overflow:hidden;width:247.33333333333334px;height:215.2901484480432px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-38{margin-top:0;margin-left:0;width:247px;height:222px}#detail_decorate_root .magic-39{margin-top:0;margin-left:0;width:247px;height:262px}#detail_decorate_root .magic-40{overflow:hidden;width:247.33333333333334px;height:185.5px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-41{margin-top:0;margin-left:0;width:247px;height:185px}#detail_decorate_root .magic-42{overflow:hidden;width:247.33333333333334px;height:185.2496626180837px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-43{overflow:hidden;width:750px;height:379.2067307692308px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-44{margin-top:0;margin-left:0;width:750px;height:379.2067307692308px}#detail_decorate_root .magic-45{overflow:hidden;width:750px;height:945px;margin-top:0;margin-bottom:4px;margin-left:0;margin-right:0}#detail_decorate_root .magic-46{margin-top:0;margin-left:0;width:750px;height:945px}#detail_decorate_root .magic-47{overflow:hidden;width:373px;height:266.3833757421544px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-48{margin-top:0;margin-left:0;width:373.00000000000006px;height:266.3833757421544px}#detail_decorate_root .magic-49{overflow:hidden;width:373px;height:266px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-50{margin-top:0;margin-left:0;width:373px;height:266.42857142857144px}#detail_decorate_root .magic-51{font-size:22px}#detail_decorate_root .magic-52{overflow:hidden;width:750px;height:558px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-53{margin-top:0;margin-left:0;width:750px;height:558px}#detail_decorate_root .magic-54{margin-bottom:10px;overflow:hidden}

Product Paramenters

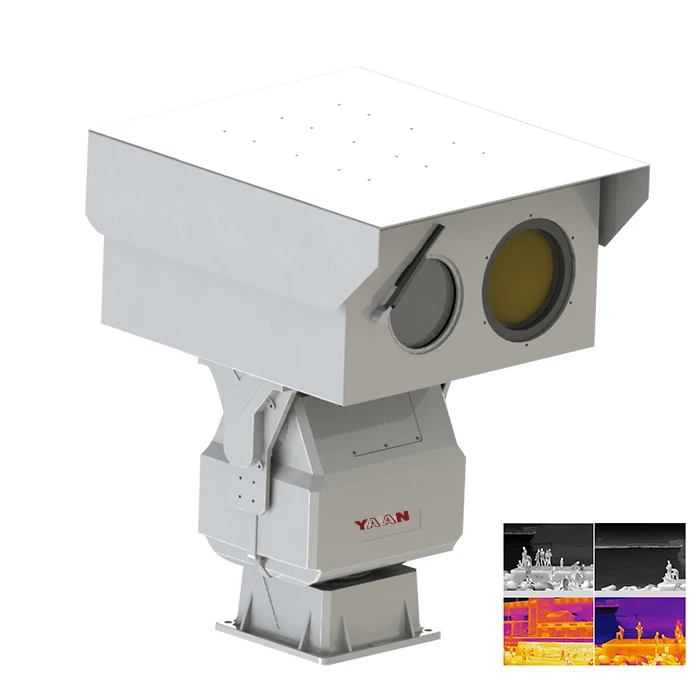

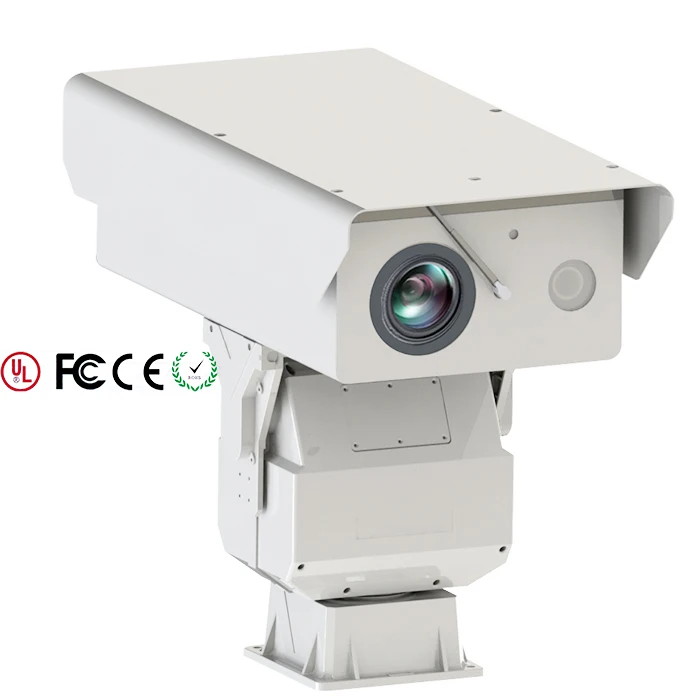

Product Features (PTZ Ip Zoom Infrared Thermal Imaging Camera)
1. Ultra-HD Imaging & Thermal Sensing Visible Light Camera:

* 1080P Full HD via 1/2.8″ CMOS, with ultra-low light sensitivity (0.002Lux color/0.0002Lux B/W).
* 60X optical zoom (16.7-1000mm) for detailed long-range monitoring.

Thermal Camera:
* 640×512 resolution (384×288 optional) with ≤40mK NETD, ideal for thermal PTZ cameras long range applications in low-light or no-light conditions.
* 150mm focal length ensures clear thermal imaging at extended distances.

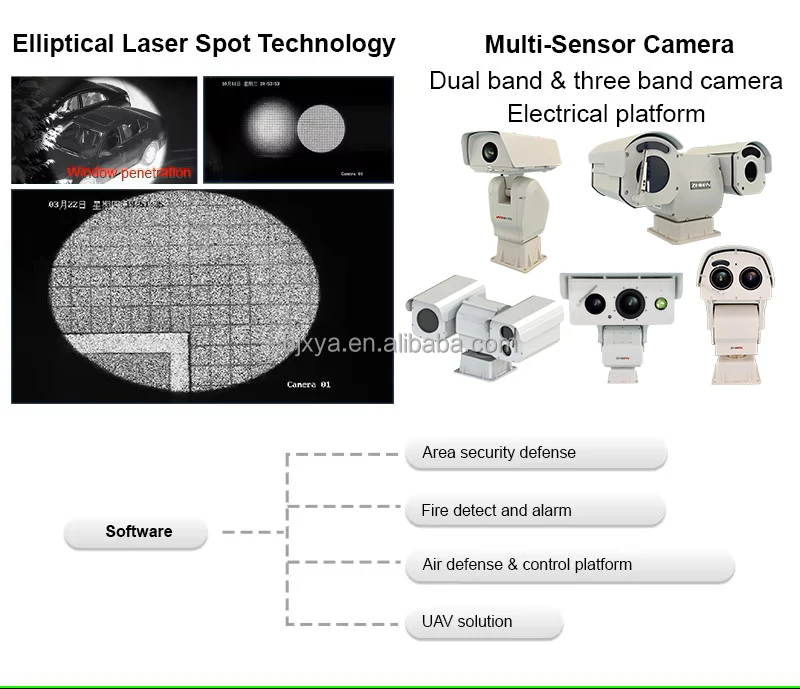

2. 4000m Laser Illumination System
* 25W 808nm laser with 4000m effective distance enables 0Lux night vision, making this thermal PTZ cameras long range solution
perfect for 24/7 surveillance.
* Synchronized zoom laser with mixed-mode uniform light technology eliminates speckle/dark rings for consistent clarity.
3. Precision Pan-Tilt Performance
* 360° continuous pan & -45°~+45° tilt with auto-speed adjustment (15°/s pan, 7°/s tilt).
* ±0.1° preset accuracy across 200 presets, supported by double-pitch worm gear drive for vibration-free stability.
4. Industrial-Grade Environmental Resistance
* IP66 waterproof/dustproof, -35℃~+65℃ operation, and 48-hour salt fog resistance (PH 6.5-7.2).
* 4000V EMC protection suitable for harsh outdoor environments like maritime or industrial sites.

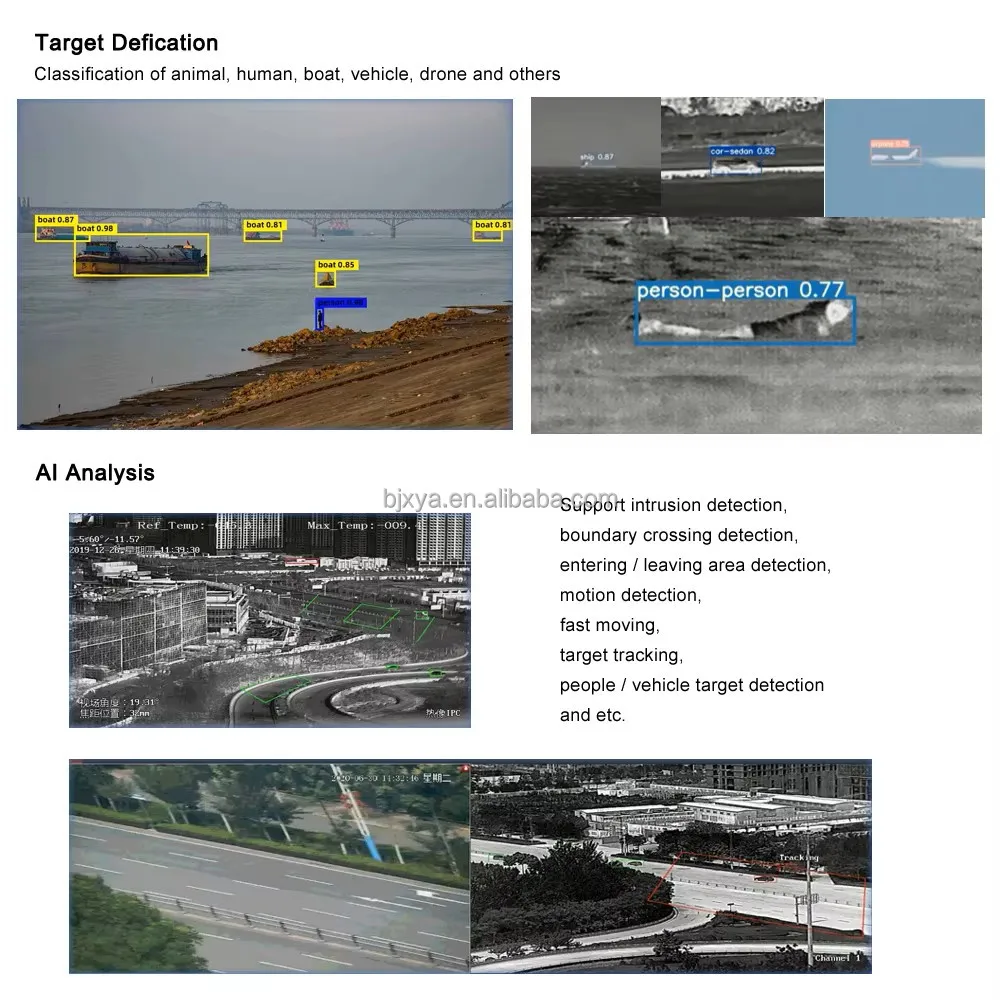

5. Intelligent Surveillance Functions
* Built-in AI analysis: region intrusion, electronic defogging, and image enhancement.
* 265/H.264 compression, ONVIF/GB28181 compliance, and local SD card storage for seamless integration.

Key Highlights
60X Zoom • 640×512 Thermal • 4000m Laser • ±0.1° Accuracy • IP66 • Wide Temperature • PTZ Ip Zoom Infrared Thermal Imaging Camera

Model	ZA-P890-60ZL40TM150W
Day Camera
Sensor	1/2.8 ”，CMOS
Resolution	1920 x 1080
Min. Illumination	Color : 0.002Lux @(F1.2, AGC ON ); B/W : 0.0002Lux @(F1.2, AGC ON )
Focal Length	16.7-1000mm
Optical zoom	60X
Other function	Support area intrusion , cross- boarder intrusion , electronic defog , auto white balance , BLC , HLC , 3D noise reduction ,
Thermal Camera
Resolution	640 x 512 ( 384 x 288 optional )
Spatial range	17 um
NETD	≤40
Focal length	150mm
Focus mode	Auto/ manual
Laser
Power Consumption	25W
Wave Length	808nm
Effective Distance	4000 meters
Pan tilt
Rotation Angle	Pan : 360° continuous rotation ;Tilt: -45° ~ +45° ;
Rotation Speed	Pan : 0.01 ～15°/S ;Tilt : 0.01～7°/S ;
Preset Accuracy	±0.1°
Preset Position	200
Scan Mode	Cruise scan/auto scan
Angle Return	Support angle return by query command or real time angle return
Network
Video Compression	H.264 /H.265 /MPEG4 / MJPEG
Audio Compression	64kbps(G.711) 16kbps(G.272.1)/16kbps(G.276)/32-192kbps(G.MP2L2)/16-64kbps (AAC)
Network Protocol	TCP/IP, ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS, etc
Access Standard	ONVIF, GB28181
Storage	Support SD card
General
Input Voltage	DC48V ±10%, ;
Power Consumption	250W
Operating Temperature	-35℃ ~ +65℃ ,
Humidity	<90%RH，
Waterproof	IP66
EMC	Power：4000V ； signal： 2000V (line to ground 2000V, line to line 1000V)
Salt fog resistance	PH 6.5～7.2 ，continuous spraying 48 hours

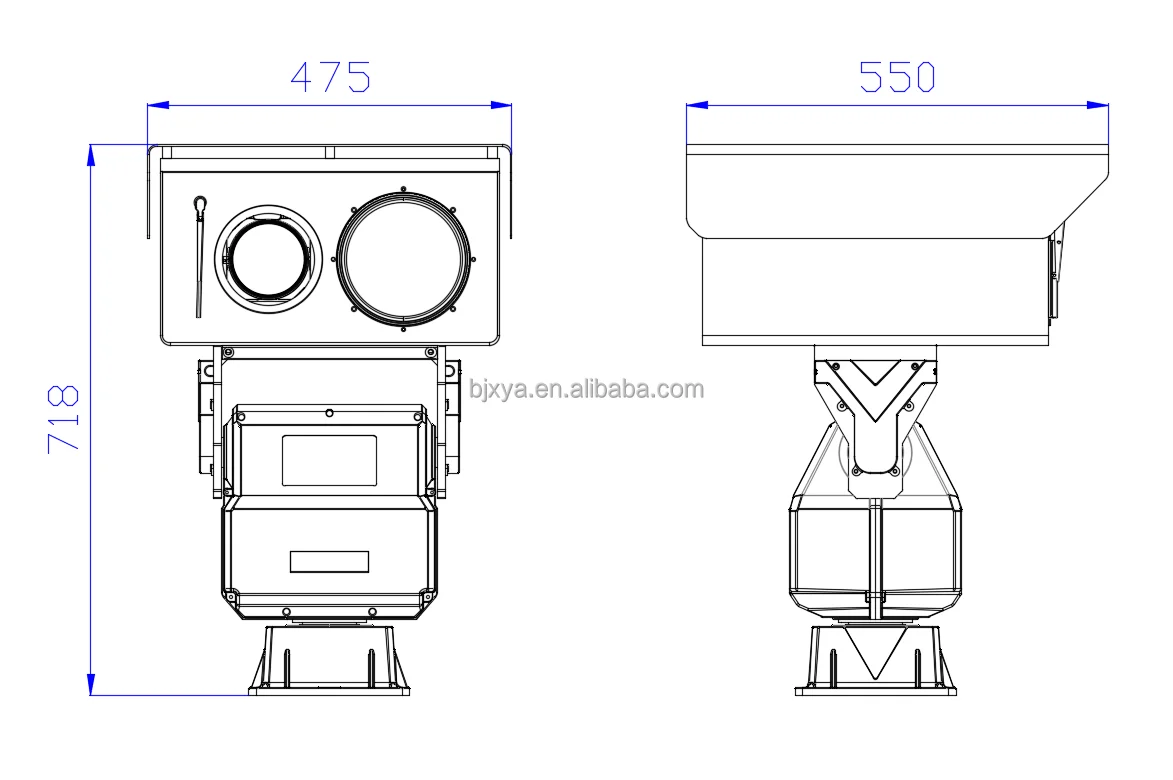

Weight	< 45kg

Products Description

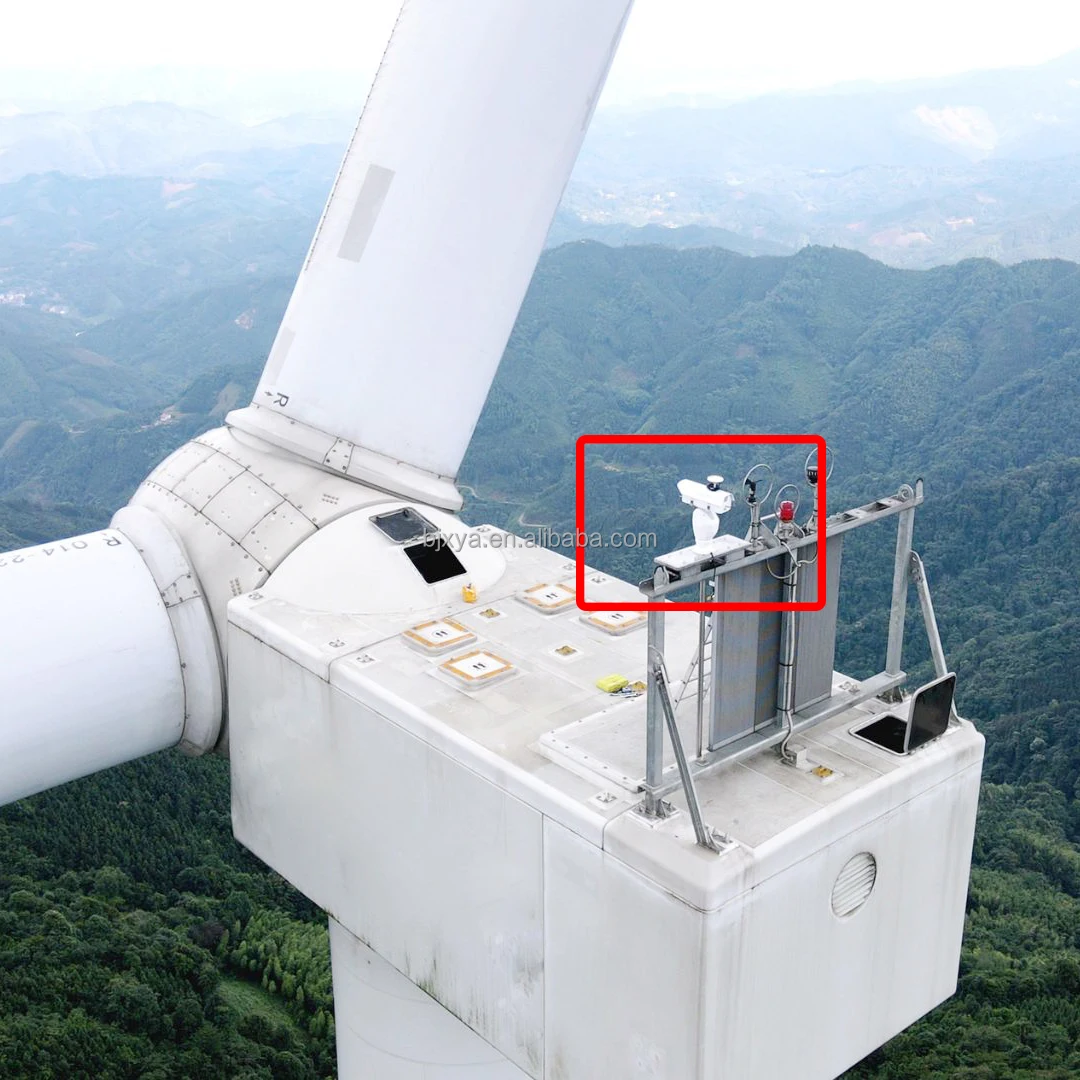

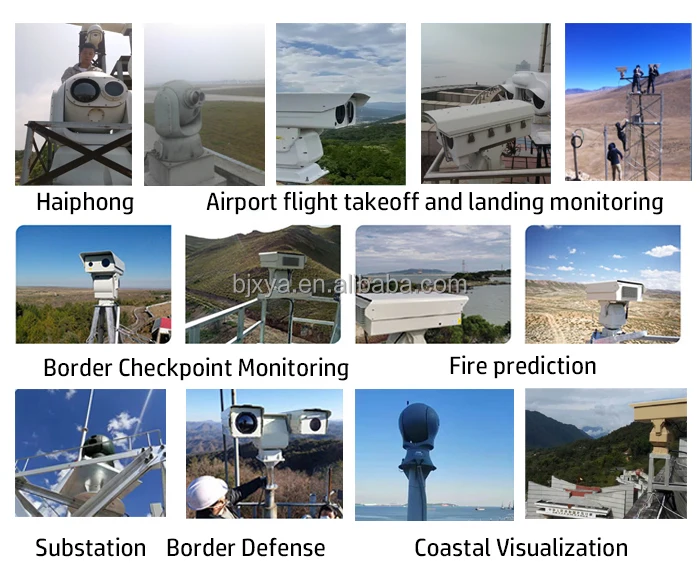

Application Areas

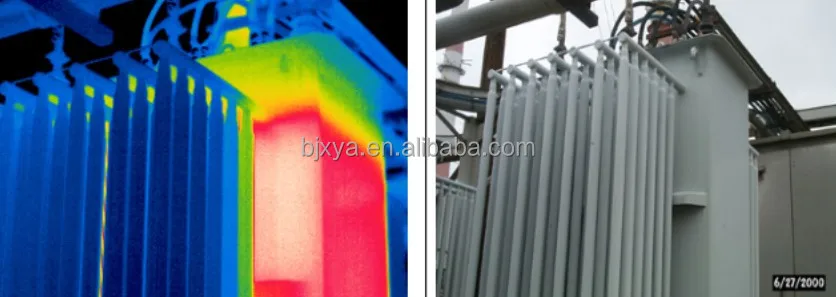

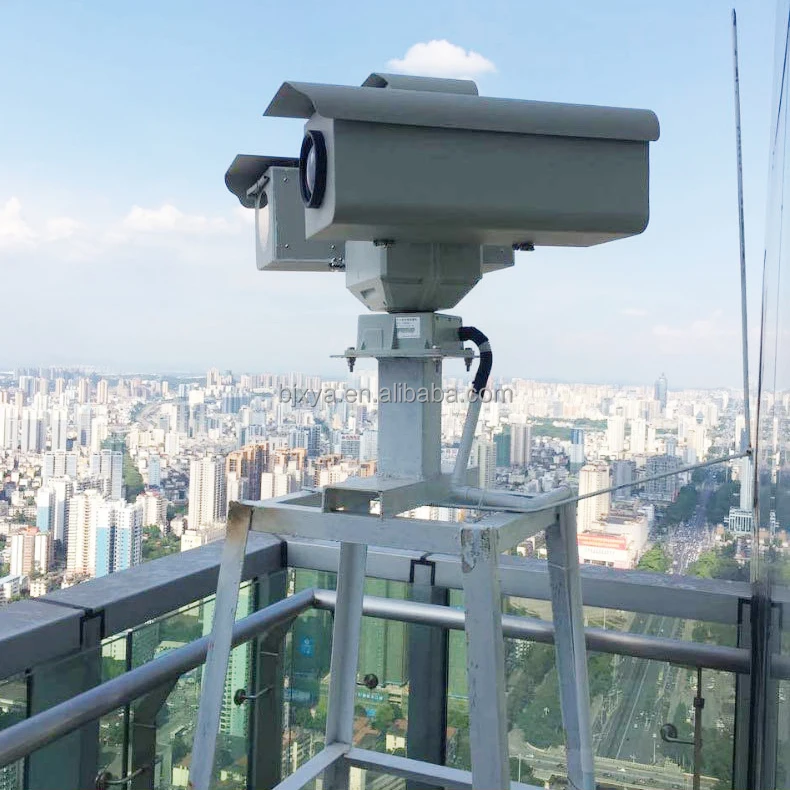

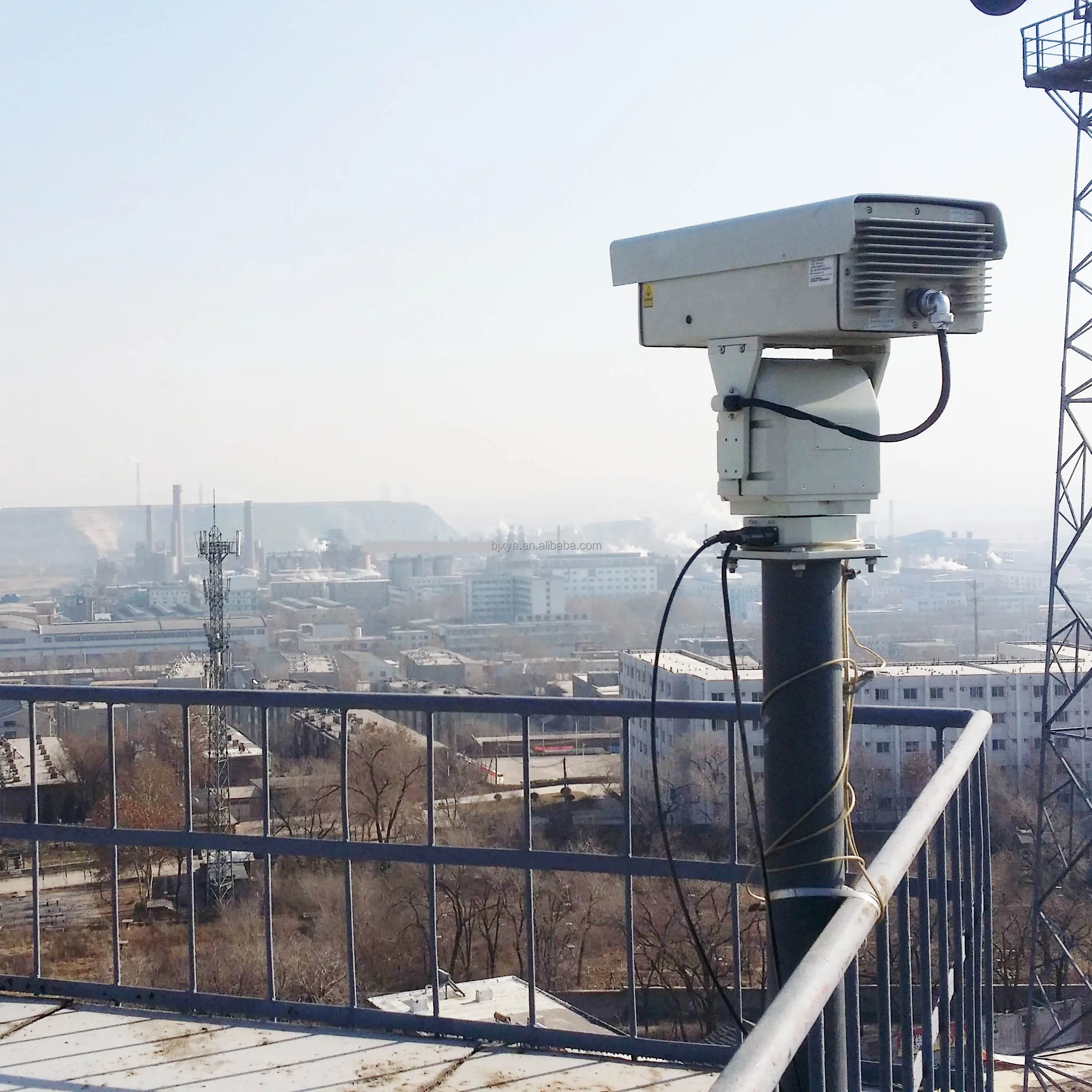

Widely applied in security scenarios: night surveillance, fire prevention, personnel flow analysis,
border/military/road/square/factory monitoring, parking lots, and perimeter protection. Specialized uses cover railway lines,large venues, coastal/shipborne/airport coastal defense, petrochemical/natural gas sites, ports, vehicle-mounted systems, andshipboard monitoring.

Certifications & Proven Performance:

Holding CE/FCC/ONVIF certifications and compliant with EU RoHS standards, our solution undergoes rigorous side-by-side testing with Honeywell and Axis in identical scenarios—delivering a 30% higher cost-performance ratio.

Field-Proven Reliability:

* Deployed for 200km border surveillance in China, ensuring seamless coverage across rugged terrains.

* Trusted by a Middle Eastern oil base for 3 consecutive years with zero downtime, even in harsh industrial environments.

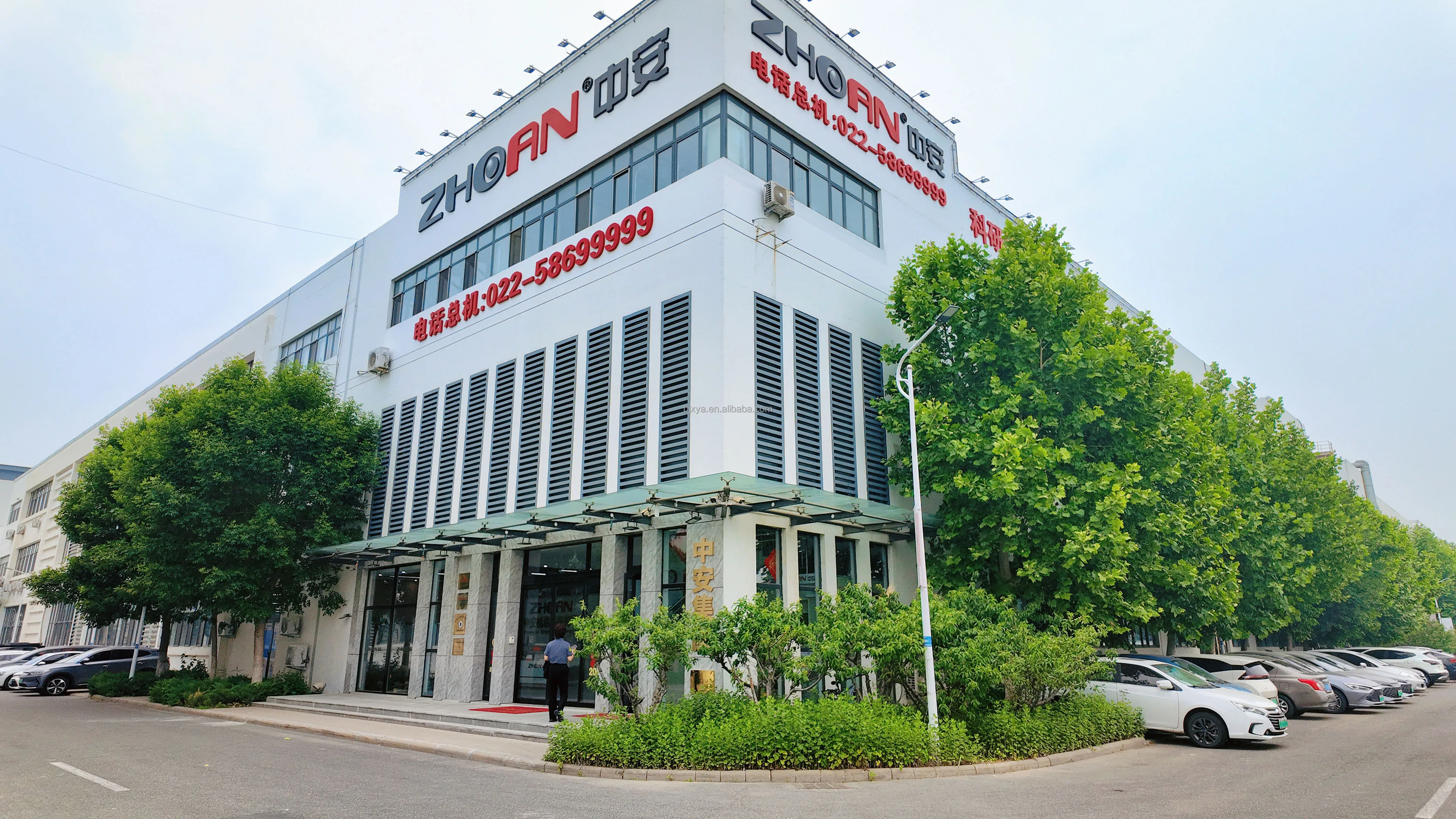

Company Profile

As a National High – tech Enterprise, Tianjin Xinyaan Technology Co., Ltd. (Tianjin Zhongan Video Technology CO., LTD). integrates R&D, manufacturing, sales, and services in the security industry. Specializing in pan – tilt technology, we focus on advanced applications like radar detection and multi – spectral recognition.
With 25 years of R&D experience, we lead in PTZ control, holding nearly 100 patents and over 120 software copyrights. Our expertise in servo and gyro – stabilized imaging enables high – end, customized security products for extreme environments.
Our products range from explosion – proof cameras to integrated management platforms. Serving sectors like military – civilian integration, petrochemical, and smart cities, we offer one – stop procurement.
Renowned for quality, we’ve won top honors:
* Awards: China’s Top 10 Security Brands (multiple categories) and the SPSE Golden Tripod Award.

* Certifications: ISO 9001, 14001, 45001, and military – civilian security enterprise qualification.

* Memberships: Key roles in industry associations.

Committed to tailored solutions, we’re a global leader in intelligent pan – tilt systems.

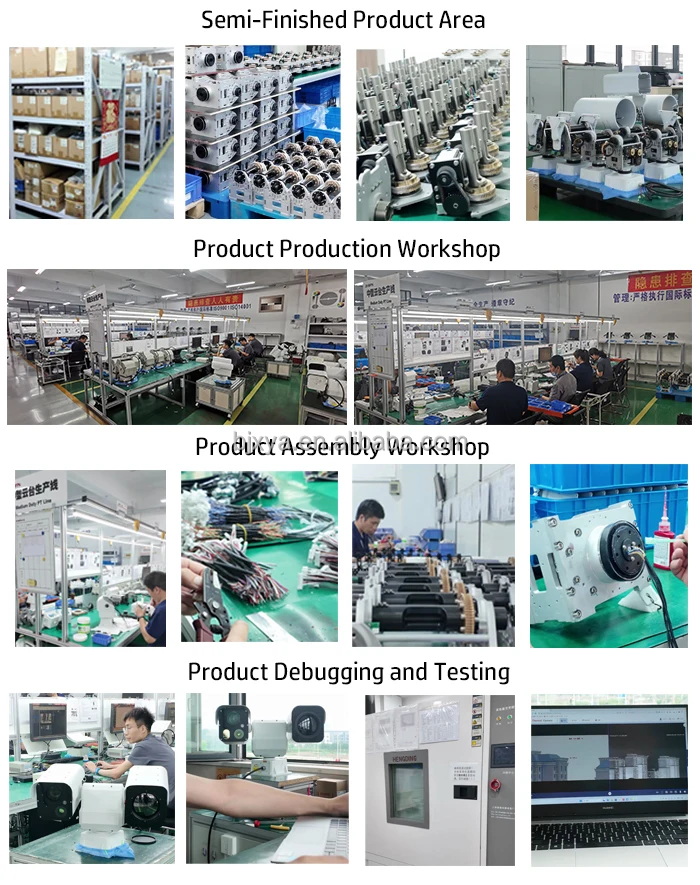

Manufacturing Technique

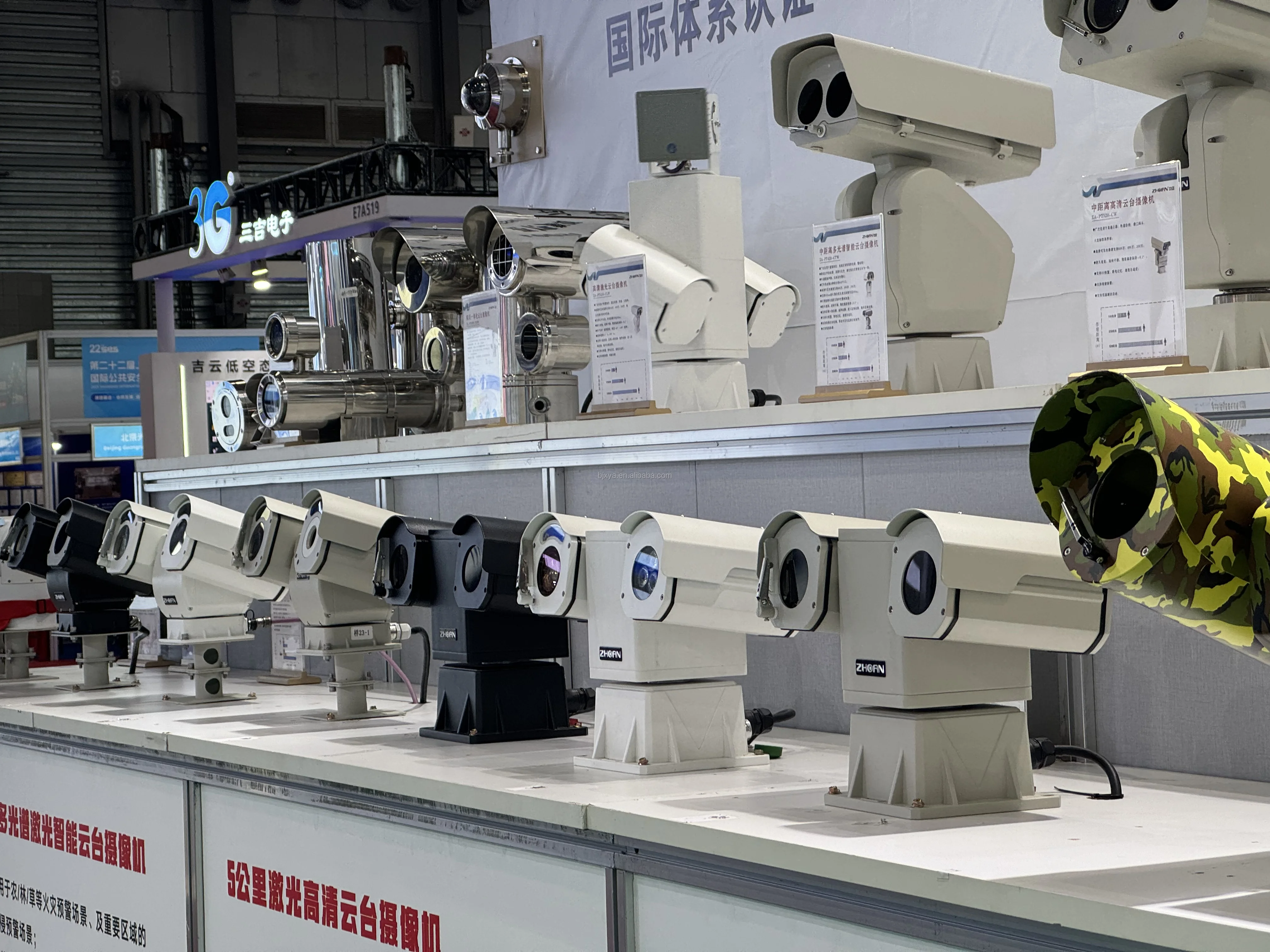

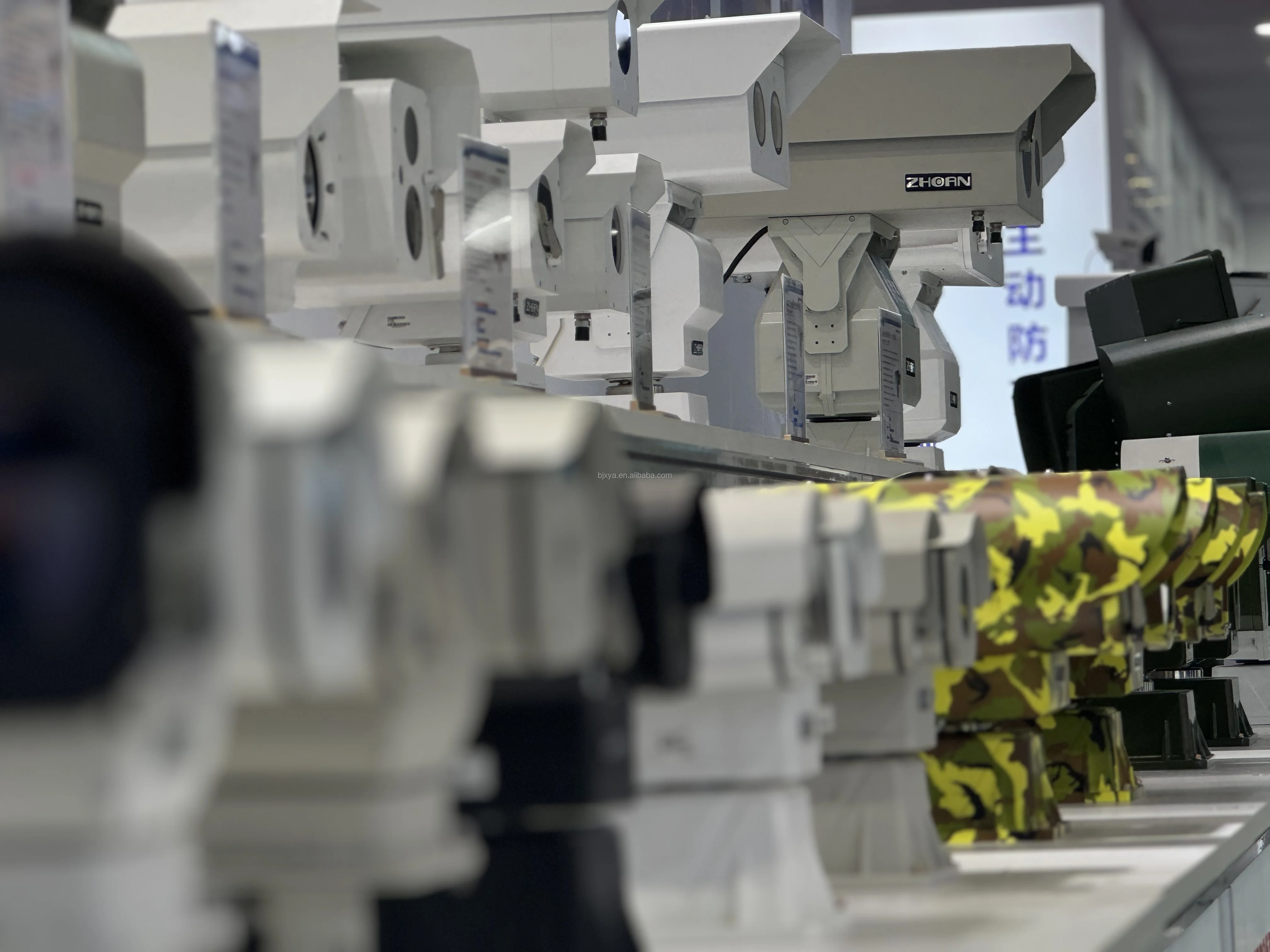

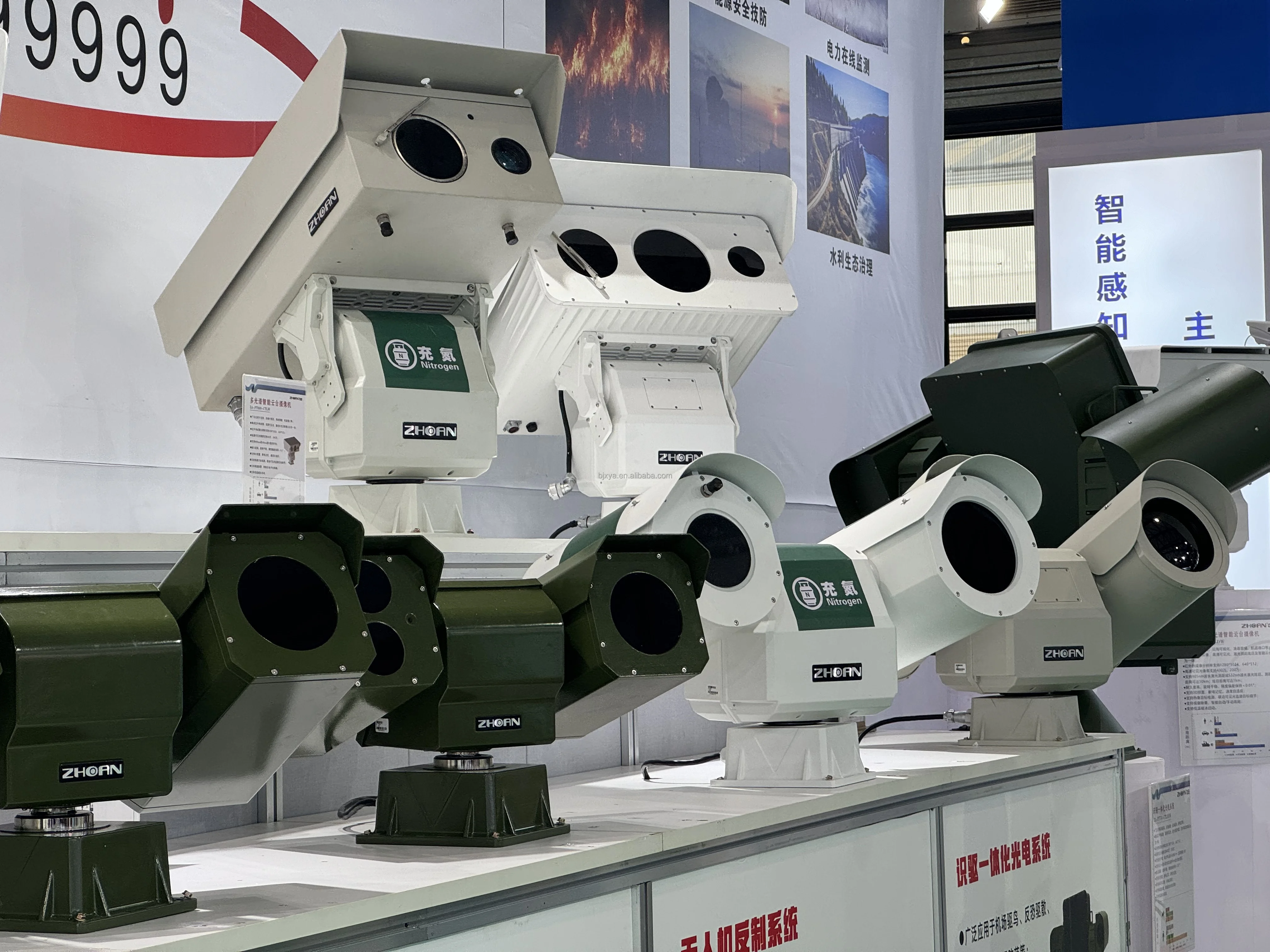

Exhibition

Our Advantages

With 25 years of in – depth expertise in the security industry, Tianjin Xinyaan Technology Co., Ltd. is your trusted partner for high – quality yet cost – effective security solutions. Whether you require a single unit or an order of 100 pieces, our dedicated team is ready to craft a fully customized solution tailored precisely to your needs.

What sets us apart? Our unbeatable 5 – year warranty ensures long – term peace of mind, safeguarding your investment. We don’t offer one – size – fits – all products; instead, we analyze your unique application field and industry requirements to design a detailed, comprehensive solution. From military – civilian integration projects to petrochemical security setups, our approach combines technical excellence with industry – specific insights.

Ready to elevate your security infrastructure? Send us an inquiry today, and let’s transform yourvision into a high – performance, reliable security solution.

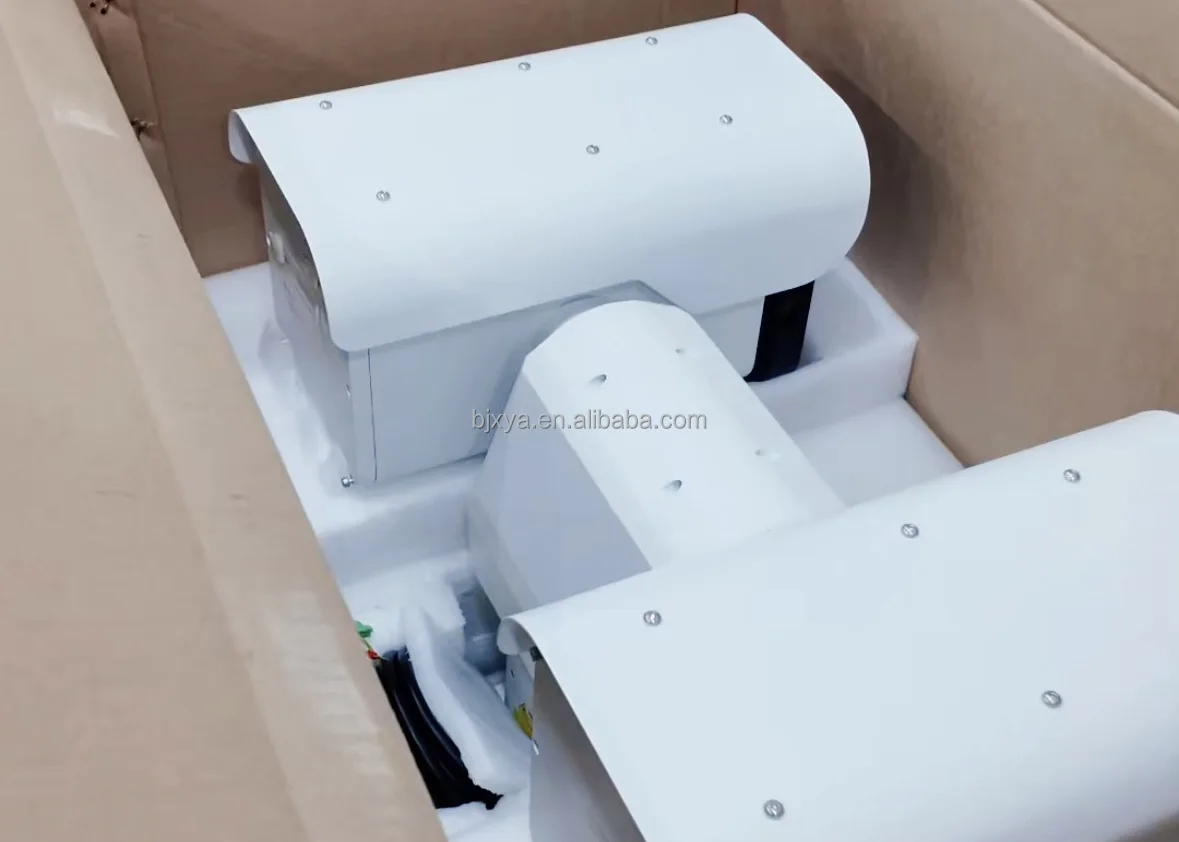

Logistics Information

We provide flexible shipping method according to the quantity customers order, but we can help with sea or land transporta tion if you order mass quantity.

FAQ

1.Same price, best quality

The company has been a supplier of security equipment in China, we have served our suppliers for more than 20 years, we can provide your security equipment and most of the accessories you need, the same price, the best quality, I assure you.

2. What payment methods do you accept?

We can usually use T/T or L/C, and sometimes DP. (1) T/T, 30% deposit in advance, 70% balance to be paid before shipment, long-term customers can present the original copy of the bill of lading. (2) L/C, 100% irrevocable L/C without “soft clauses” from an internationally recognized bank is acceptable. Please ask the sales manager you work with for advice.

3. Which Incoterms 2010 clauses can you use?

We are a professional and well-established international player that can handle all INCOTERMS 2010, we usually work on
conventional terms such as FOB, CFR, CIF, CIP, DAP.

4. How long is your price valid?

We are a gentle and friendly supplier and never seek excessive profits. Our prices remain basically stable throughout the year. We will only adjust prices based on the following two situations: (1) The US dollar exchange rate: the RMB exchange rate varies greatly according to international currency exchange rates; (2) The manufacturer/factory adjusts the machine price due to an increase in labor costs or raw material costs.

5. What logistics methods can you use for transportation?

We can transport security equipment by various means of transport. (1) 80% of our shipments will be by sea, to all major
continents, such as Africa, South America, the Middle East. (2) To China’s inland neighboring countries, such as Russia, Mongolia, Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan, Turkmenistan, etc., we can transport by road or rail. (3) For urgently needed light spare parts, we can use international express services such as DHL, TNT, UPS, Fedex, etc.

6. How about the delivery time?

Normally, we can deliver normal products to our customers immediately within 15 days, if the mass production order equipment needs more than 30 days.

7.How soon can you respond to customer inquiries?

Our team is made up of a group of hardworking and energetic people, working around the clock to respond to customer inquiries and questions at any time. Most issues can be successfully resolved within 8 hours

8.Your kindly advice

If you still don’t want to choose us after reading the details page, please let us know why. We are very willing to improve and do better to help more customers like you. Even a small suggestion will make a big difference.
