All In One 3.5kw Solar Inverter With MPPT Off Grid Solar Inverter For Home Use Best Solar Inverters From China Manufacturer
Original price was: د.إ3,041.06.د.إ2,414.63Current price is: د.إ2,414.63.
(In Stock)
- High-concerned chemical: None
- Is Smart Device: Yes
- Origin: Mainland China
- Certification: CE
- Free installation service: NO
- Place of Origin: Anhui, China
- Brand Name: Bluesun
- Model Number: BSM-3500LV-24DA
- Application: Home
- Solar Panel Type: Monocrystalline Silicon, Polycrystalline Silicon
- Battery Type: Lead-Acid, Lithium Ion
- Controller Type: MPPT
- Mounting Type: Roof Mounting
- Load Power (W): 3KW
- Output Voltage (V): 220/230/240v
- Output Frequency: 50/60hz
- Work Time (h): 24
- Pre-sales project design: Y
- Product name: 3.5kw off grid inverter
- Keyword: off grid inverter
- Type: AC Inverters
- Battery: Customzied
- Battery Voltage: 24Vdc
- Solar Charge Type: MPPT
- Dimension: 482*290*113mm
- Net Weight: 10kg
- Technical Support: all time online and offline
- Usage: solar system
Products Description

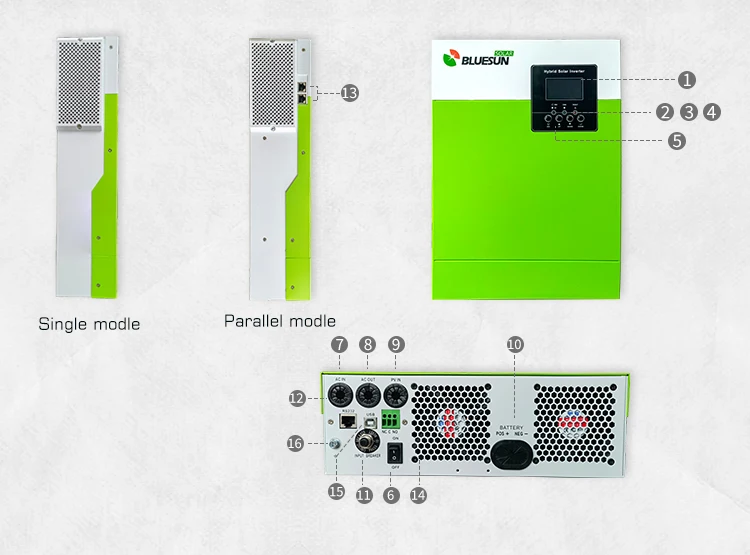

Product Overview
|
1
|
LCD display
|
9
|
PV input
|
|
2
|
Status indicator
|
10
|
Battery input
|
|
3
|
Charging indicator
|
11
|
Circuit breaker
|
|
4
|
Fault indicator
|
12
|
RS232 communication port
|
|
5
|
Function buttons
|
13
|
Parallel communication port (only for parallel model)
|
|
6
|
Power on/off switch
|
14
|
Dry contact (Optional)
|
|
7
|
AC input
|
15
|
USB communication port (Optional)
|
|
8
|
AC output
|
16
|
Grounding
|
NOTE: For parallel model installation and operation, please check the parallel installation guide for the details.
Technical Specifications
|
MODEL
|
BSM-3500LV-24
|
BSM-5500LV-48
|
||
|
Rated Power
|
3500VA/3500W
|
5500VA/5500W
|
||
|
INPUT
|
||||
|
Voltage
|
230VAC
|
|||
|
Selectable Voltage Range
|
170-280VAC(for personal computers) 90-280VAC(for home appliances)
|
|||
|
Frequency Range
|
50Hz/60Hz (Auto sensing)
|
|||
|
OUTPUT
|
||||
|
AC Voltage Regulation (Batt.Mode)
|
230VAC±5%
|
|||
|
Surge power
|
7000VA
|
11000VA
|
||
|
Efficiency(Peak) PV to INV
|
97%
|
|||
|
Efficiency(Peak) BAT to INV
|
94%
|
|||
|
Transfer Time
|
10ms (for personal computers) 20ms (for home appliances)
|
|||
|
Wave form
|
Pure Sine Wave
|
|||
|
BATTERY & AC CHARGER
|
||||
|
Battery Voltage
|
24VDC
|
48VDC
|
||
|
Floating Charge Voltage
|
27VDC
|
54VDC
|
||
|
Overcharge Protection
|
33VDC
|
63VDC
|
||
|
Maximum charge current
|
80A
|
80A
|
||
|
SOLAR CHARGER
|
||||
|
MAX.PV Array Power
|
5000W
|
6000W
|
||
|
MPPT Range@ Operating Voltage
|
120-450VDC
|
|||
|
Maximum PV Array Open Circuit Voltage
|
500VDC
|
|||
|
Maximum Charging Current
|
100A
|
|||
|
Maximum Efficiency
|
98%
|
|||
|
PHYSICAL
|
||||
|
Dimension.D*W*H(mm)
|
440*300*100
|
|||
|
Net Weight (kgs)
|
11kg
|
12kg
|
||
|
Communication Interface
|
USB/RS232(Standard) GPRS/WIFI(Optional)
|
|||
|
OPERATING ENVIRONMENT
|
||||
|
Humidity
|
5% to 95% Relative Humidity(Non-condensing)
|
|||
|
Operating Temperature Storage
|
0°C to 55°C
|
|||
|
Temperature
|
-15°C to 60°C
|
|||
Product Packaging
In Well Carton Box with Pallet Pack Bluesun Will Design and Advise Your Final Pack Measurements on Your Order. BSM-3500LV-24 : 40pcs/pallet,BSM-5500LV-48锛� 40pcs/pallet

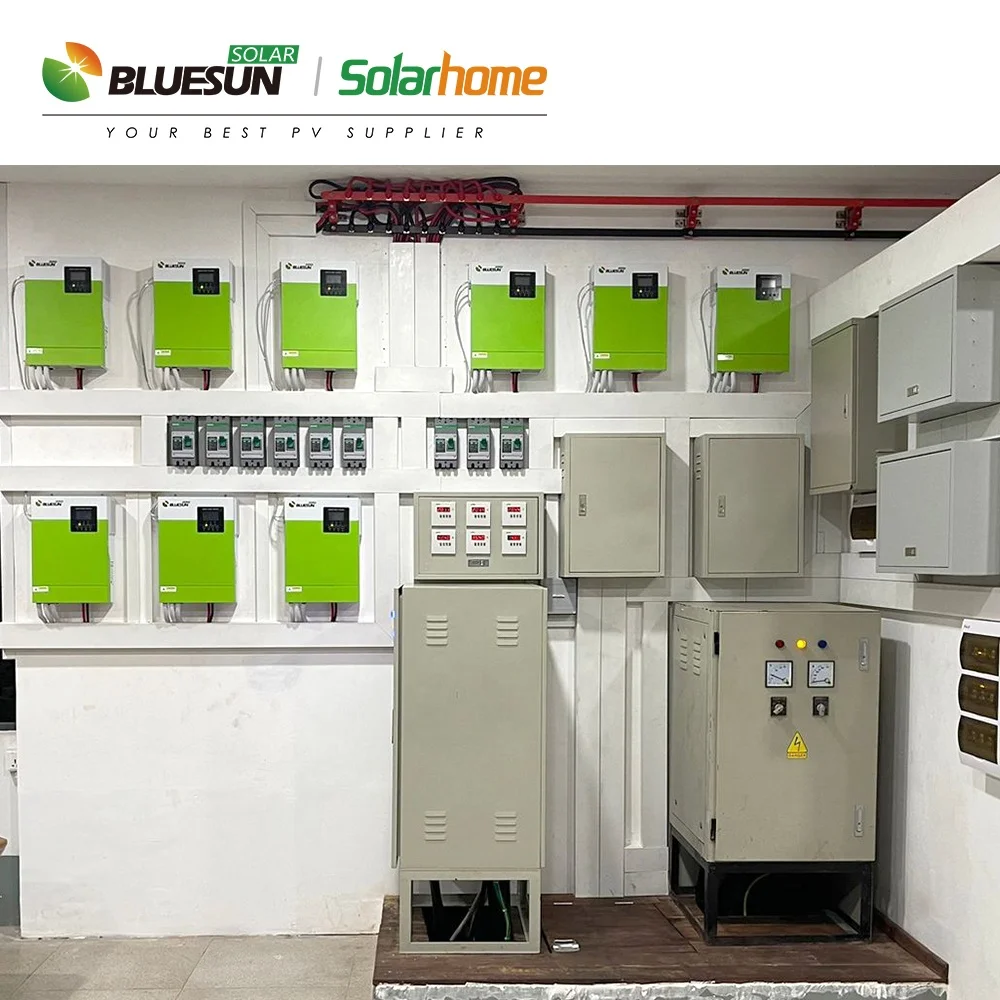

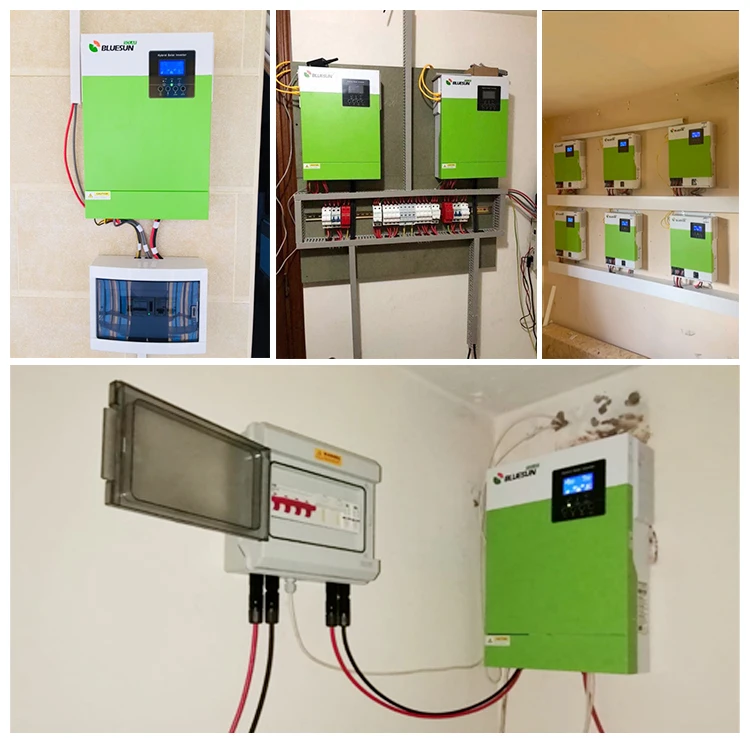

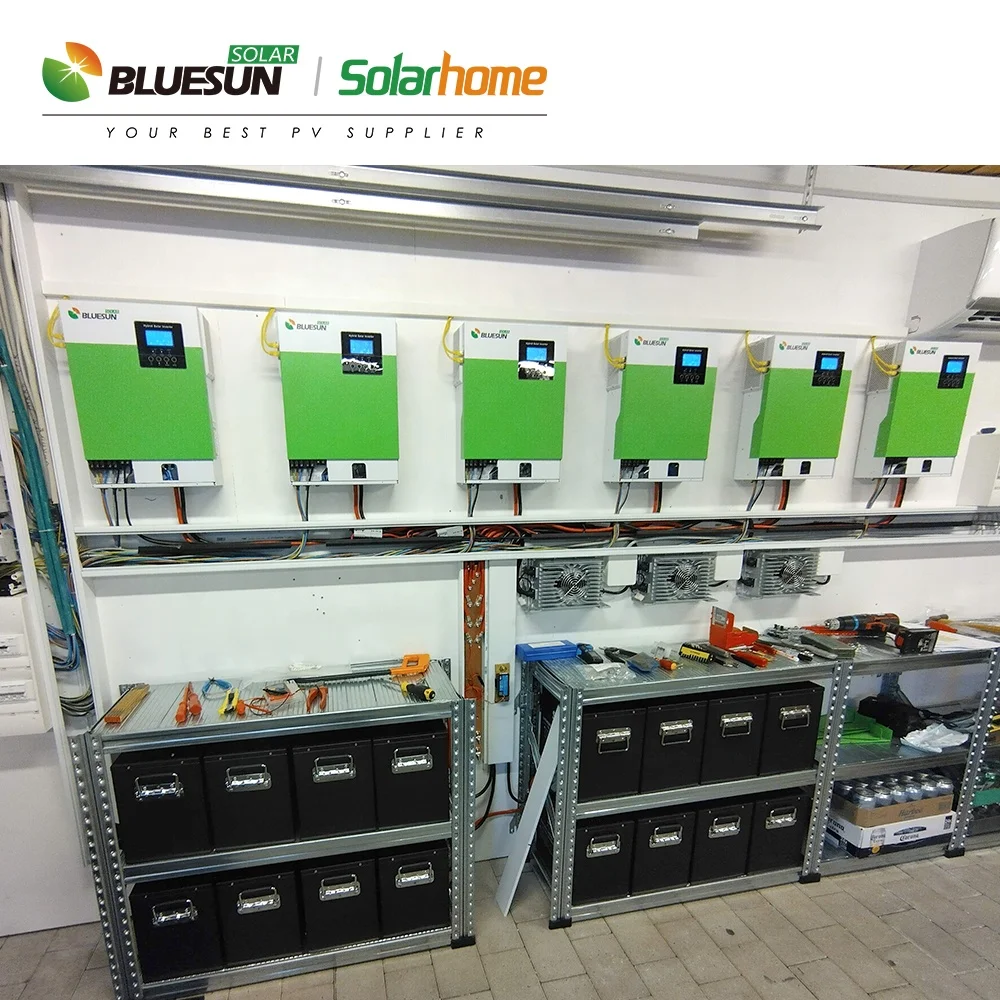

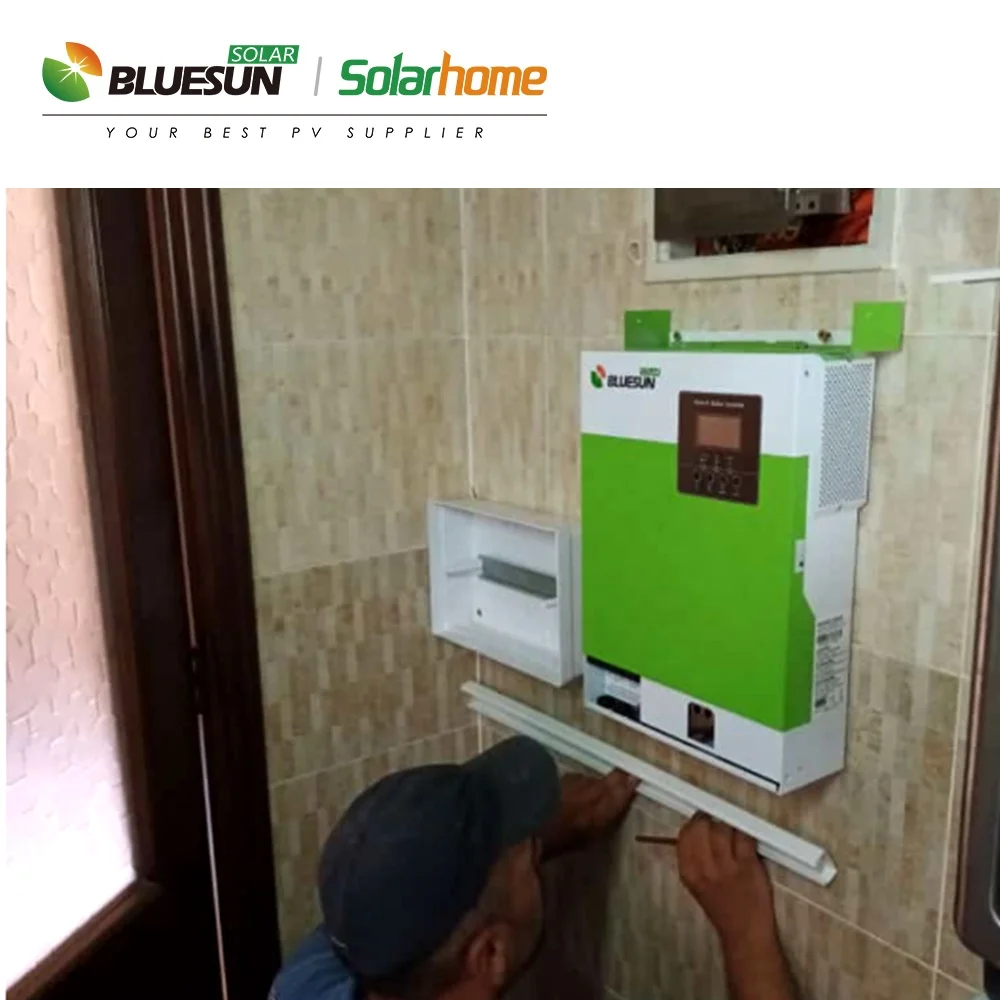

Our Project
