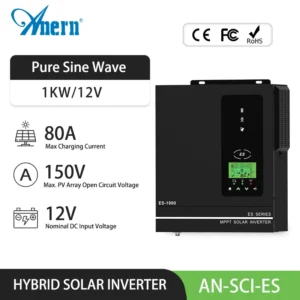

Anern 1KW 1.5KW 1.6KW 3KW Hybrid Solar Inverter 12V 24V 220V MPPT 80A Off Grid Inverters Pure Sine Wave
Price range: د.إ909.20 through د.إ1,182.57
- High-concerned chemical: None
- Model Number: AN-SCI-ES
- Size: 286X240X91/ 357X273X95
- Output Type: SINGLE
- Weight: 3/3.5/4.4/5.4kg
- Brand Name: ANERN
- Output Frequency: 50HZ
- Origin: Mainland China
INTRODUCTION

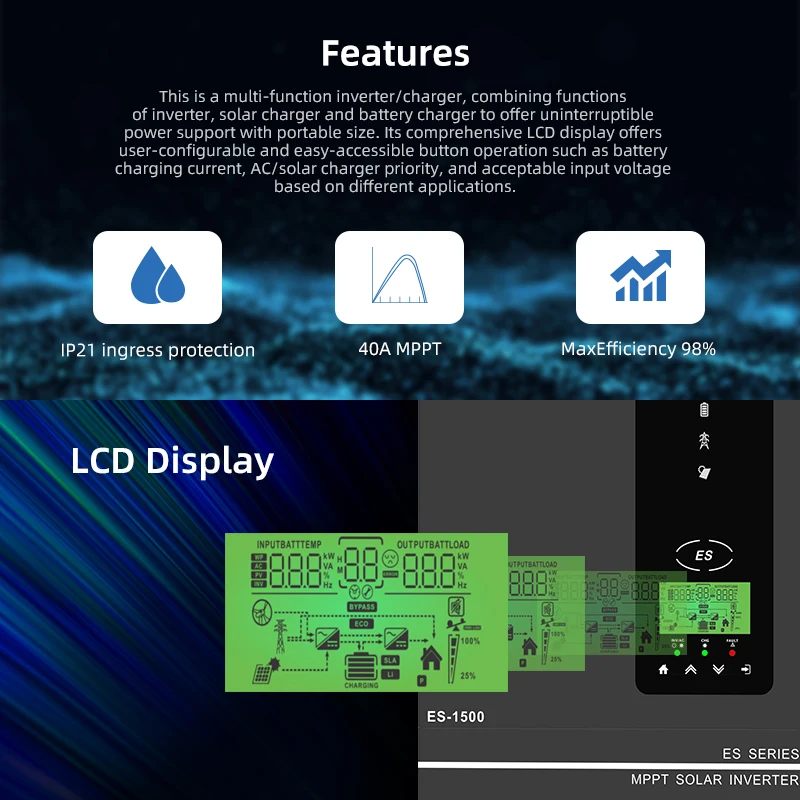

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-confiqurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
|
Model |
AN-SCI-ES-1000 |
AN-SCI-ES-1500 |
|
RATED POWER |
1000W/1000VA |
1500W/1500VA |
|
AC INPUT |
||
|
Voltage |
230VAC |
|
|
Selectable Voltage Range |
170-280VAC(For Personal Computers) |
|
|
90-280VAC(For Home Appliances) |
||
|
Frequency Range |
50 Hz/60Hz(Auto sensing) |
|
|
AC OUTPUT |
||
|
AC Voltage Regulation |
230VAC±5% |
|
|
Surge Power |
2000VA |
3000VA |
|
Efficiency(Peak)PV to INV |
98% |
|
|
Efficiency(Peak)Battery to INV |
94% |
|
|
Transfer Time |
10 ms (For Personal Computers);20 ms (For Home Appliances) |
|
|
BATTERY & AC CHARGER |
||
|
Battery Voltage |
12VDC |
24VDC |
|
Floating Charge Voltage |
13.5VDC |
27VDC |
|
Overcharge Protection |
16VDC |
32VDC |
|
Maximum AC Charge Current |
40A |
|
|
SOLAR CHARGER |
||
|
Maximum PV Array Power |
600W |
1200W |
|
MPPT Range @ Operating Voltage |
20-150VDC |
30-150VDC |
|
Maximum PV Array Open Circuit Voltage |
150VDC |
|
|
Maximum Solar Charging Current |
40A |
|
|
Maximum (AC+Solar) Charging Current |
80A |
|
|
PHYSICAL |
||
|
Dimension,D*W*H(mm) |
286*240*91 |
|
|
Cartoon Dimension,D*W*H(mm) |
335*295*145 |
|
|
Net Weight(kgs) |
3 |
3.5 |
|
Gross Weight(kgs) |
3.5 |
4 |

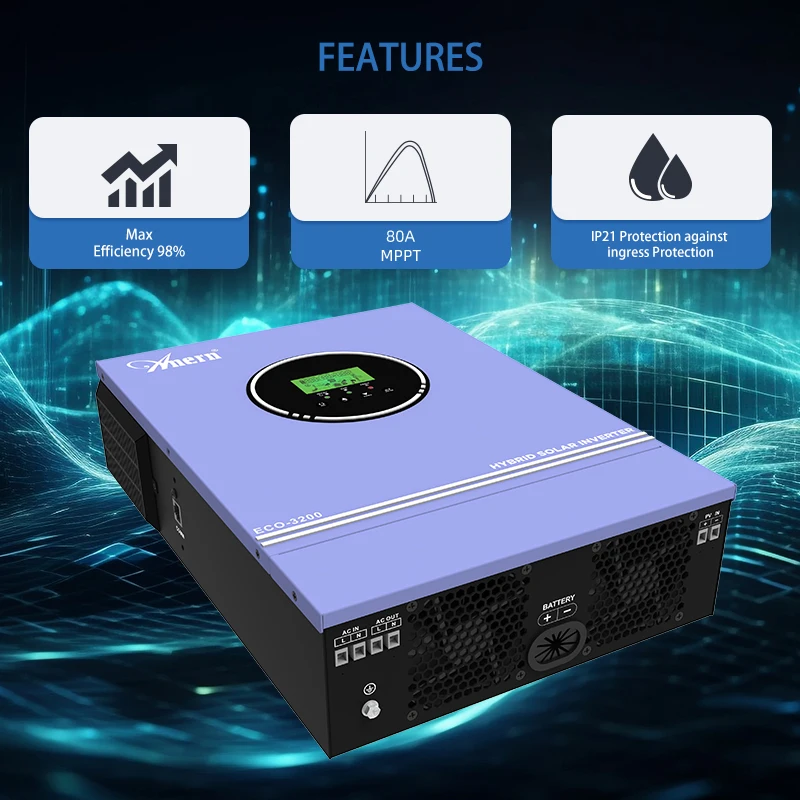

Features of Module
|

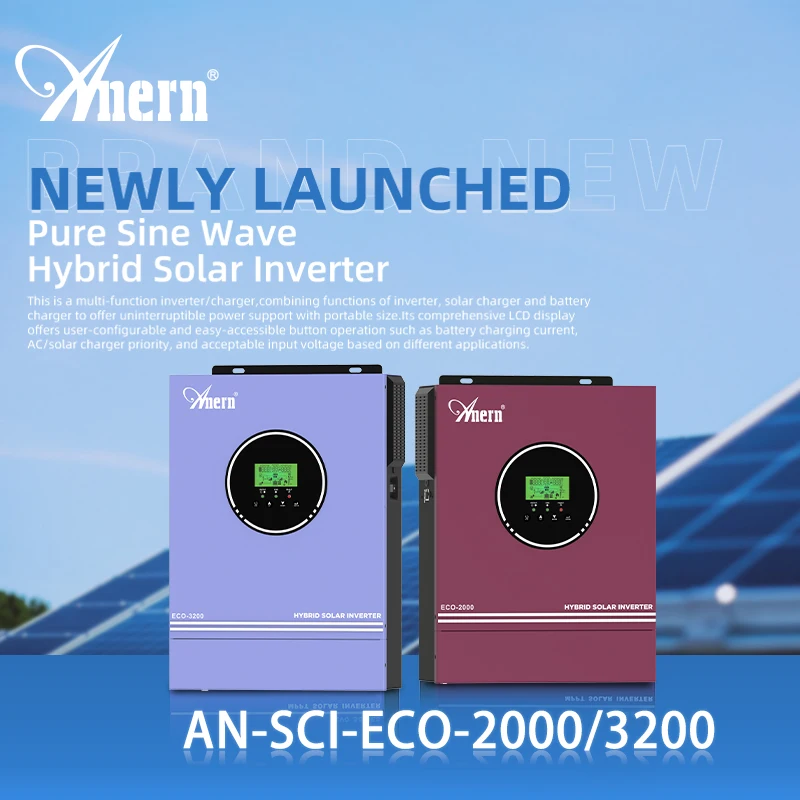

Model |
SCI-ECO-2000 |
SCI-ECO-3200 |
|
|
RATED POWER |
2000VA/1600W |
3200VA/3000W |
|
|
AC INPUT |
|||
|
AC Input Voltage |
230VAC |
||
|
Selectable Voltage Range |
170-280 VAC (For Personal Computers) |
||
|
90-280 VAC (For Home Appliances) |
|||
|
Frequency Range |
50 Hz/60 Hz (Auto sensing) |
||
|
AC OUTPUT |
|||
|
AC Voltage Regulation (Batt. Mode) |
230VAC ± 5% |
||
|
Surge Power |
4000VA |
6400VA |
|
|
Efficiency (Peak) PV to Inverter |
98% |
||
|
Efficiency (Peak) Battery to Inverter |
94% |
||
|
Transfer Time |
10 ms (For Personal Computers);20 ms (For Home Appliances) |
||
|

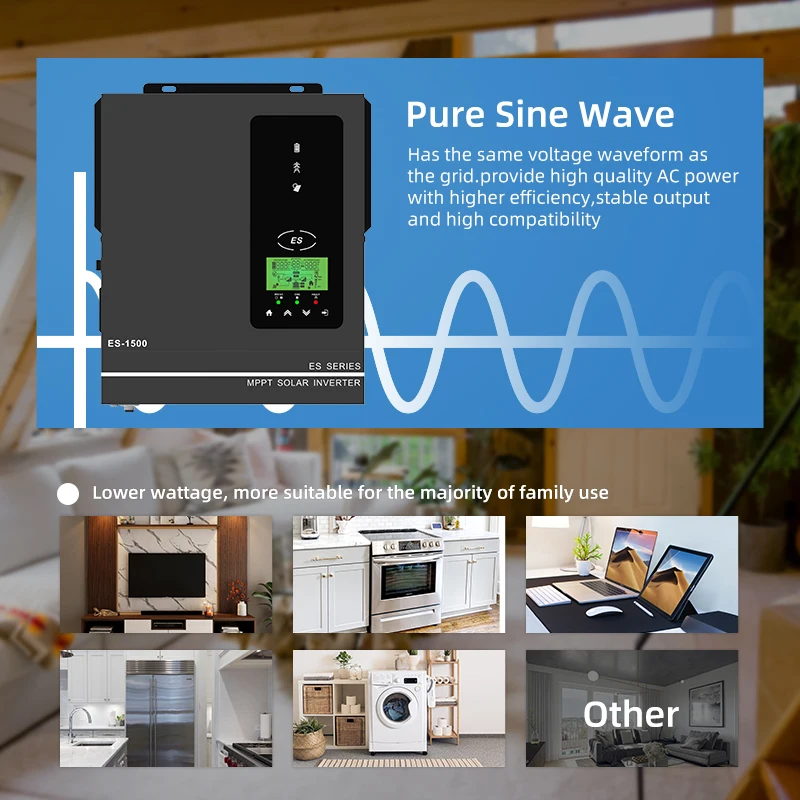

Waveform |
Pure sine wave |
||
|
BATTERY & AC CHARGER |
|||
|
Battery Voltage |
12VDC |
24VDC |
|
|
Floating Charge Voltage |
13.5VDC |
27VDC |
|
|
Overcharge Protection |
16VDC |
33VDC |
|
|
Maximum AC Charge Current |
60A |
||
|
SOLAR CHARGER |
|||
|
Maximum PV Array Power |
2000W |
3000W |
|
|
MPPT Range @ Operating Voltage |
30-400VDC |
||
|
Maximum PV Array Open Circuit Voltage |
400VDC |
||
|
Maximum Charging Current |
80A |
||
|
PHYSICAL |
|||
|
Dimension, D x W x H (mm) |
360*270*100mm |
390*270*100mm |
|
|
Net Weight (kg) |
4.4 |
5.4 |
|
|
OPERATING ENVIRONMENT |
|||
|
Humidity |
5% to 95% Relative Humidity(Non-condensing) |
||
|
Operating Temperature |
–10°C – 50°C |
||
|
Storage Temperature |
–15°C – 60°C |
||
