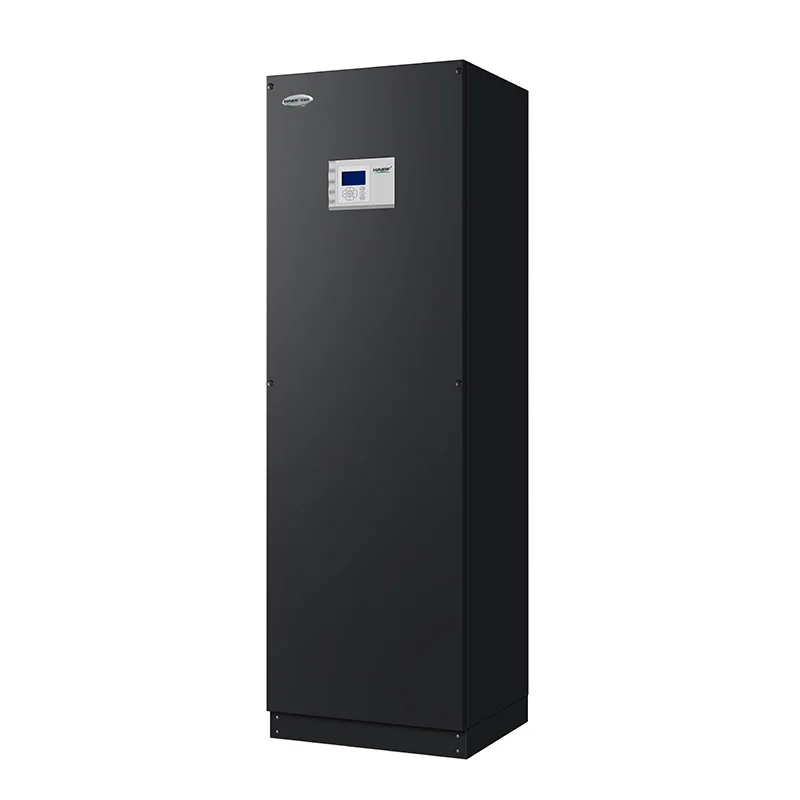

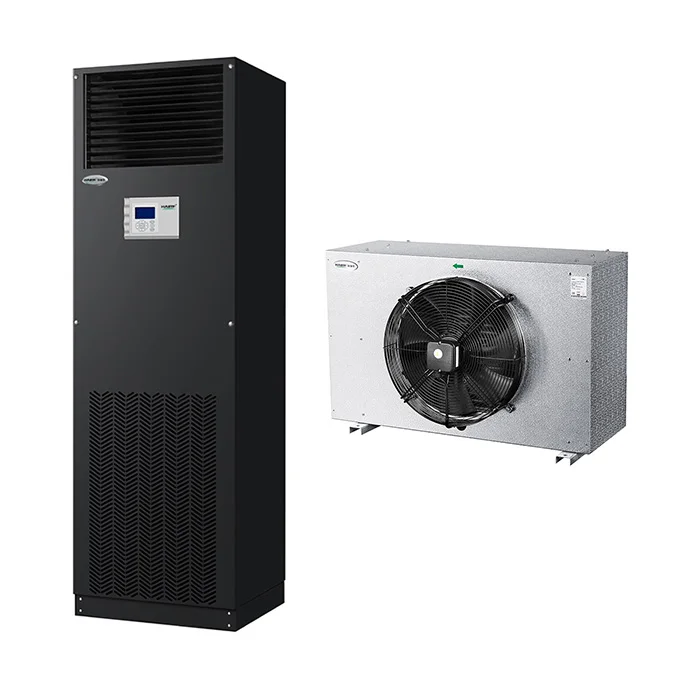

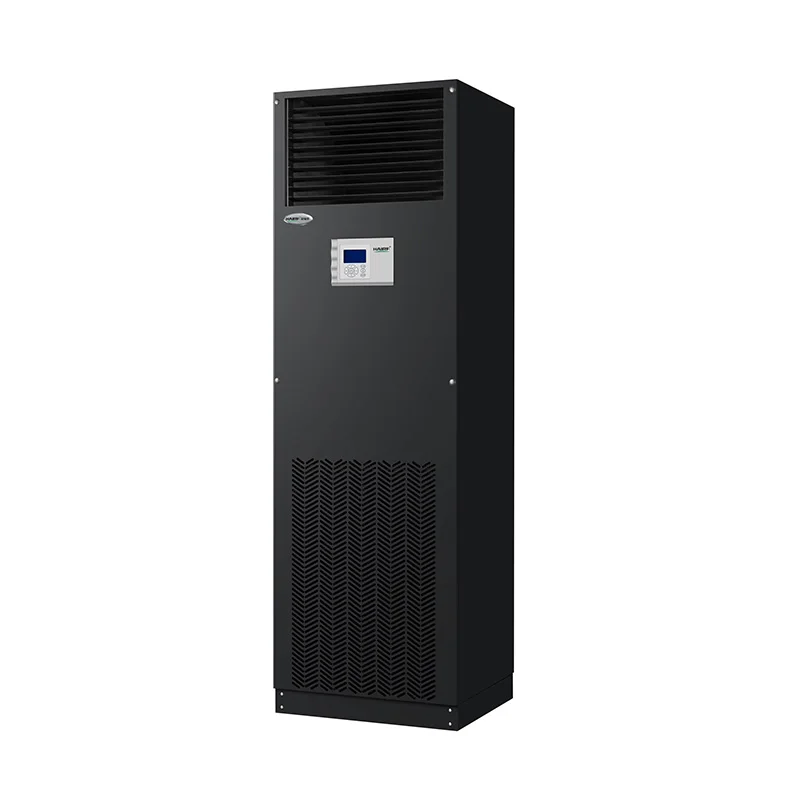

HAIRF 20.3KW Portable air Conditioners for the Data Center up Flow or Down Flow with humidifier
Original price was: د.إ36,846.88.د.إ29,094.45Current price is: د.إ29,094.45.
- High-concerned chemical: None
- Power Source: AC
- Brand Name: DUTRIEUX
- Origin: Mainland China
- type: Cabinet Air Conditioner
- place of origin: Anhui, China
- model number: P20000
- Mounting Type: Floor Standing
- warranty: 1 Year
- dimension(l*w*h): 600*500*1740
- key selling points: Competitive Price
- machinery test report: Provided
- video outgoing-inspection: Provided
- core components: motor, Pressure vessel, Gear, PLC
- weight (kg): 200
- compressor brand: Copeland, Emerson
- fan motors type: AC
- Product name: Industrial Portable Evaporative Air Cooler
- Application: HVAC
- Function: CoolingHeating
- Cooling capacity: 20.3KW
- Fan type: Centrifugal Fan
- Keyword: Cooling Air-cooled
- Refrigerant: R-410A
- Noise: Low Noise
- Color: Black
- Compressor: fully enclosed scroll compressor
All selling prices do not include customs duties.
Product Description

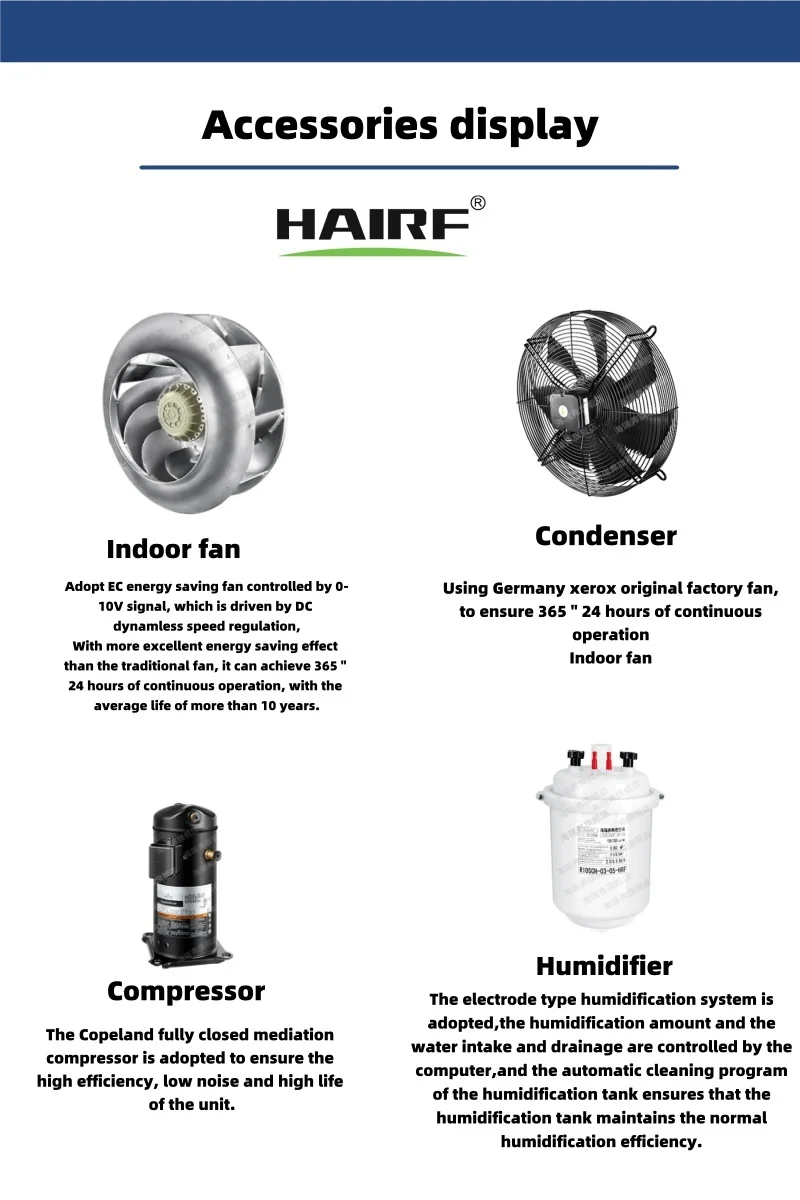

Details Images
Industory Customization

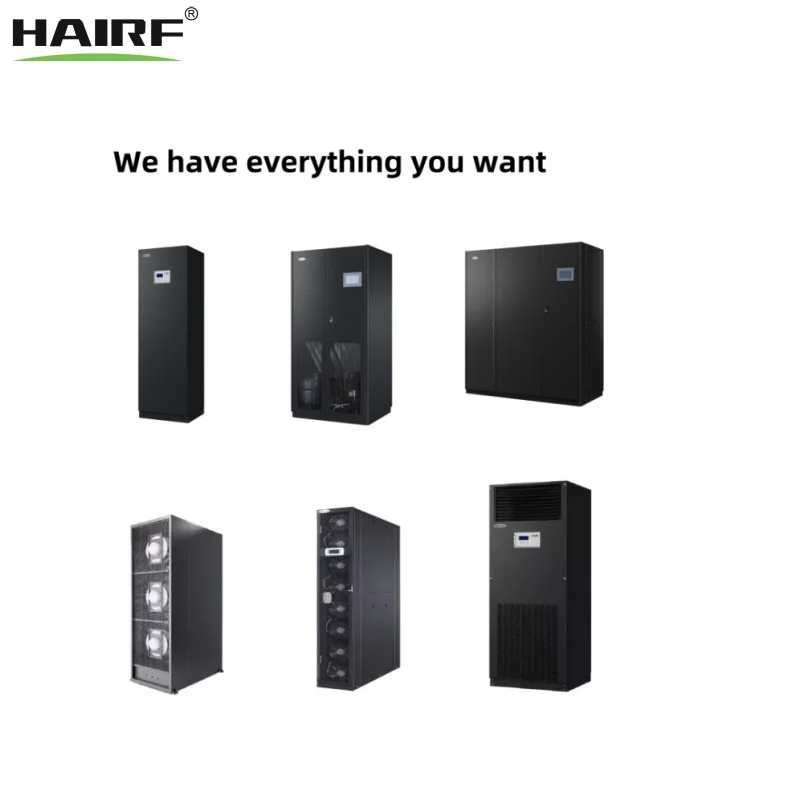

Hairf precision computer room air conditioners have all kinds of product lines to accommodate users’ varied demands.They are not only environmentallly friendly but also energy efficient.
1.Precision air-conditioner adopts modular design and redundancy standby feature,users can have compatible options of various specifications to decide the system package most suitable to themselves without the trouble of site renovations.
2.precision air cooling ststem adopts advanced microprocessor controller,which has fast response,high precision and good reliability.The temperature control accuracy can reach +/-1鈩�,and the relative humidity control accuracy can reach +/-3% RH,which can meet the environmental temperature and humidity requirements of various precision instruments room.
3.precision air conditioning units adopt a simple button-type operation and have a self-checking test system,which can monitor the working status and fault performance of the system and remotely,and can notify the operator through the alarm device.
Pathfinder
| Model | P5000 | P7500 | P12500 | P14000 | P17500 | P20000 |
| Nominal cooling capacity(KW) | 6.3 | 8.2 | 12.7 | 14.1 | 17.5 | 20.3 |
| Air flow(m³/h) | 1500 | 1850 | 2700 | 3000 | 3700 | 4100 |
| SHR | 0.92 | 0.93 | 0.92 | 0.92 | 0.91 | 0.93 |
| Compressor quantity | 1 | 1 | 1 | 1 | 1 | 1 |
| Indoor blower fan | Black curved blades centirifugal | |||||
| Indoor blower fan quantity | 1 | 1 | 1 | 1 | 1 | 1 |
| Heater | PTC | PTC | PTC | PTC | PTC | PTC |
| Rated power(KW) | 2 | 2 | 2 | 2 | 2 | 2 |
| Humidifier | Electrode(optional) | |||||
| Air displacement | Front | |||||
| Air supply | Front | |||||
| Indoor unit dimension(mm) | 600×500×1900 | 600×500×1740 | 600×500×1740 | 600×500×1740 | 750×750×1900 | 900×800×1800 |
| Outdoor unit dimension(mm) | 885×380×720 | 810×400×1020 | 950×350×1240 | 950×350×1240 | 1035×380×825 | 1035×380×825 |
| Indoor unit weight(kg) | 155 | 165 | 170 | 172 | 194 | 200 |
| Outdoor unit weight(kg) | 36 | 38 | 39 | 40 | 42.5 | 43.5 |
| Indoor unit noise(dB) | 52 | 52 | 55 | 57 | 61 | 61 |
| Outdoor unit noise(dB) | 58 | 58 | 59 | 60 | 60 | 62 |
| controller language | English | |||||
| communication interface | RS485 | |||||
| communication protocol | Modbus RTU | |||||
| Power supply | (220 or 380V)/50Hz | (220 or 380V)/50Hz | (220 or 380V)/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Gas pipe diameter(mm) | 16 | 16 | 16 | 16 | 19 | 19 |
| Liquid pipe diameter(mm) | 12 | 12 | 12 | 12 | 16 | 16 |

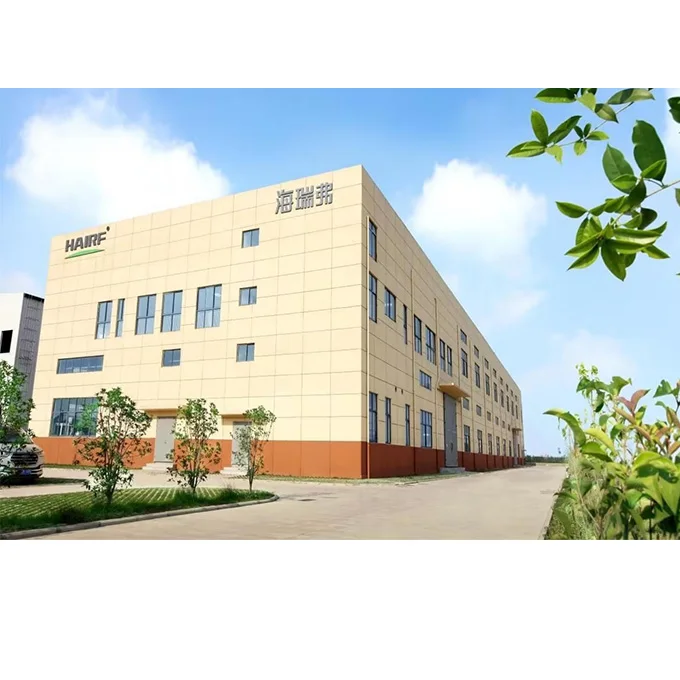

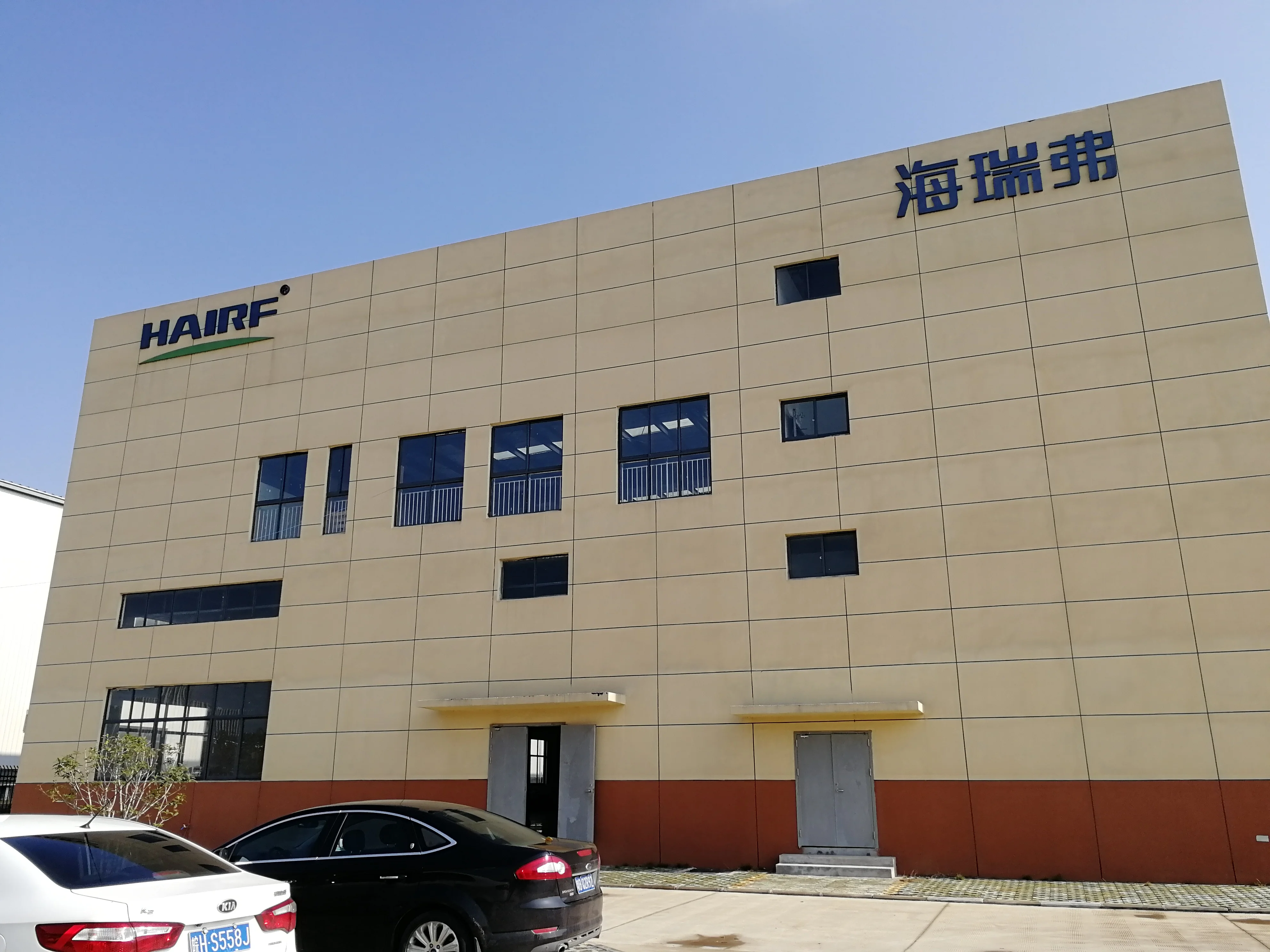

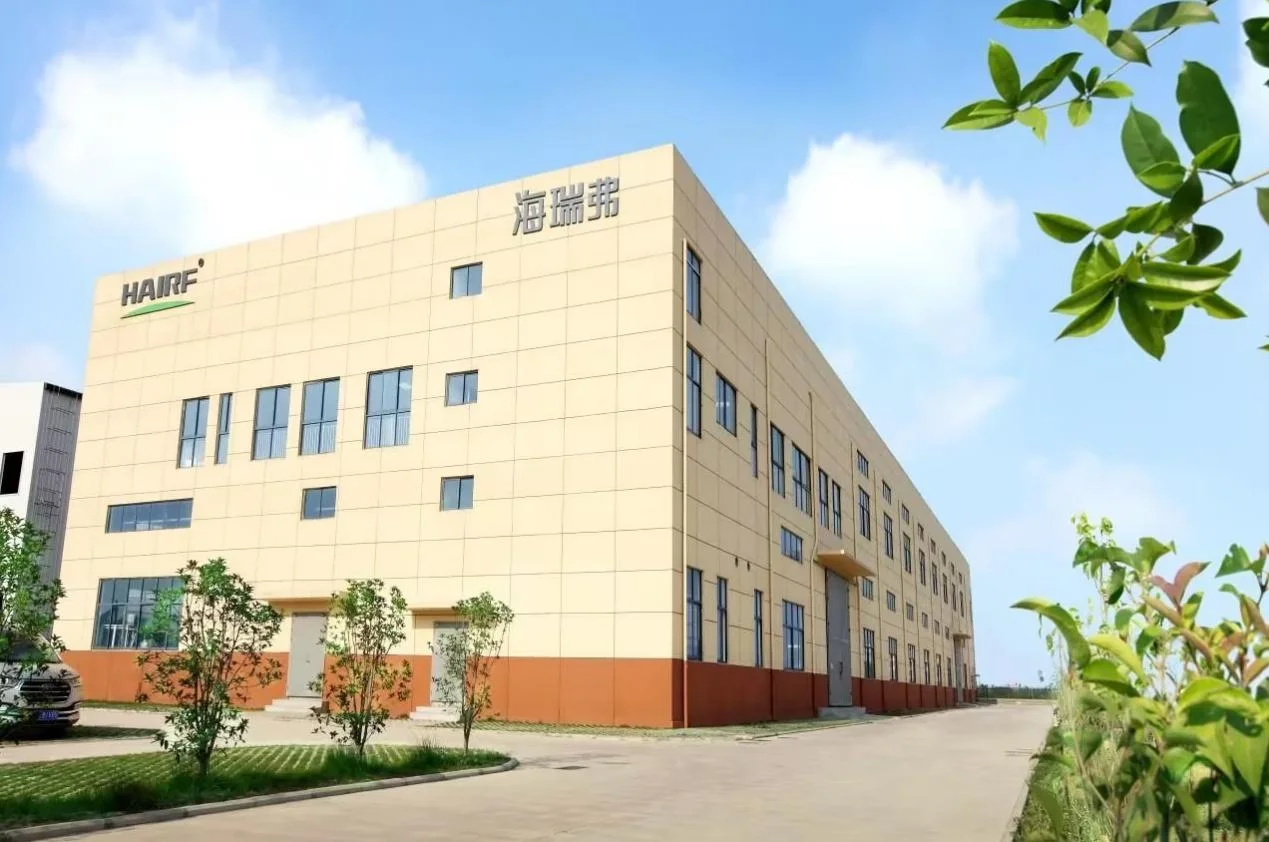

Company Information
HAIRF
Hairf has over 20 years of experience working within server rooms and data centre environments across a range of vertical markets. Our knowledge and experience mean that we know how to supply, install and maintain the right power, cooling, monitoring and security solutions for any critical IT systems.
As a leading chinese manufacturer of protected server environments, Hairf engineers, international sales and service team, are distributed all around the world in Mexico, Russia, Pakistan, Algeria, Indonesia, China, Philippines, Singapore, Kazakhstan, to ensure we can provide 24 hours service to more than fifty countries.
No matter at what level you engage with our organization, be it a project or online purchase, you can rest assured that you will get the right solution for your server room. No matter what your environment be it hospitality or retail, industrial or manufacturing, telecoms or datacentre we know how to create or improve secure, energy efficient and sustainable environments for servers and IT networks.

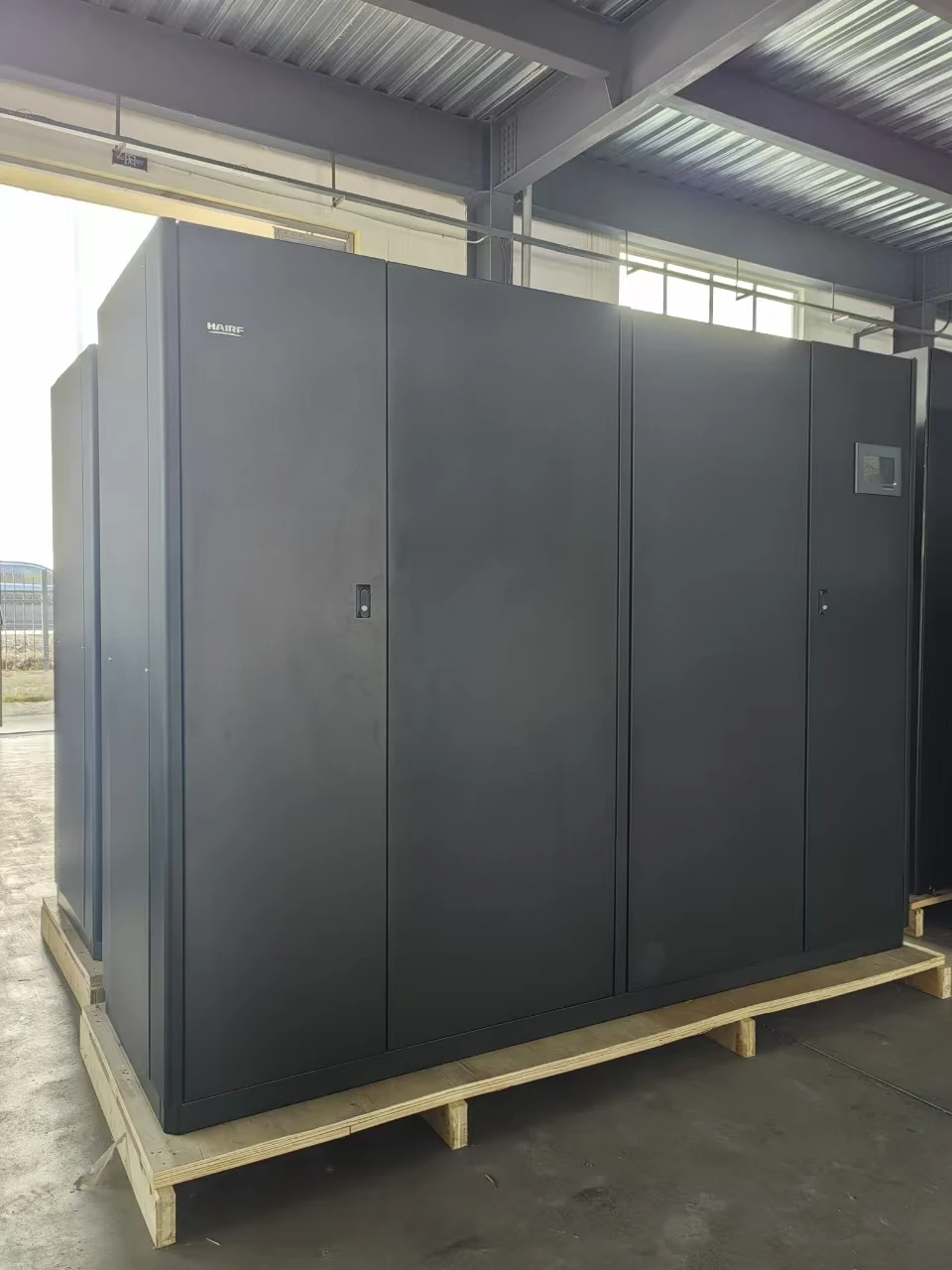

Packaging & Shipping
Trade Shows
Certifications
Main Markets&product
| Main Markets | Total Revenue(%) | Main Product(s) |
| Southeast Asla | 50.00% | – |
| Mid East | 20.00% | – |
| Central America | 20.00% | – |
| Africa | 10.00% | – |
Trade Ability
| Language Spoken | English.Chinese.Spanish.German.Russian.Italian |
| No.of Employees in Trade Department | 6-10 People |
| Average Lead Time | 25 |
| Total Annual Revenue | Above US$100 Million |
Business Terms
| Accepted Delivery Terms | FOB,CIF,DDP,Express Delivery |
| Accepted Payment Currency | USD,EUR |
| Accepted Payment methods | T/T,L/C |
| Nearst Port | Shanghai,Beijing,Shenzhen |
FAQ
1.who are we
we are based in beijing ,china,start from 2005,sell to southeast asia(50.00%),Mid East(20.00%),Central America(20.00%),Africa(10.00%).There are total about 501-100 people in our office.
2.how can we guarantee quality?
Always a pre-production sampie before mass production;
Always final inspection bofore shipment.
3.what can you buy from us?
precision air conditioner,data center solution,UPS uninterruptible power supply,STS static transfer switch.
4.why should you buy from us not from other suppliers?
Hairf ,with more than 30 years’ research and manufactur experience in server room equipment field,have world class labs,inspection equipment & computer room key equipment line.Now our product range includes precision air conditioner & data center solution.
5.what services can we provide?
Accepted Delivery Terms:FOB,CIF,DDP,Express Delivery;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type:T/T,L/C;
Language Spoken:English,Chinese;
After-sales Service:Overseas support available.
Official website:www.hairf.com
