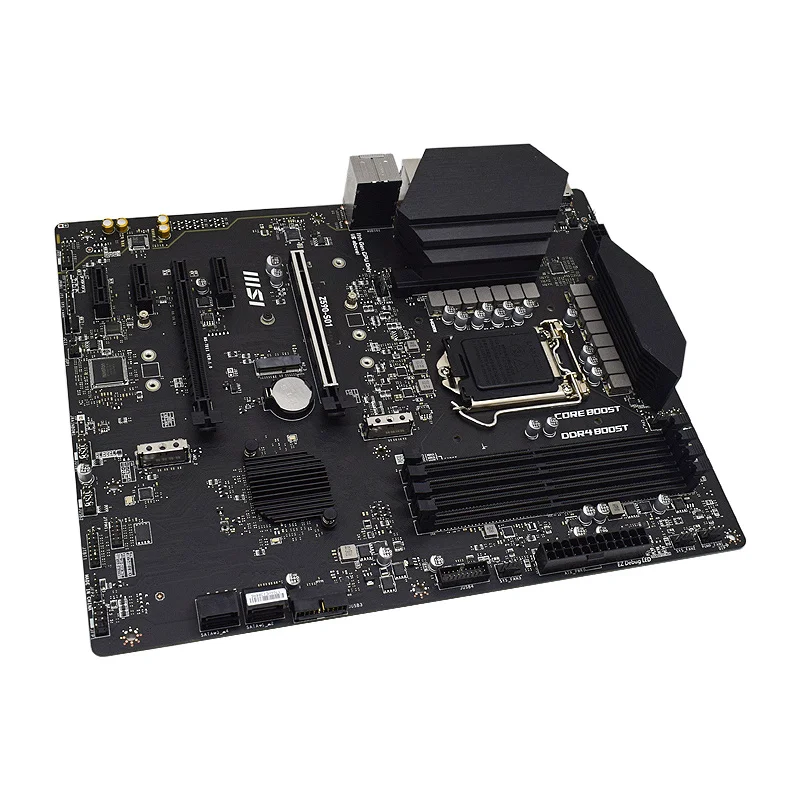

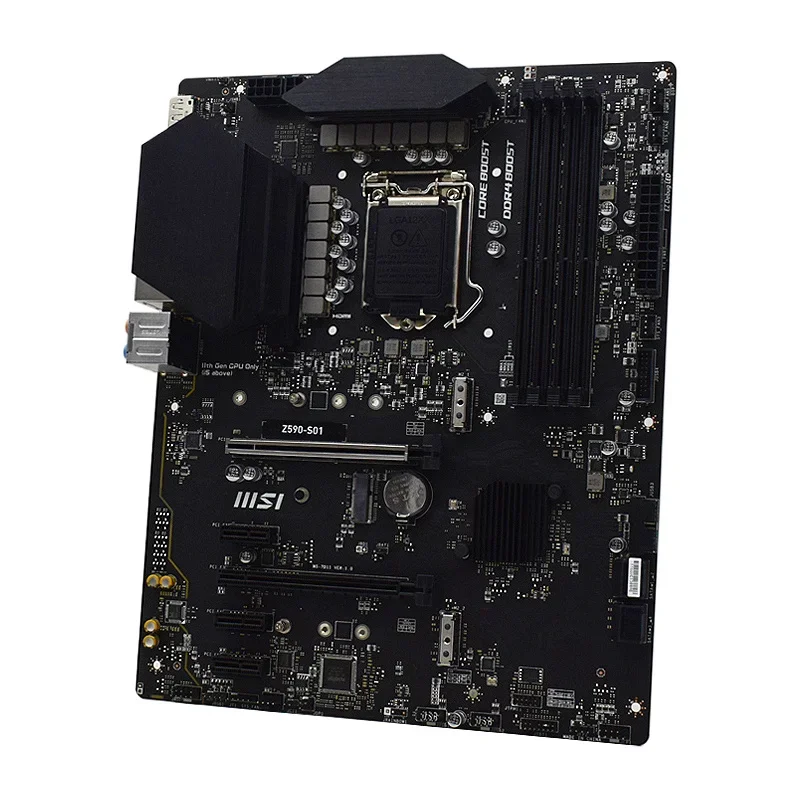

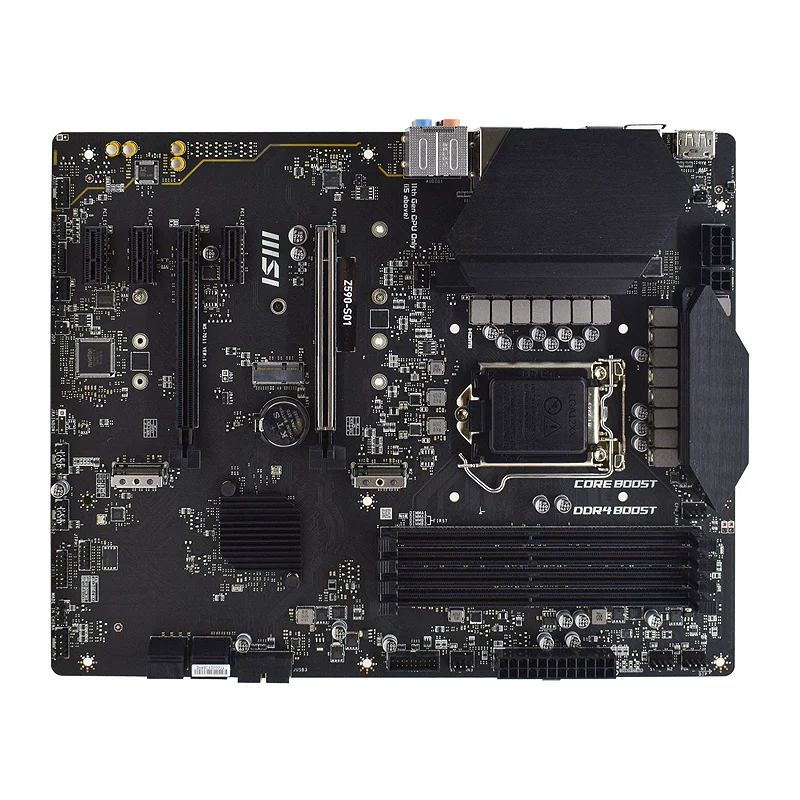

MSI Z590-S01 LGA1200 DDR4 128GB Intel Z590 Supports 10th/11th Generation CPUs PCI-E 4.0 SATA3 2xM.2 ATX

PROCESSOR

Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

Processor socket LGA1200

MEMORY

4x DDR4 memory slots, support up to 128GB
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)1
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5333 MHz
1DPC 2R Max speed up to 4700+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

EXPANSION SLOT

2x PCIe x16 slots
PCI_E1 slot (From CPU)
Supports up to PCIe 4.0 for 11th Gen Intel® CPU
Supports up to PCIe 3.0 for 10th Gen Intel® CPU
PCI_E3 slot (From Z590 chipset)
Supports up to PCIe 3.0 x4 speed
3x PCIe 3.0 x1 slots (From Z590 Chipset)
1x M.2 slot with E key for WiFi module only (M2_3)

ONBOARD GRAPHICS

1x HDMI 1.4 with HDR port, supports a maximum 4096×2160 30Hz
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz

MULTI-GPU

Supports 2-Way AMD® CrossFire™ Technology

STORAGE

4x SATA 6Gb/s ports (From Z590 Chipset)
2x M.2 slots (Key M)
M2_1 slot (From Processor)
Available only on 11th Gen Intel® CPU
Supports up to PCIe 4.0×4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (from Z590 chipset)
Support up to PCIe 3.0×4
Support up to SATA 6Gb/s
Support 2242/ 2260/ 2280 storage devices

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

Intel® Z590 Chipset
Intel® Z590 Chipset

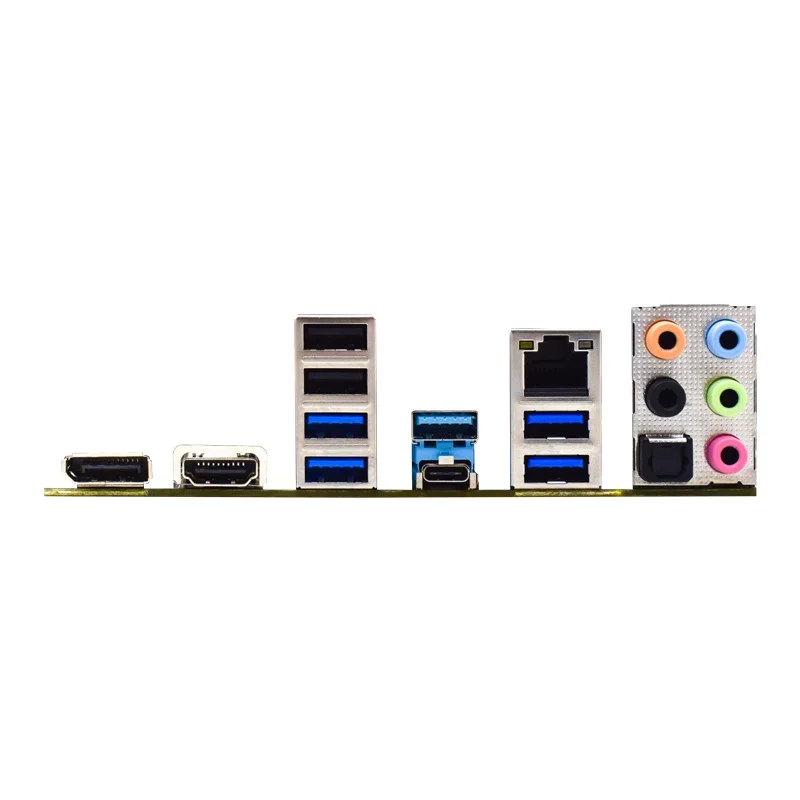

1x USB3.2 Gen 2×2 20Gbps port (Type-C port on the back panel)
7x USB 3.2 Gen 1 5Gbps ports (3 Type-A ports on the back panel, 4 Type-A ports available through the internal connector)
2x USB 2.0 ports on the back panel
Hub-ASM1074
2x USB 3.2 Gen 1 5Gbps ports on the back panel
Hub-GL850G
4x USB 2.0 ports available through the internal connectors

AUDIO

Realtek®ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output

INTERNAL CONNECTORS

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
4x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x M.2 slot (E-Key)
2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
4x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
1x TBT connector
