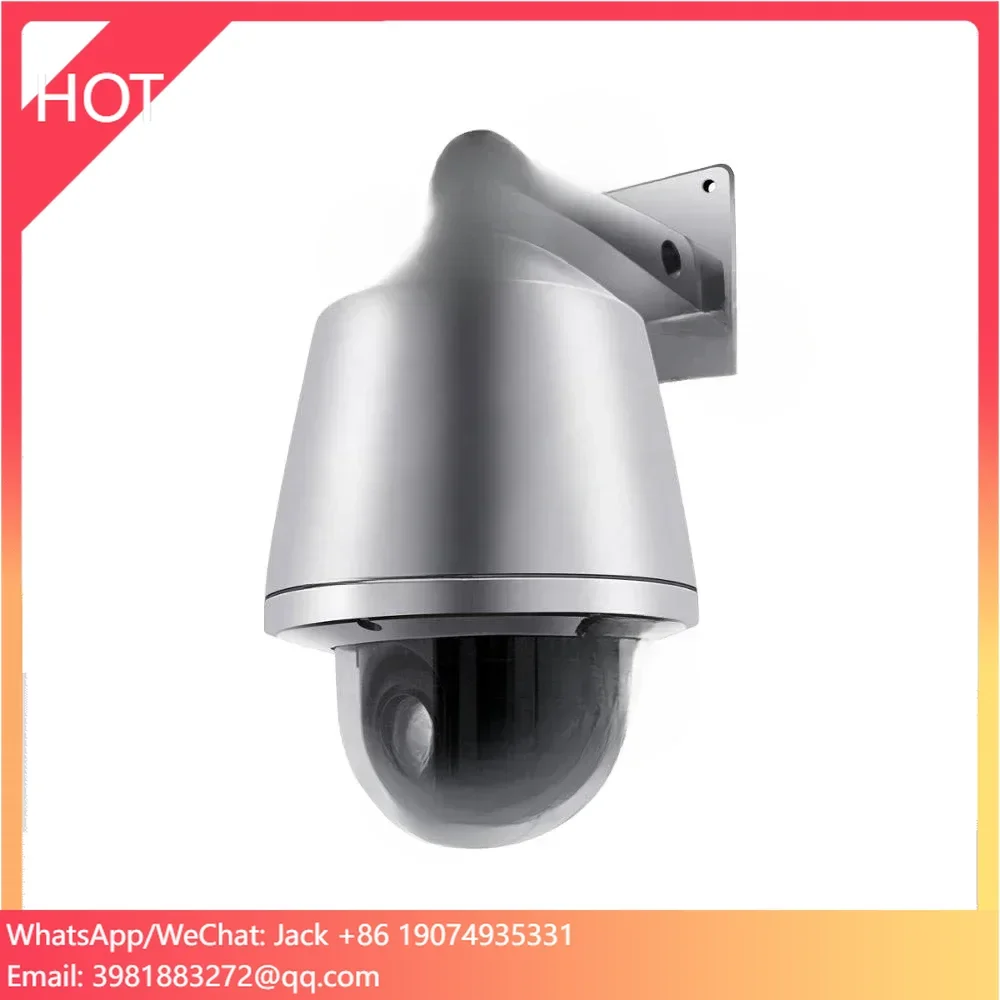

Network Security CCTV High-definition Speed Dome Camera Explosion-protected Network Camera
Original price was: د.إ15,836.07.د.إ12,316.94Current price is: د.إ12,316.94.
(In Stock)
- Brand Name: NoEnName_Null
- Origin: Mainland China
- High-concerned chemical: None
- Place of Origin: Beijing, China
- Brand Name: HBYT
- Model Number: HB-8000
- Warranty: 1 Year
- Sensor: CMOS
- Style: Dome Camera
- Function: Alarm I/O, Wide Angle
- Video Compression Format: H.265
- Data Storage Options: Micro SD card
- Application: Outdoor, Indoor, Petrochemical
- Image Resolution: 3MP
- Power Supply: AC85V-260V
- Certificate: ROHS/ISO9001 ATEX IECEx
- Weight: 10KG
- Focal Length: 5.2-114.4mm
- Feature: IP68 Weatherproof
- Sensor type: 1/2.8" progressive scan CMOS
- Access standard: GB/T28181 CGI PISA
Friends, welcome to our store, you can tell me your specific product requirements, if you need other models of this product, please contact me, I will send the product link for your purchase! WhatsApp/WeChat: Jack +86 19074935331 (Reply within 5 minutes) Email: 3981883272@qq.com (Reply within 8 hours)
#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-3{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-4{text-align:center}#detail_decorate_root .magic-5{font-size:26px;font-family:Arial}#detail_decorate_root .magic-6{border-bottom-style:solid;border-bottom-color:#fff;font-family:Roboto;font-size:24px;color:#fff;background-color:#2196ed;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-7{width:750px}#detail_decorate_root .magic-8{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-9{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-10{width:750px;border-collapse:collapse}#detail_decorate_root .magic-11{min-height:28px;padding:5px 10px;width:28px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-12{font-size:18px}#detail_decorate_root .magic-13{min-height:28px;padding:5px 10px;width:669px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-14{min-height:28px;padding:5px 10px;width:222px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-15{min-height:28px;padding:5px 10px;width:478px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-16{overflow:hidden;width:750px;height:4px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-17{margin-top:-6px;margin-left:0;width:750px;height:4px}#detail_decorate_root .magic-18{overflow:hidden;width:750px;height:952px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-19{margin-top:0;margin-left:0;width:750px;height:952px}#detail_decorate_root .magic-20{overflow:hidden;width:750px;height:1262px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-21{margin-top:0;margin-left:0;width:750px;height:1262px}#detail_decorate_root .magic-22{overflow:hidden;width:750px;height:1214px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-23{margin-top:0;margin-left:0;width:750px;height:1214px}#detail_decorate_root .magic-24{overflow:hidden;width:750px;height:1085px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-25{margin-top:0;margin-left:0;width:750px;height:1085px}#detail_decorate_root .magic-26{overflow:hidden;width:750px;height:736px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-27{margin-top:0;margin-left:0;width:750px;height:736px}#detail_decorate_root .magic-28{overflow:hidden;width:750px;height:703px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-29{margin-top:0;margin-left:0;width:750px;height:703px}#detail_decorate_root .magic-30{overflow:hidden;width:750px;height:977px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-31{margin-top:0;margin-left:0;width:750px;height:977px}#detail_decorate_root .magic-32{margin-bottom:10px;overflow:hidden}
Explosion Proof Speed Dome Camera
Product Profile
Functional characteristics
|
1
|
The highest level of explosion-proof certification for a variety of harsh and high-risk places
|
|
2
|
3 million pixels, 1/2.8″ CMOS, 22 times optical zoom, focal length: 5.2-114.4mm,
|
|
3
|
22x optical zoom
|
|
4
|
Support gb/t 28181, onvif, cgi and other network protocols, making networking more convenient
|
|
5
|
Supports multi-action detection such as squall line intrusion, area intrusion, crossing fence, cockroach detection, item legacy, item moving, fast moving, personnel gathering, etc.; supports multiple triggering rules linkage action; supports target filtering
|
|
6
|
360° continuous rotation in the horizontal direction, continuous rotation from 180° to 90° in the vertical direction, continuous monitoring, no monitoring blind zone
|
|
7
|
8 cruise paths can be completed according to the preset positions. 5 track paths can be set, and the recording time of each path is greater than 15 minutes.
|
|
8
|
Aviation grade high-strength poly carbonate explosion-proof transparent dome, hardened, anti-fog treatment, anti-reflection, light transmittance up to 96%
|
|
9
|
Built-in semiconductor temperature control components for automatic heating and cooling
|
Technical parameters
|
Product number
|
HB-8000
|
|
Explosion-proof mark
|
Ex d IIC T6 Gb/Ex tD A21 IP68 T80℃
|
|
Image Sensor
|
1/2.8 inch cmos
|
|
Sensor total pixel
|
About 2.16 million pixels
|
|
Horizontal resolution
|
≥1000TVL
|
|
Maximum image size
|
1920×1080
|
|
Resolution
|
200W
|
|
Minimum illumination
|
Color: 0.005Lux F1.6 Black and white: 0.0005Lux F1.6
|
|
Gain control
|
Automatic / manual
|
|
3d noise reduction
|
Support
|
|
2d noise reduction
|
Support
|
|
Signal to noise ratio
|
≥55dB
|
|
White balance
|
Automatic / manual / tracking / outdoor / indoor / outdoor automatic / sodium lamp automatic / sodium lamp
|
|
Electronic shutter
|
1/1~1/30000s
|
|
Digital zoom
|
16 times
|
|
Day and night mode
|
Automatic icr filter color to black
|
|
Focus mode
|
Automatic / semi-automatic / manual
|
|
focal length
|
5.0mm~115mm
|
|
Zoom speed
|
About 3.5s
|
|
Field of view
|
Level: 61°~2.8° (near focus to far focus)
|
|
Close-up distance
|
100mm~1000mm (near focus to far focus)
|
|
Optical zoom
|
23 times
|
|
Aperture value
|
F1.6~F3.5
|
|
Fill light mode
|
No fill light
|
|
Horizontal range
|
0°~360° continuous rotation
|
|
Vertical range
|
0°~90° Automatically flipped 180° and continuously monitored
|
|
Keying speed
|
Level: 0.1°~300°/s
Vertical: 0.1°~250°/s
|
|
Call preset speed
|
Level: 400°/s
Vertical: 300°/s
|
|
Intelligent
|
Supports multi-action detection such as squall line intrusion, regional intrusion, crossing fence, cockroach detection, item legacy, item moving, fast moving, etc. Supports multiple triggering rules linkage action; supports target filtering
|
|
Face intelligence detection
|
Support
|
|
Network Interface
|
Built-in rj45 network port, supporting 10m/100m network data
|
|
Alarm interface
|
1 in 1 out (optional)
|
|
Alarm linkage
|
Capture/preset point/cruise/patrol/sd card recording/trigger switch output/client electronic map/send mail
|
|
Audio port
|
1 in 1 out (optional)
|
|
SD card interface
|
Built-in rj45 network port, supporting 10m/100m network data
|
|
Temperature range
|
-40℃~+70℃
|
|
Power supply
|
Ac24v 1.5a/poe-at/ac220v (optional)
|
|
Product material
|
304 stainless steel material (used in chemical, acid and alkali corrosive environments)
|
|
Inlet hole specification
|
1 g3/4″ entry hole
|
|

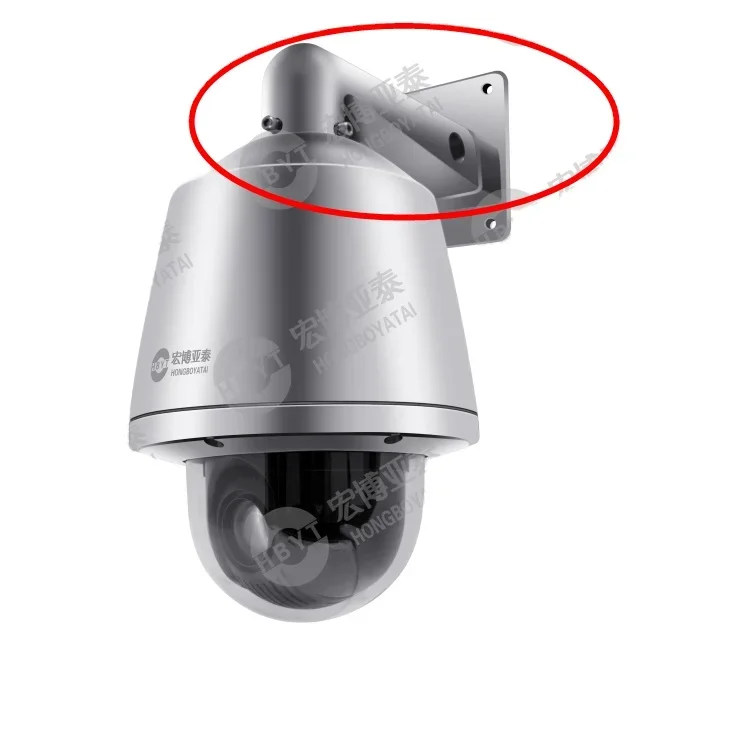

Installation method
|
A variety of installation options are available depending on the application environment
|
|
Product weight
|
≤12kg
|
Environment
It has IIa, IIb, IIc flammable gas, and the ignition temperature group is zone 1 and zone 2 of the t1-t6 group. The flammable gas or the explosive mixture formed by steam and air is also applicable to the ignition temperature group. It is a place containing a combustible dust mixture in Zones 20, 21, and 22 of the t1-t6 group.Such as: petroleum, chemical, mine, military, medicine, oil depot, ship, drilling platform, gas station, fireworks production, grain processing and storage.
