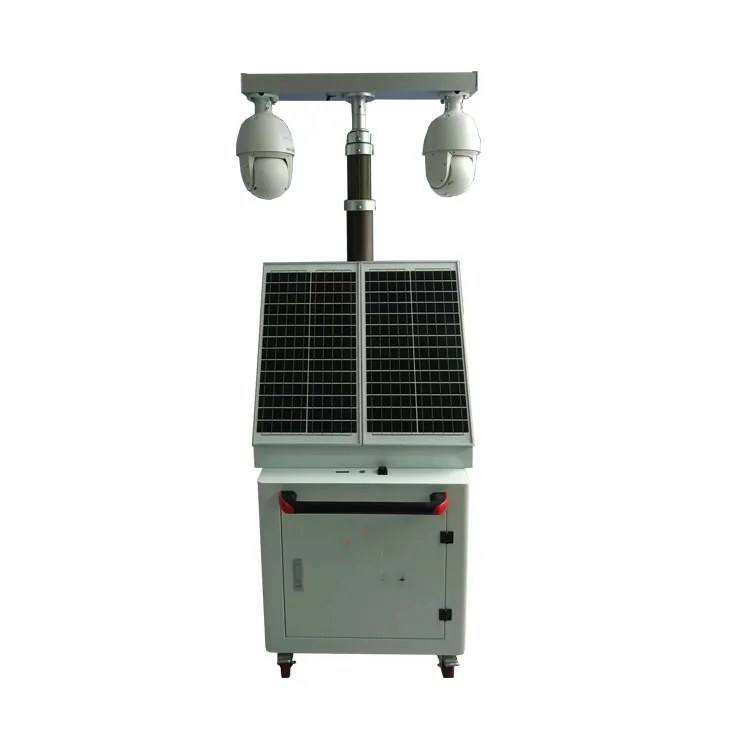

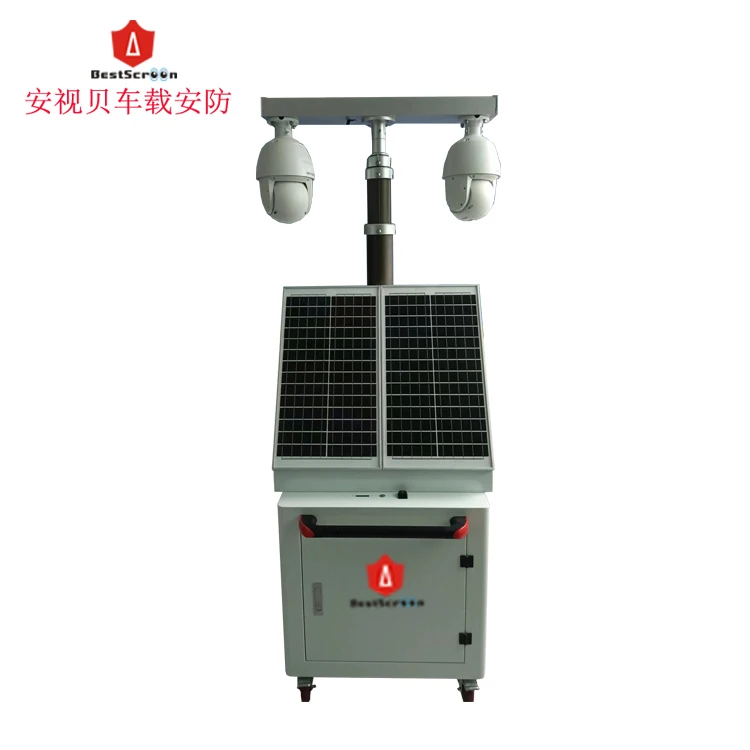

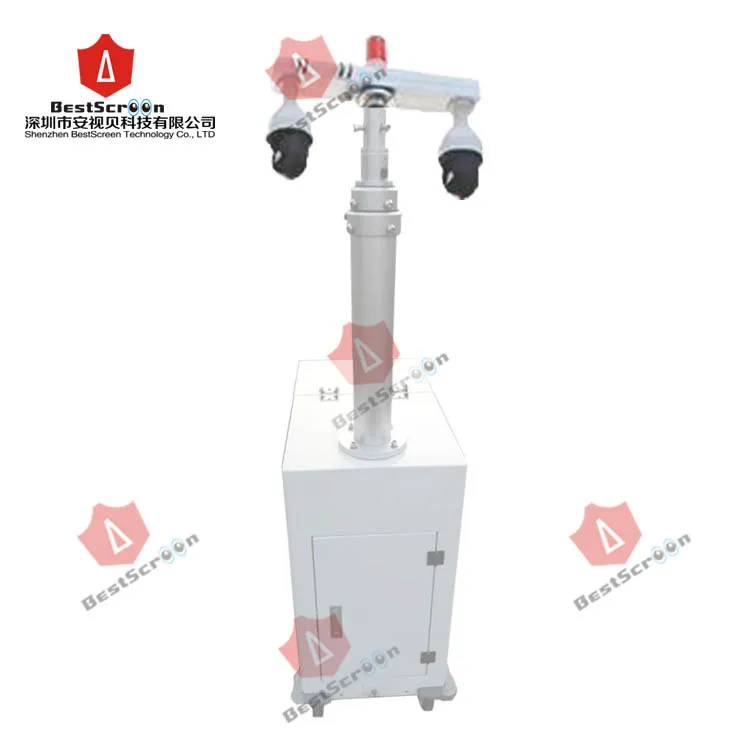

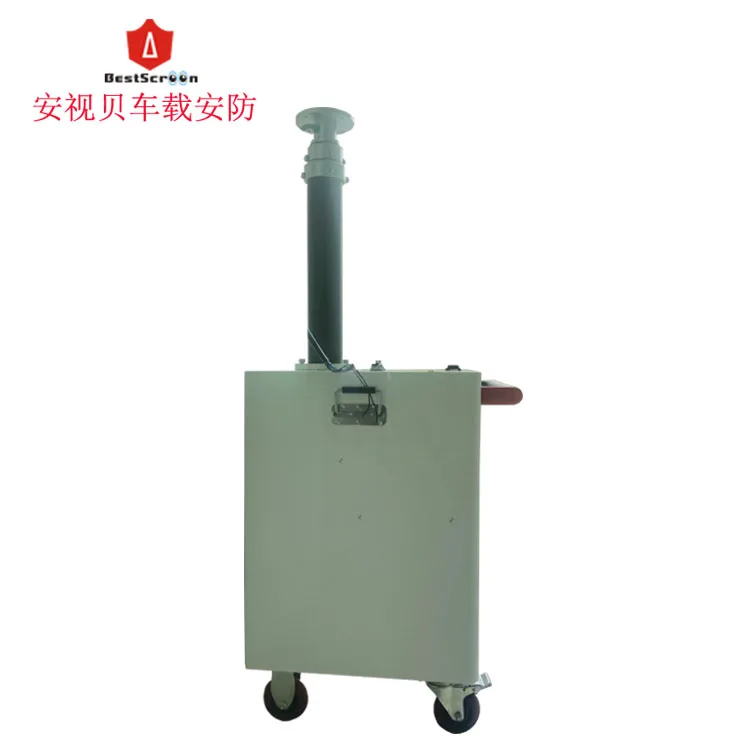

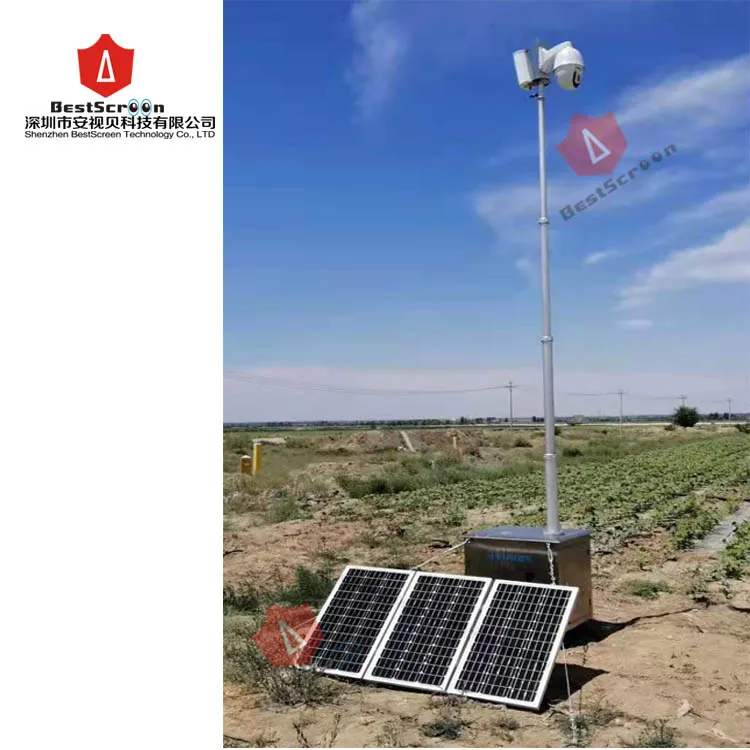

Outdoor Construction Site Mobile Sentry Security Trailer Solar Battery Power CCTV Camera Tower
Original price was: د.إ43,266.69.د.إ35,099.48Current price is: د.إ35,099.48.
(In Stock)
- Brand Name: NoEnName_Null
- High-concerned chemical: None
- Origin: Mainland China
- Place of Origin: Guangdong, China
- Brand Name: BestScreen
- Model Number: BSM-30-40SJ35S
- Warranty: 2 years
- Video Compression Format: H.265
- Data Storage Options: Cloud, NVR
- Customized support: Online technical support, Customized logo, Software reengineering
- Style: dome camera, ptz camera
- Sensor: CMOS
- Resolution: 4mp
- Power Supply: DC12V
- Waterproof: IP66
- Battery: 200AH
- Battery continious times: 7 days
- Camera zoom: 23x
- solar power: 50w*2
- mast extending height: 5 meters
- mast retracting height: 1.7 meter
- screen: 10 inch
- Application: Outdoor
Feature of Mobile CCTV Trailer
No need to set points, wiring, reduce the cost & time of deployment.
Easy to install and use, easy to operate .
Rapidly deployment, one person can complete the system deploy in 5 minutes,fast response for emergency need.
Thickened metal body, galvanized rust-proof bracket, 2 years gurantee period
Powerful endurance, the system could run for 5-7 days when full charge (200AH li-lion battery).
4G or 5G, WIFI and LTN multiple signal transmission modes options, data transmission is safe and smooth.
Support manual tracking, panoramic tracking, event tracking, and multi-scene cruise tracking.
• Real time video and audio recording.
• High efficiency code transmission ability.
• real-time transmission of vehicle images.
• Support solar power,which is environment friendly, two-ways radio and alarm
• Support PTZ control, Keep abreast of the scene environment anytime.
• Strong system management capabilities.
• Mobile performance meets the work requirements of any place.
• Text scheduling and LED text prompts
• WIFI automatically downloads data functions, can transfer images back to the command
• Highly expandable, multi-functional installation platform. To ensure system safety,the body temperature sensor, temperature and humidity, PM2.5, noise, air, vibration sensor, audible alarm, car, etc can be added according to the demand.
Back-end storage, control system
Efficient coding transmission capability.
GPS positioning, real-time transmission of vehicle images.
Input voltage +7V~+48V wide voltage, suitable for kinds of vehicle.
Support PTZ control, Keep abreast of the scene situation.
Strong system management ability.
Mobility meets the work requirements anywhere.
Text scheduling and LED text prompts.
WIFI automatically downloads data functions, can send images back to the command center via WIFI or 4G, can view videos, play back videos, etc. through mobile phone or computer.
Application of Mobile Sentry CCTV Trailer
BestScreen mobile solar Trailer CCTV systems aims to solve pubilic security challenges just like as:
Urgent surveillance for emergency rescue and first-aid.
Change of incident locations.
Surveillance for various kinds of events.
extremely environments that threaten personal safety
Surveillance for unavailability of electricity, communication and lighting.
Intelligent city, Safety construction.
Unpredictable incidents

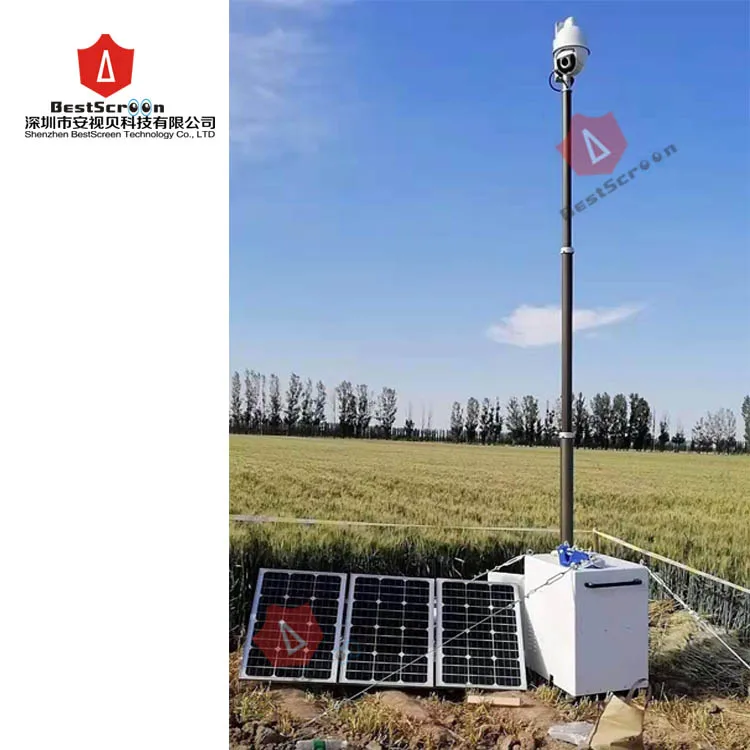

Mobile Surveillance for construction site.
Tehchnical data :
| Camera | Camera type | IP PTZ camera |
| Pixel | 2.0MP | |
| Resolution | 4mp | |
| Optical zoom | 23x optical zoom optional | |
| Camera rotation angle | 360° horizontal continuously rotation | |
| -15°~ +90°Vertical rotation | ||
| screen | none | |
| Network port | RJ45 10Base-T/100Base-TX PoE(IEEE802.3af | |
| Video Transmission & storage | Video input | 4 channel network 1080P, aviation interface |
| Video output | 1 channel composite video output+1 channel VGA output, 1.0Vp-p, 75Ω | |
| Preview function | Single-channel, 4-screen splicing preview, support manual / event triggered full-screen display function | |
| Video resolution | Support 1080P,720P,D1,HD1, CIF optional, Max support 4ch 1080P | |
| Audio input | 4channel, Aviation interface | |
| Audio output | 1channel | |
| Alarm Output | 2-way switch output, linked audible and visual alarm, oil and power off, etc. | |
| communication interface | 2 RS232, expandable face recognition, fuel sensor, LED advertising screen, etc. | |
| 2 way 485 interface, can extend PTZ | ||
| 2-way CAN bus interface | ||
| Wireless transmission | Support built-in 3G wireless transmission function, WCDMA, CDMA2000,TD-SCDMA compatible GPRS, EDGE | |
| Built-in 4G wireless transmission function, TDD-LTE, FDD-LTE | ||
| Position | Support built-in GPS / BD module, can report to the platform | |
| HDD | Support large capacity 2.5-inch hard disk (maximum 4T) | |
| Power supply | Battery | 12V·200AH or 250AH |
| Solar | 2*50W /2*100W Optional | |
| charge power | AC220V | |

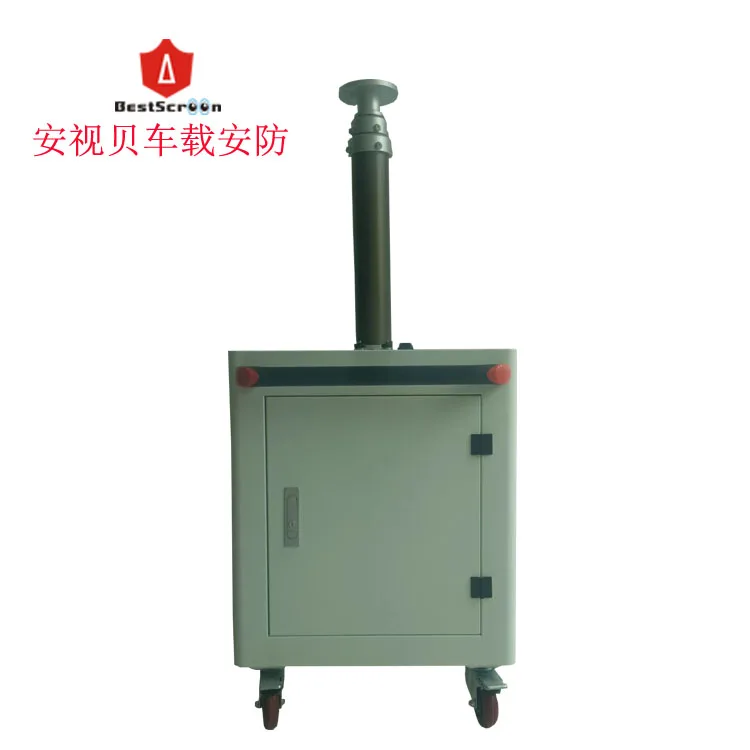

| Trailer body & Mast | Housing | Metal |
| Extended Height | 5m ( 1.7 m to 5 meter ) or 3.5m ( 1.53mto 3.5m ) | |
| Wind power | 19m/sec | |
| Lifting | pneumatic | |

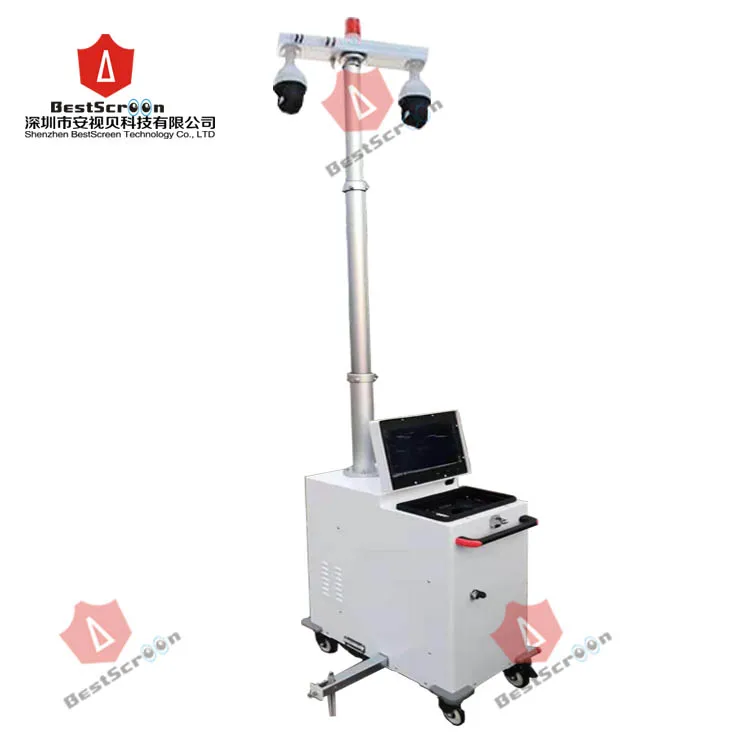

| Local viewing | With monitor for local viewing |
