Refrigerator top cabinet double body lifting pull basket double layer hanging cabinet pull-down elevator kitchen storage rack

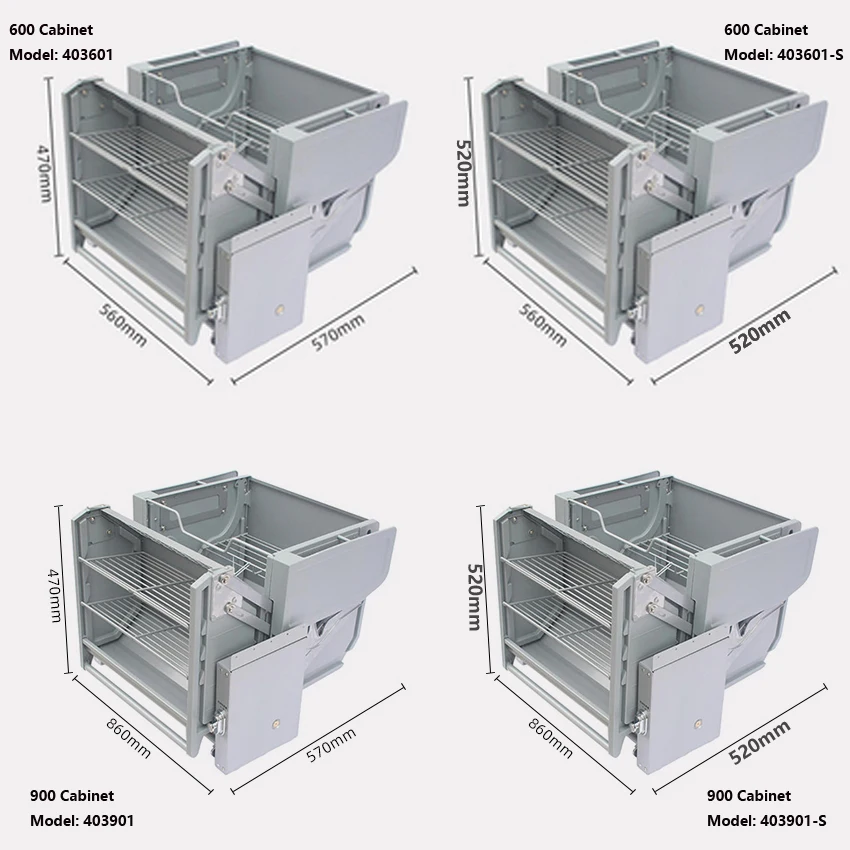

600 Cabinet
Model: 403601-S
Product size: 560 * 520 * 520mm
Cabinet internal width: 562-568mm
Cabinet internal depth: ≥ 520mm
Cabinet internal height: ≥ 520mm

600 Cabinet
Model: 403601
Product size: 560 * 570 * 470mm
Cabinet internal width: 562-568mm
Cabinet internal depth: ≥ 590mm
Cabinet internal height: ≥ 480mm

900 Cabinet
Model: 403901-S
Product size: 860 * 520 * 520mm
Cabinet internal width: 862-868mm
Cabinet internal depth: ≥ 520mm
Cabinet internal height: ≥ 520mm

900 Cabinet
Model: 403901
Product size: 860 * 570 * 470mm
Cabinet internal width: 862-868mm
Cabinet internal depth: ≥ 590mm
Cabinet internal height: ≥ 480mm

When the basket is filled with items, the dual power adjustment gear button allows you to easily push and pull, balance resistance, prevent rapid sliding, and facilitate pushing and pulling.

Neutral: When the item is light or empty, use neutral gear (with both buttons pulled out)
1st gear: Press the left button in, pull out the right button, with a power assist effect of 1-5KG

2nd gear: Pull out the left button and press in the right button, with a power assist effect of 5-7KG
3rd gear: Press the left and right buttons simultaneously, with a power assist effect of 6-12KG

Attention: It is strictly prohibited to operate the buttons while the basket is running. The buttons can only be operated after all are pushed into the cabinet

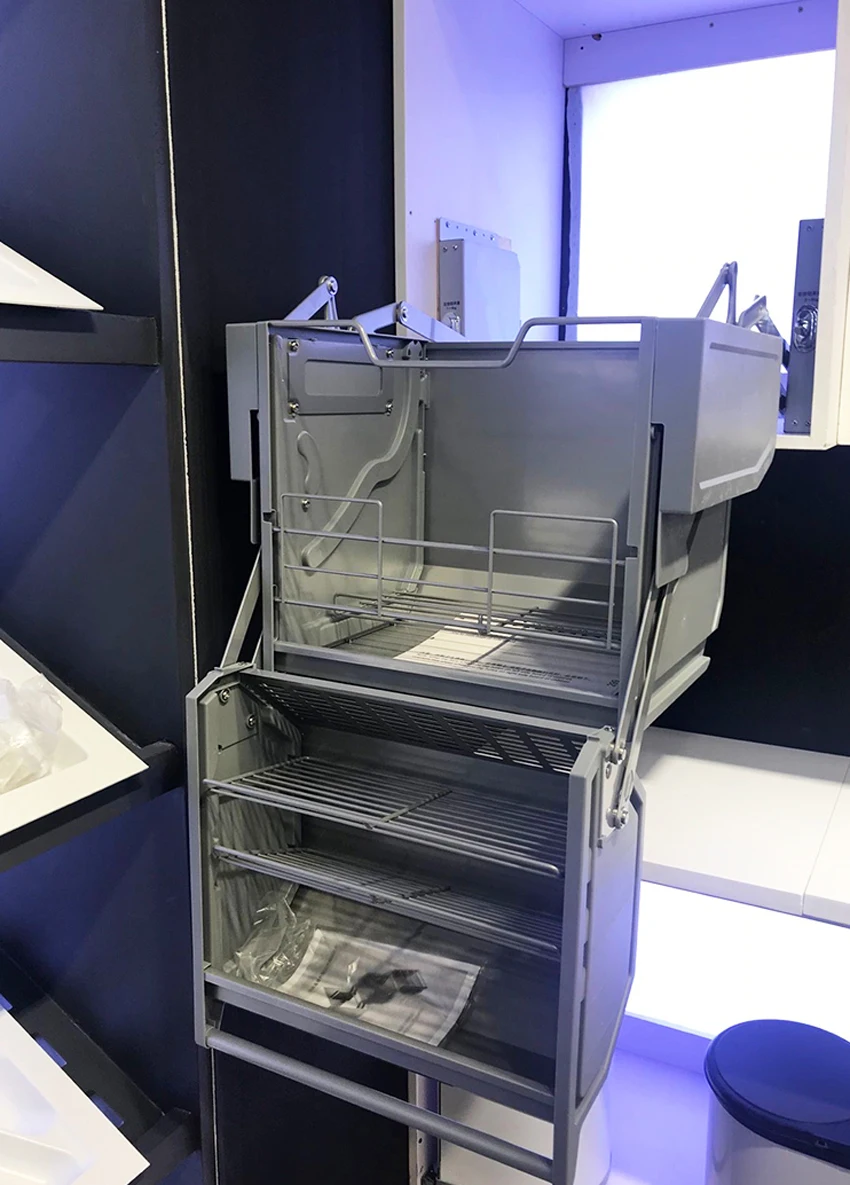

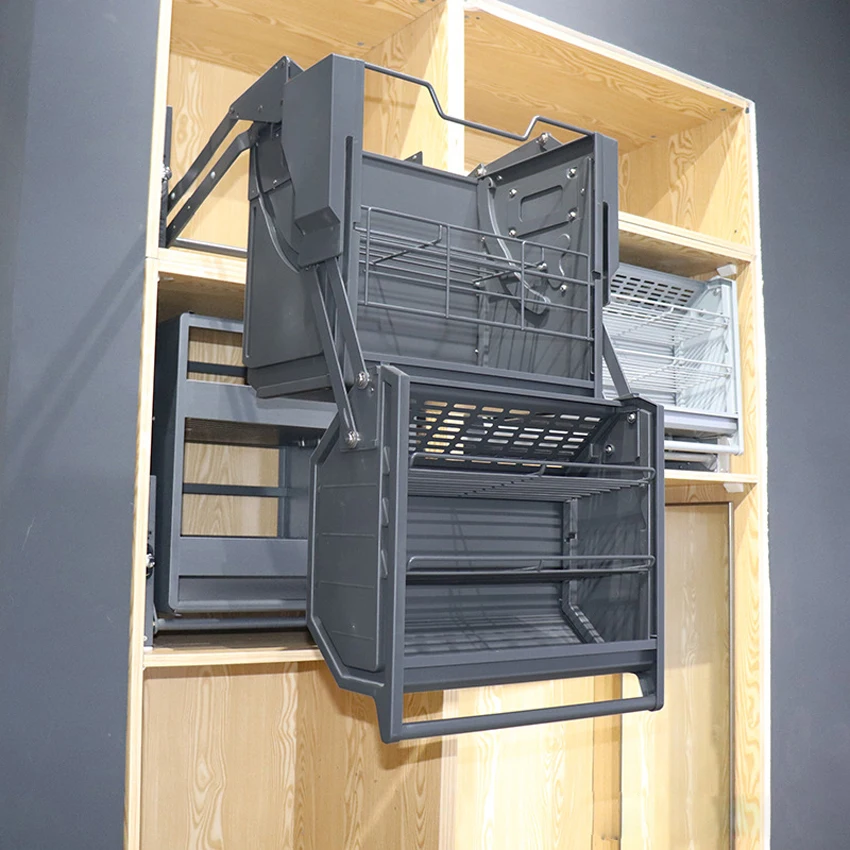

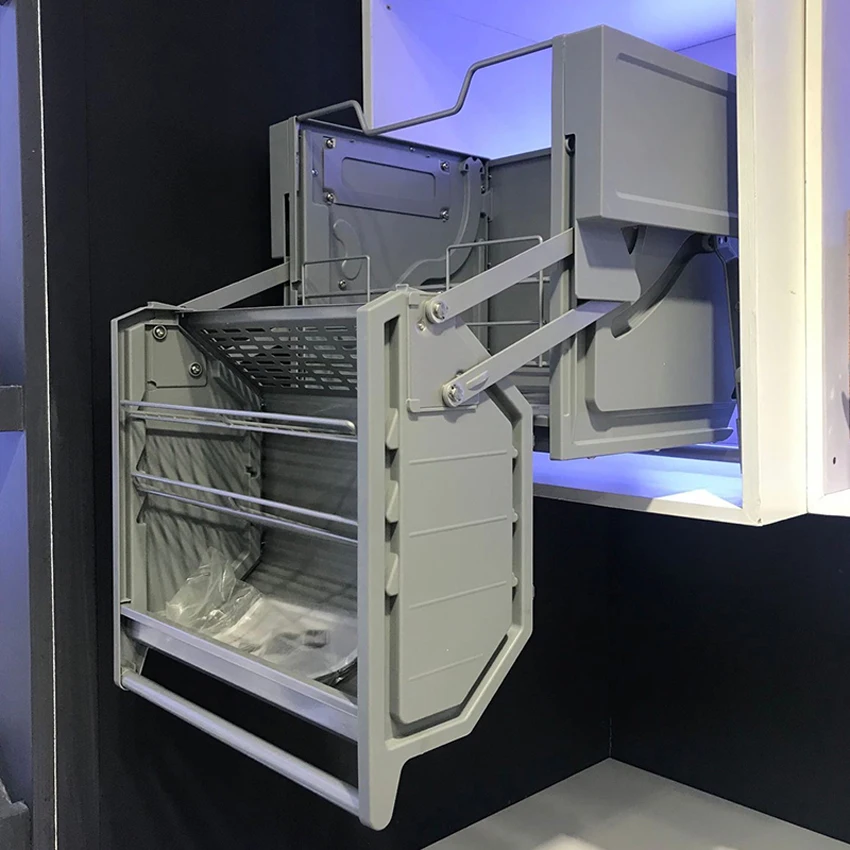

Double body style
Bipartite linkage
Stable operation

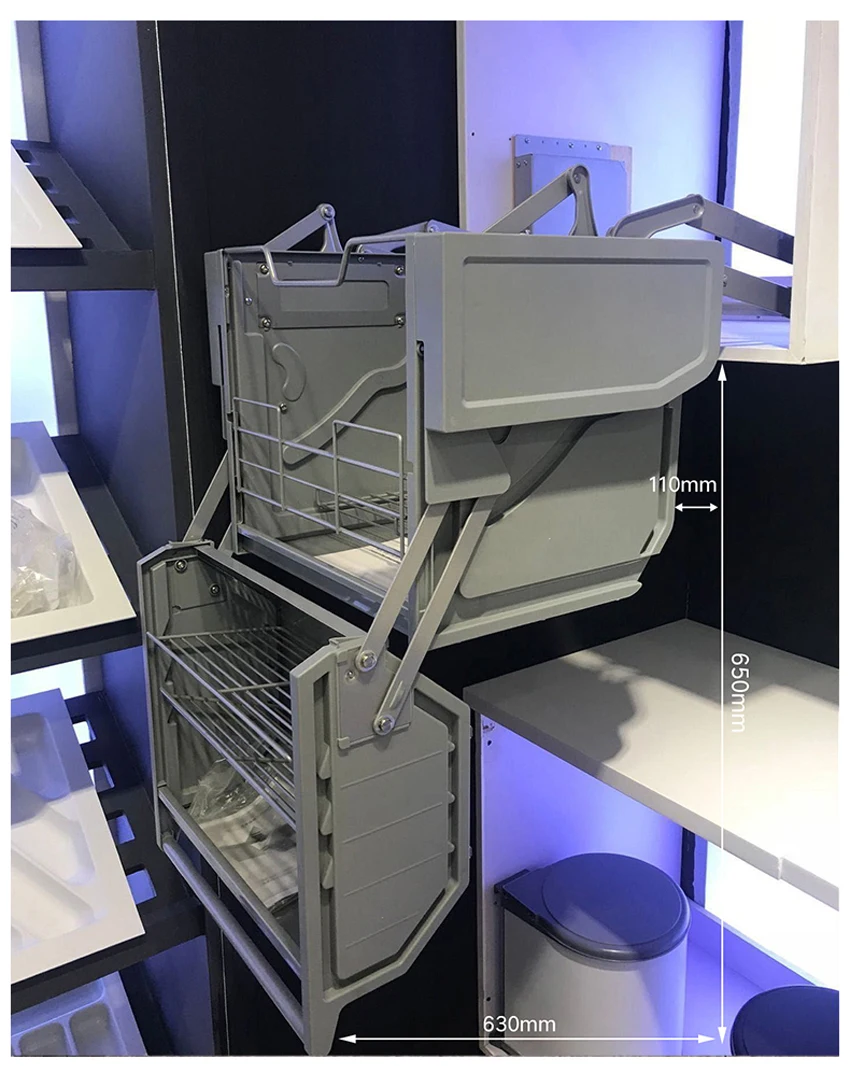

Pulldown stroke up to 650mm
Easy to access and place
Material: Iron chrome plated
Guide rail type: hydraulic damping

Pull-down tips: lightly lift the hand lever up, pull it out for a short period, and then pull down.NOTE: Due to structural limitations, there may be slight shaking during pull down.
The size is measured by hand, if there is an error, please understand

If you need other specifications, please contact us.
Attention: Our pull basket has very accurate requirements for the internal dimensions of the cabinet. Otherwise, it may result in the basket not being installed in your cabinet.
If you are unsure if your cabinet is suitable, please let us know the internal dimensions of your cabinet.
