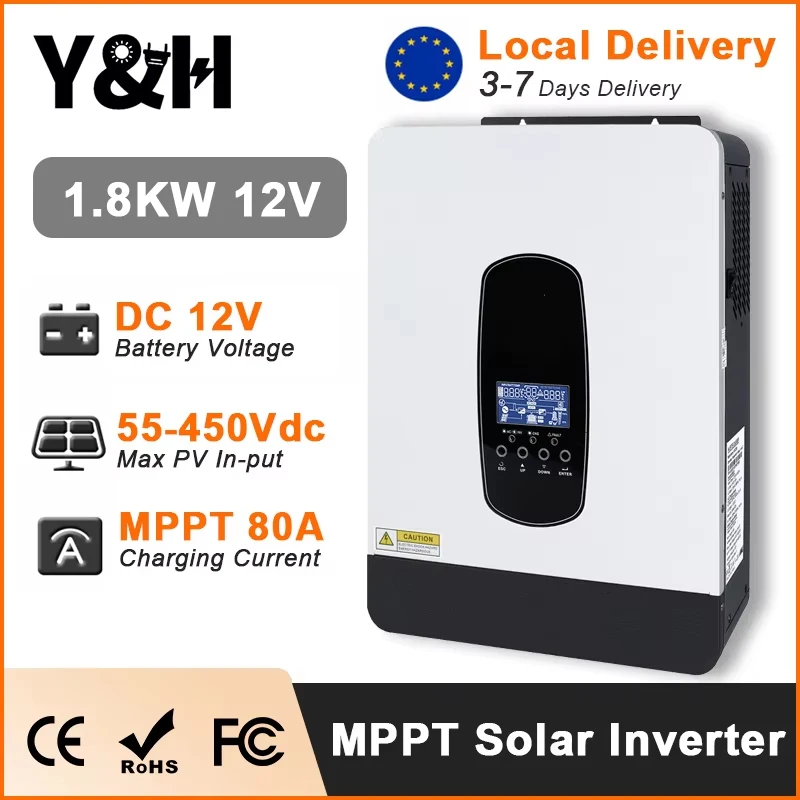

Y&H 1.8KW 3KW Hybrid Solar Inverter 12V 24V 220V Pure Sine Wave Inverter MPPT 80A Solar Charger Controller Off-grid Inverter
Price range: د.إ1,029.04 through د.إ1,183.52
- High-concerned chemical: None
- is_customized: Yes
- Output Current: MPPT 80A
- Model Number: SP
- Size: 34.80*28.20*10.50cm
- Output Type: SINGLE
- Weight: 6kg
- Brand Name: Y&H
- Output Frequency: 50Hz/60Hz(Auto sensing)
- Is Smart Device: Yes
- Origin: Mainland China
- Certification: CE
- Type: DC/AC Inverters
- Phase: Single Phase
- Input Voltage: 24V
- Rated Load Power: 3000W
- PV Array MPPT Voltage Range: 55~450Vdc
- Max. PV Array Open Circuit Voltage: 450Vdc
- Max Charging Current (AC charger plus solar charger): 80Amp
- Safety Certification: CE
- Nominal Input Voltage: 230VAC
- Feature 1: solar power inverter
- Feature 2: 12v solar regulator
- Feature 3: full sine solar Inverters
- Feature 4: 24V hybrid solar inverter
- Feature 5: sine wave inverter 12v 230v motorhome
- Feature 6: Hybrid Solar Inversor
Features：
|
Models |
SP-2200W-12V-M80A |
SP-3200W-24V-M80A |
|
RatedPower |
2200VA/1800W |
3200VA/3000W |
|
INPUT |
||
|
Voltage |
230Vac |
|
|
Selectable Voltage Range |
(170Vac~280Vac)±2%；(90Vac-280Vac)±2% |
|
|
Frequency Range |
50Hz/60Hz (Autodetection) |
|
|
OUTPUT |
||
|
AC Voltage Regulation (Batt.Mode) |
230VAC±5% |
|
|
Surge power |
4400VA |
6400VA |
|
Transfer Time |
10ms(forpersonalcomputers)/20ms(forhomeappliances) |
|
|
Waveform |
PureSineWave |
|
|
BATTERY&ACCHARGER |
||
|
Battery Voltage |
12VDC |
24VDC |
|
Floating Charge Voltage |
13.5VDC |
27VDC |
|
Overcharge Protection |
15.5VDC |
31VDC |
|
Maximum charge current |
60A |
60A |
|
SOLARCHARGER |
||
|
MAX PV Array Power |
2000W |
3000W |
|
MPPT Range@Operating Voltage |
55-450VDC |
|
|
MaximumPVArrayOpenCircuit Voltage |
450VDC |
|
|
MaximumChargingCurrent |
80A |
|
|
Maximum Efficiency |
98% |
|
|
PHYSICAL |
||
|
Dimension.D*W*H(mm) |
348x282x105mm |
|
|
Net Weight (kg) |
5 |
5.5kg |
|
Communi cati on Interface |
RS232/RS485(Standard)/GPRS/WIFI(Optional) |
|
|
OPERATINGENVIRONMENT |
||
|
Humidity |
5%to95%RelativeHumidity(Non-condensing) |
|
|
OperatingTemperature |
-10°Cto55°C |
|
|
StorageTemperature |
-15°Cto60°C |
|

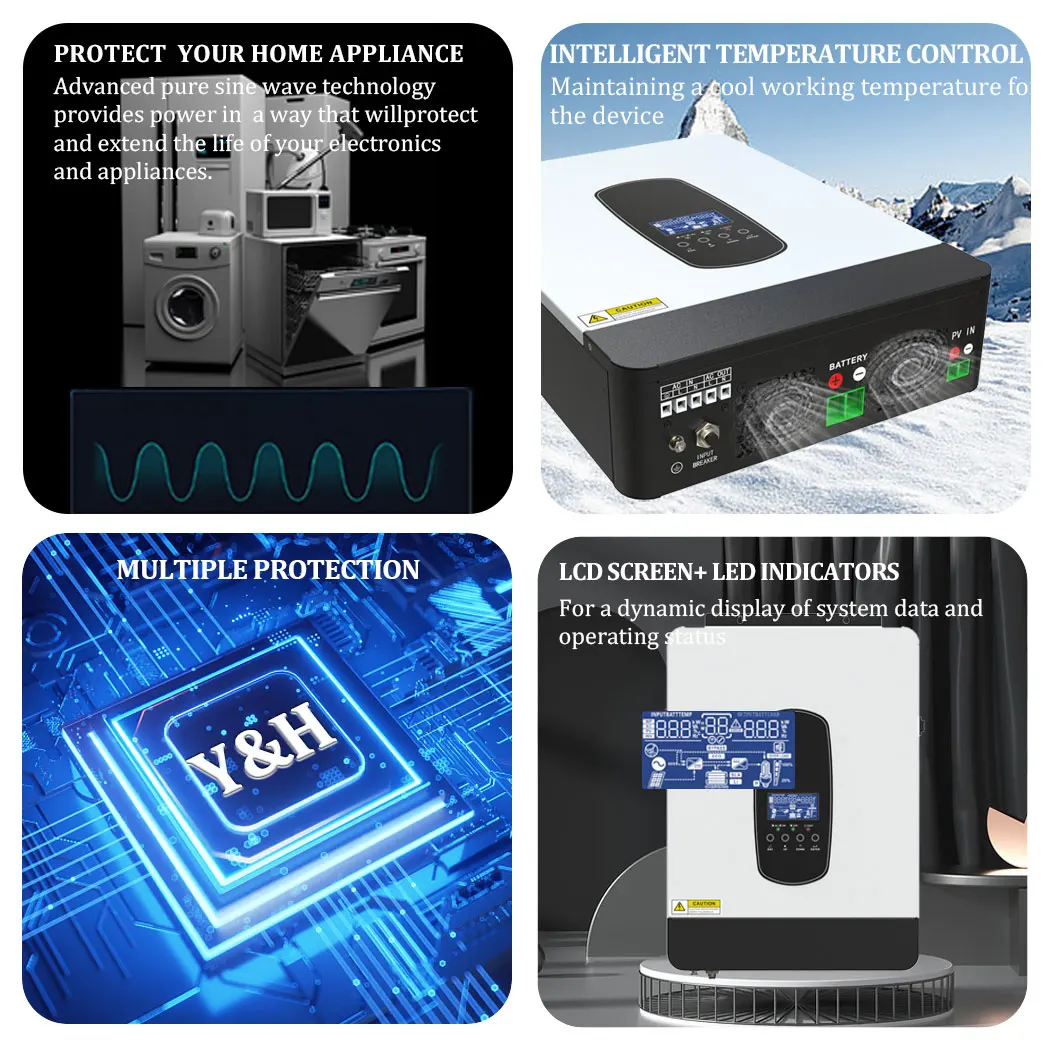

w/LCD & LED DISPLAY:LCD display designand 3 LED indicators for dynamic display of system data and operating status, Configurable battery charging current, AC/Solar Charger priority and Load Supply Priority via LCD setting.Support WIFI remote monitoring, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere. (Not included).

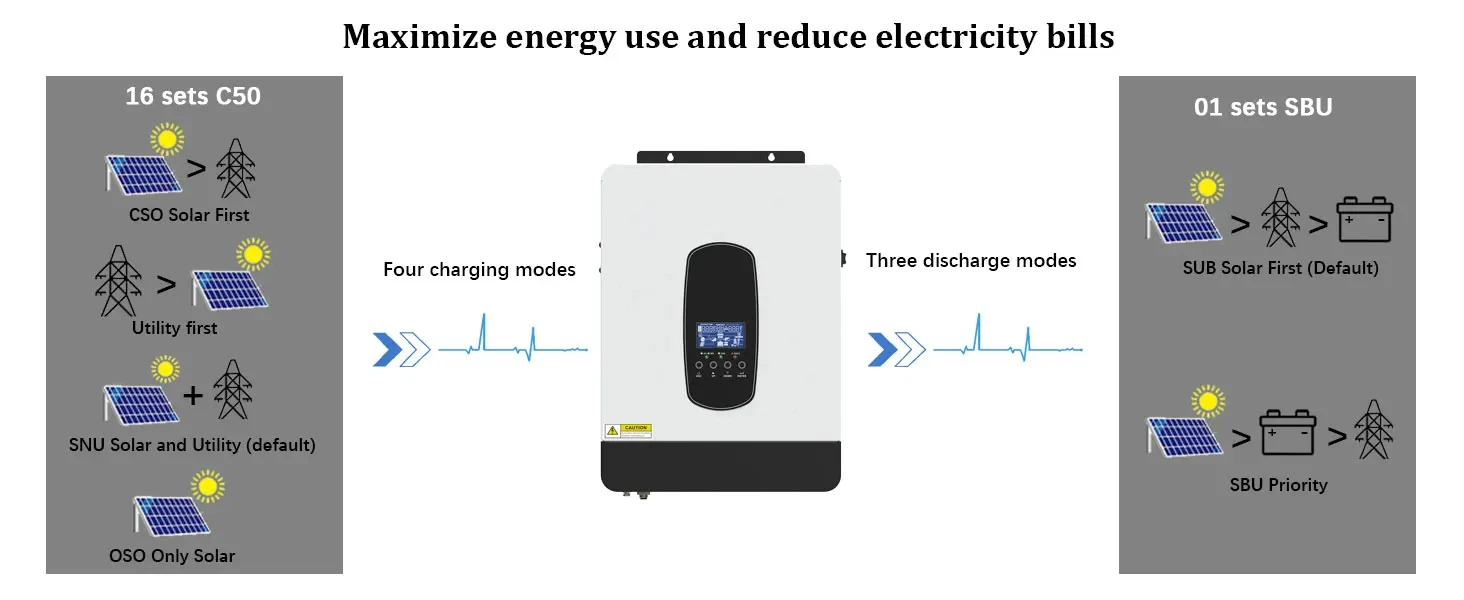

MULTIPLE CHARGING MODES:
Off Grid Solar Inverter have 4 charging modes are optional, i.e. Only Solar, Mains Frist , Solar Frist and Mains & Solar hybrid charging;and 3 output modes are available, i.e. Solar Frist, Mains Frist and SBU Priority, uninterrupted power supply to meet different application requirements. And compatible to mains voltage or generator power, Auto restart while AC is recovering.
Pure sine Wave Inverter:

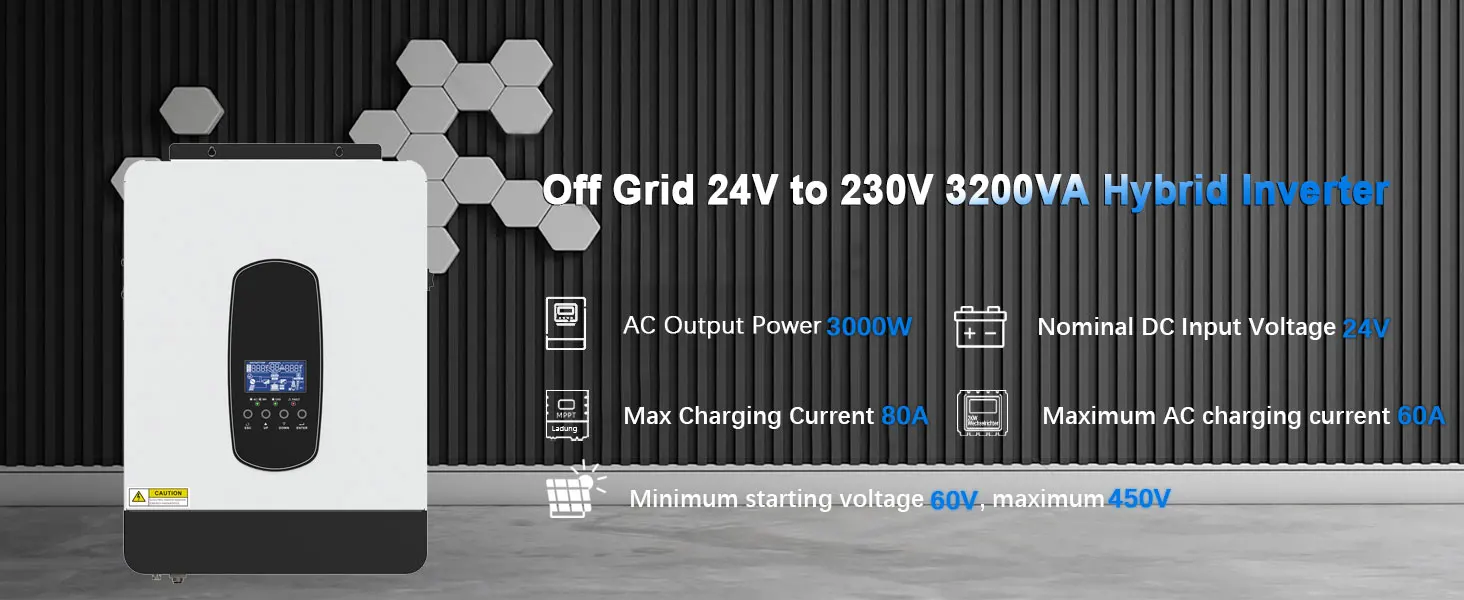

3200W Pure sine Wave Inverter 24V DC to AC 220/230/240V (Single phase/A Hot Leg 230V Output, Can't Output 110V AC), built in 80A Mppt charge controller, is a new all-in-one hybrid solar inverter charger, fit for 24V Lead-Acid (Seal, AGM,Gel, Flooded) and Lithium battery
WIDE RANGE OF USES:
MPPT Inverter Charger Pure sine Wave 2200W for RV Camping Boat Home Emergency ect.. Can be accessed to a variety of household and office loads, including Oven, rice cooker, lamps, televisions, fans and other AC loads.
Bulit in 80amp mppt controller, which integrates solar energy storage &means charging energy storage and AC sine wave output.It can be widely used in DC to AC areas, such as solar AC power system, vehicle system, RV power supply, security monitoring system, emergency lighting system, field power system, household power system, etc.
