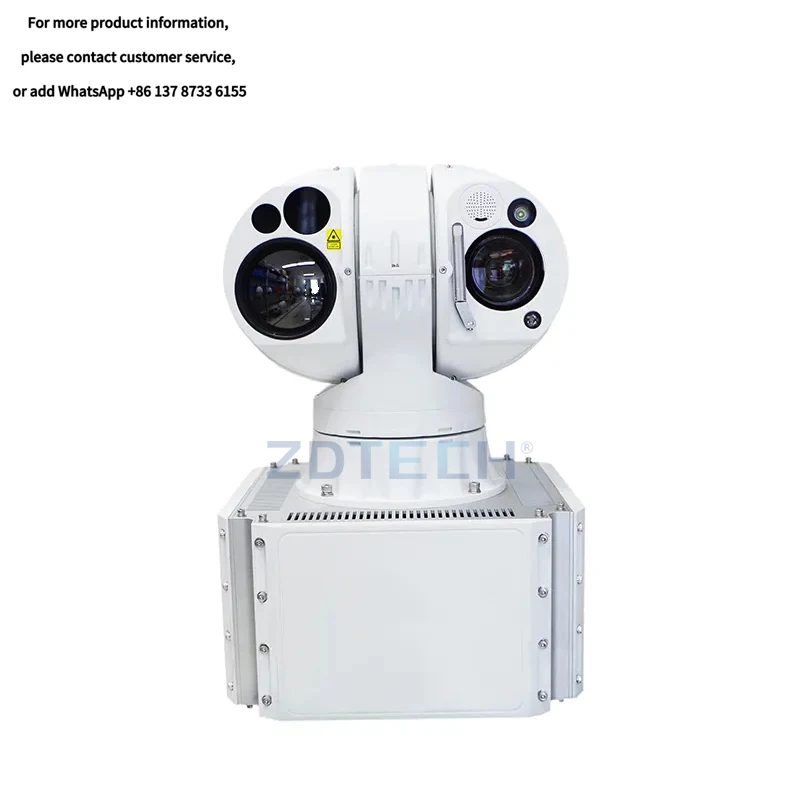

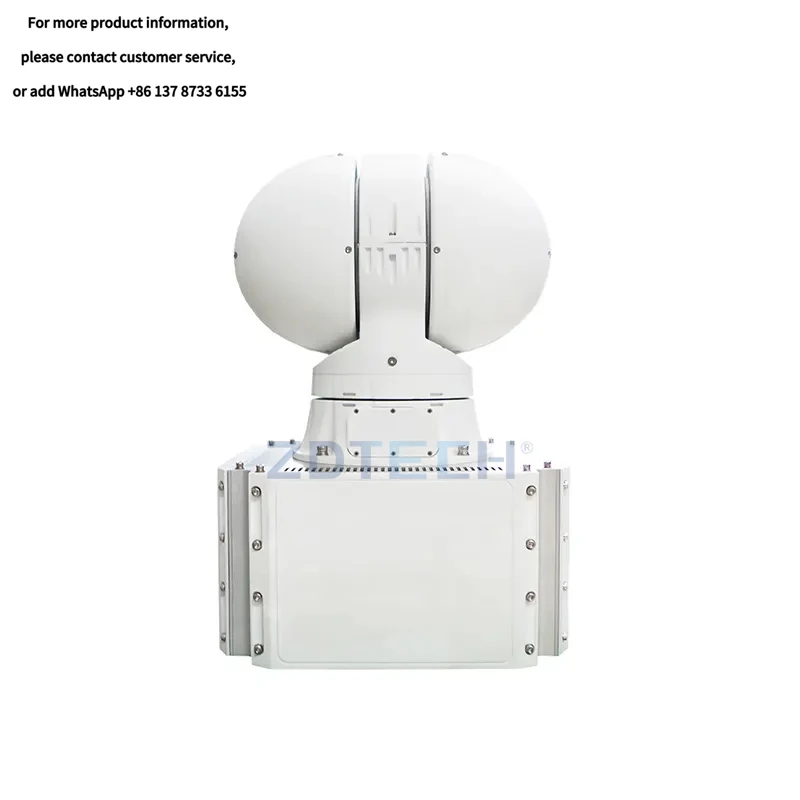

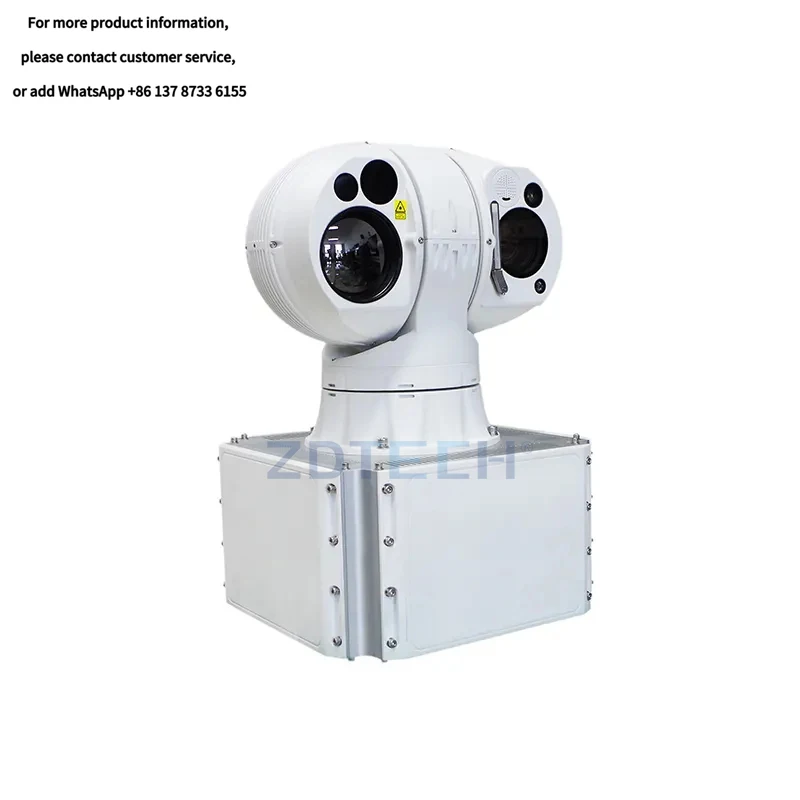

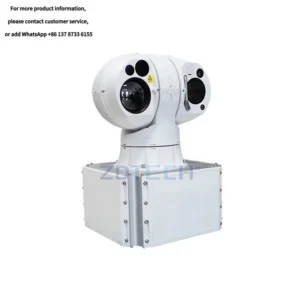

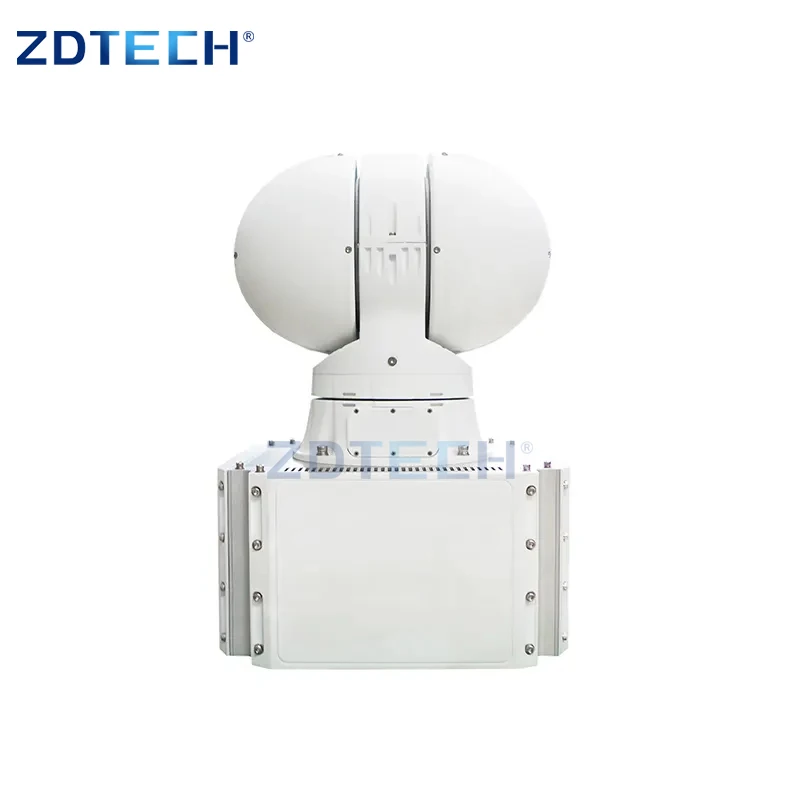

Zd-RDS500 Series Long Range Security Camera Optoelectronic Turntable
Original price was: د.إ69,671.81.د.إ54,189.19Current price is: د.إ54,189.19.
- Brand Name: NoEnName_Null
- High-concerned chemical: None
- Type: Other
- Origin: Mainland China
- Type: security protection products
- Application: Swat Teams, Anti-Drone, Protect of Prohibited Area
- feature: security
- Place of Origin: Guangdong, China
- Model NO.: ZD-RDS500 Series
- Radar Type: 1 Transmit 8 Receive Fmcw
- Distance Resolution: 1.5m
- Ranging Accuracy: ±0.75m
- Beam Width: Azimuth Plane (-6dB) : 360° Pitch (-6dB) : 13
- Lens Control: Supports Electric Zoom, Manual/Auto Focus
- Transport Package: Metal Box
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:0;margin-left:0;width:373px;height:373px}#detail_decorate_root .magic-4{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-5{vertical-align:top}#detail_decorate_root .magic-6{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-7{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-8{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-9{font-size:20px}#detail_decorate_root .magic-10{overflow:hidden;width:750px;height:148.22134387351778px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-11{margin-top:0;margin-left:0;width:750px;height:148.22134387351778px}#detail_decorate_root .magic-12{width:750px;border-collapse:collapse}#detail_decorate_root .magic-13{min-height:18px;padding:5px 10px;width:201px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-14{min-height:18px;padding:5px 10px;width:503px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-15{display:none}#detail_decorate_root .magic-16{min-height:18px;padding:5px 10px;width:235px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-17{min-height:18px;padding:5px 10px;width:504px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-18{text-align:left}#detail_decorate_root .magic-19{min-height:18px;padding:5px 10px;width:478px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-20{min-height:18px;padding:5px 10px;width:210px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-21{min-height:18px;padding:5px 10px;width:479px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-22{min-height:18px;padding:5px 10px;width:236px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-23{min-height:18px;padding:5px 10px;width:200px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-24{min-height:18px;padding:5px 10px;width:486px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-25{min-height:18px;padding:5px 10px;width:71px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-26{min-height:18px;padding:5px 10px;width:49px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-27{min-height:18px;padding:5px 10px;width:648px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-28{min-height:18px;padding:5px 10px;width:50px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-29{min-height:18px;padding:5px 10px;width:199px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-30{min-height:18px;padding:5px 10px;width:483px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-31{min-height:18px;padding:5px 10px;width:11px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-32{min-height:18px;padding:5px 10px;width:585px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-33{min-height:18px;padding:5px 10px;width:199px;box-sizing:content-box}#detail_decorate_root .magic-34{min-height:18px;padding:5px 10px;width:483px;box-sizing:content-box}#detail_decorate_root .magic-35{min-height:18px;padding:5px 10px;width:11px;box-sizing:content-box}#detail_decorate_root .magic-36{min-height:18px;padding:5px 10px;width:49px;box-sizing:content-box}#detail_decorate_root .magic-37{min-height:18px;padding:5px 10px;width:507px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-38{min-height:28px;padding:5px 10px;width:199px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-39{min-height:28px;padding:5px 10px;width:507px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-40{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-41{overflow:hidden;width:750px;height:623px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-42{margin-top:0;margin-left:0;width:750px;height:623px}#detail_decorate_root .magic-43{overflow:hidden;width:750px;height:574px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-44{margin-top:0;margin-left:0;width:750px;height:574px}#detail_decorate_root .magic-45{overflow:hidden;width:750px;height:685px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-46{margin-top:0;margin-left:0;width:750px;height:685px}#detail_decorate_root .magic-47{overflow:hidden;width:750px;height:490px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-48{margin-top:0;margin-left:0;width:750px;height:490px}
Product Description
Product Introduction
The ZD-RDS500 series radar-video fusion intelligent electronic sentry system uses radar to actively detect targets entering
the defense area. The PTZ camera images, recognizes and tracks the targets under the guidance of radar. The edge
intelligent box system integrates the radar and image information of the targets to detect, recognize and track them.
Determine whether it is the target of interest to decide whether to trigger the alarm.
Product Features
(1) Work around the clock at night
(2) All-round active and passive detection
(3) The whole machine has a high degree of intelligence
(4) Integrated design of detective and police
(5) Flexible deployment and easy to install and maintain
Application
It is applicable to intrusion alerts in key areas such as border and coastal defense military locations, airports, prisons,
transportation routes, water conservancy facilities, financial centers, nuclear, biological and chemical bases, as well as area control in squares, power transmission lines, chemical industrial parks, oil depots, oil/gas pipelines, etc

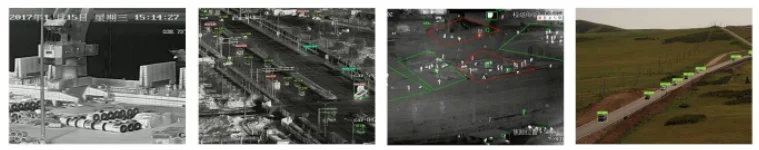

Effective Case
The ZD-RDS500 series radar-video fusion intelligent electronic sentry system uses radar to actively detect targets entering
the defense area. The PTZ camera images, recognizes and tracks the targets under the guidance of radar. The edge
intelligent box system integrates the radar and image information of the targets to detect, recognize and track them.
Determine whether it is the target of interest to decide whether to trigger the alarm.
Product Features
(1) Work around the clock at night
(2) All-round active and passive detection
(3) The whole machine has a high degree of intelligence
(4) Integrated design of detective and police
(5) Flexible deployment and easy to install and maintain
Application
It is applicable to intrusion alerts in key areas such as border and coastal defense military locations, airports, prisons,
transportation routes, water conservancy facilities, financial centers, nuclear, biological and chemical bases, as well as area control in squares, power transmission lines, chemical industrial parks, oil depots, oil/gas pipelines, etc
Effective Case
Specification
|
Item-Radar
|
Value
|
||
|
Radar type
|
1 transmit 8 receive FMCW
|
||
|
Ranging accuracy
|
±0.75m
|
||
|
Distance resolution
|
1.5m
|
||
|
Beam width
|
Azimuth plane (-6dB) : 360° Pitch (-6dB) : 13°
|
||
|
Item-Visible Light
|
Value
|
||
|
Sensor
|
1/2.8″ starlight CMOS
|
||
|
Resolution
|
1920×1080
|
||
|
Illumination
|
Color 0.01Lux, Black and White 0.001Lux
|
||
|
Lens focal length
|
4.7mm ~ 141mm/7mm ~ 300mm
|
||
|
Lens control
|
Support electric zoom, manual/automatic focus
|
||
|
Item-Illumination
|
Value
|
||
|
Illumination Angle
|
3° ~ 65°/1° ~ 20
|
||
|
Irradiation distance
|
200m/1000m
|
||
|
Item-PTZ(Pan/Tilt/Zoom)
|
Value
|
||||
|
Rotation speed
|
Horizontal: 0.01°/s~180°/s; Pitch: 0.01°/s~120°/s
|
||||
|
Rotation range
|
Horizontal: 360° continuous rotation; Pitch: -90° ~ +90°
|
||||
|
Preset position
|
No less than 255pcs
|
||||
|
Intelligent analysis
|
Supports regional intrusion detection, cross-border intrusion detection, motion detection, patrol detection, wandering detection,
gathering detection, retention detection and reverse detection, etc. Supports multi-scene tracking, alarm linkage tracking |
||||
|

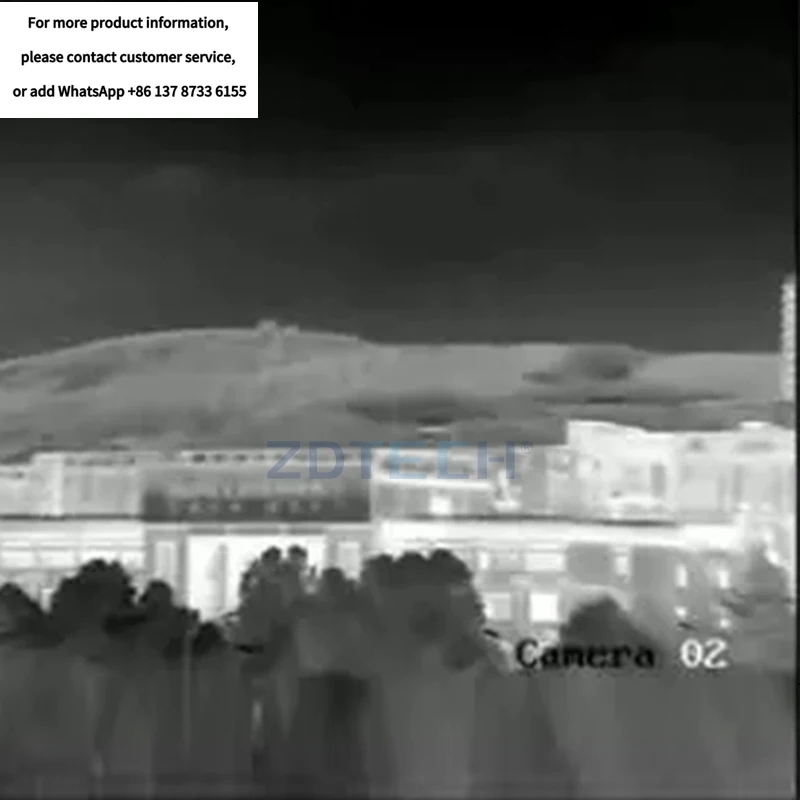

Item-Thermal imaging (Optional)
|
Value
|
||||
|
Detector
|
Uncooled focal plane array VOx detector
|
||||
|
Resolution
|
640×512
|
||||
|
Wavelength
|
8μm ~ 14μm
|
||||
|
NETD
|
Better than 40mK
|
||||
|
Lens focal length
|
50mm fixed focus
|
||||
|
High light protection
|
Supports anti-sun damage
|
||||
|
Item-Complete Machine
|
Value
|
|
Interface
|
Communication interface: 1 channel RJ45 network port;
Power supply interface: 1 channel AC220V |
|
Working environment
|
Operating temperature: -40ºC~60ºC;
Operating humidity: ≤95% RH |
|
Protection level
|
IP66
|
|
Item-Edge Smart Box
|
Value
|
|
AI performance
|
21 TOPS
|
|
Core number
|
GPU 384 cores and CPU 6 cores
|
|
Internal storage
|
8GB
|
|
Alarm access
|
Supports external RS485 vibration sensors
|
