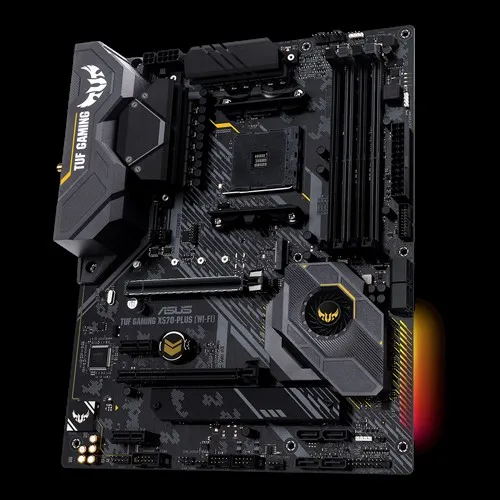

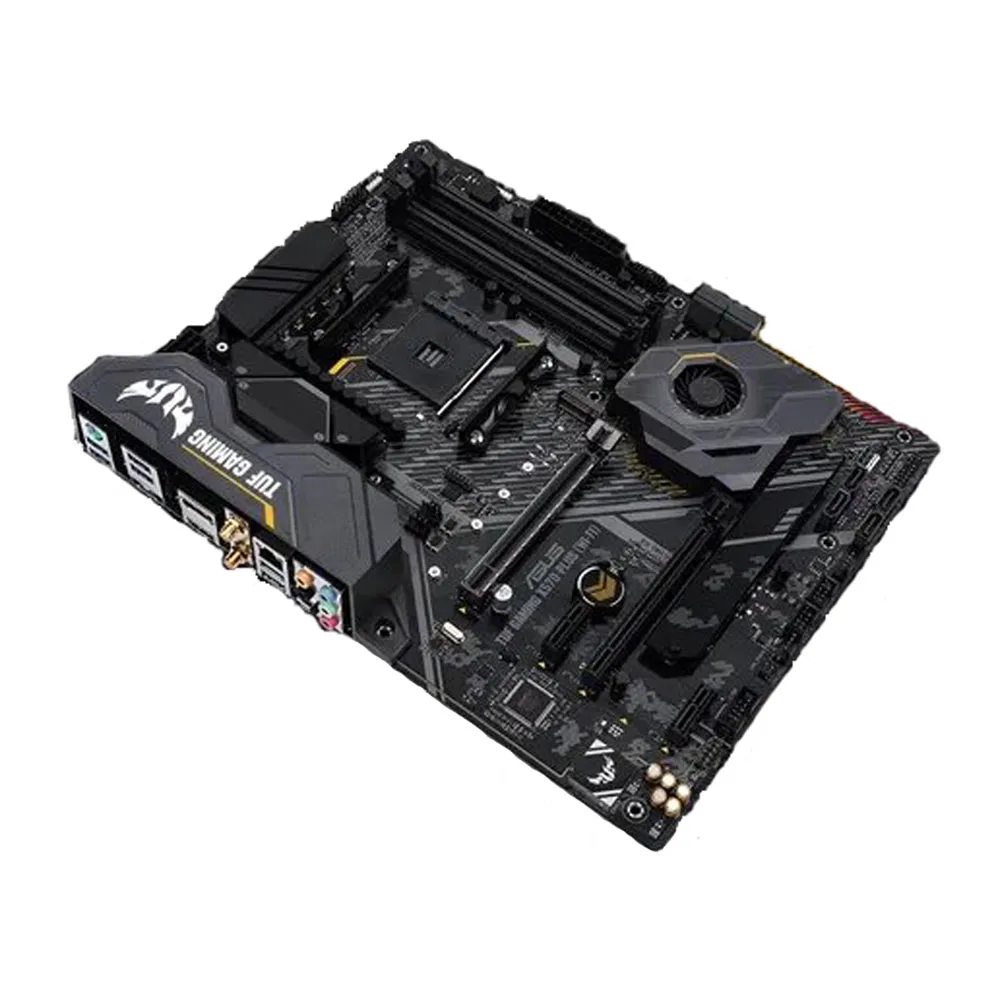

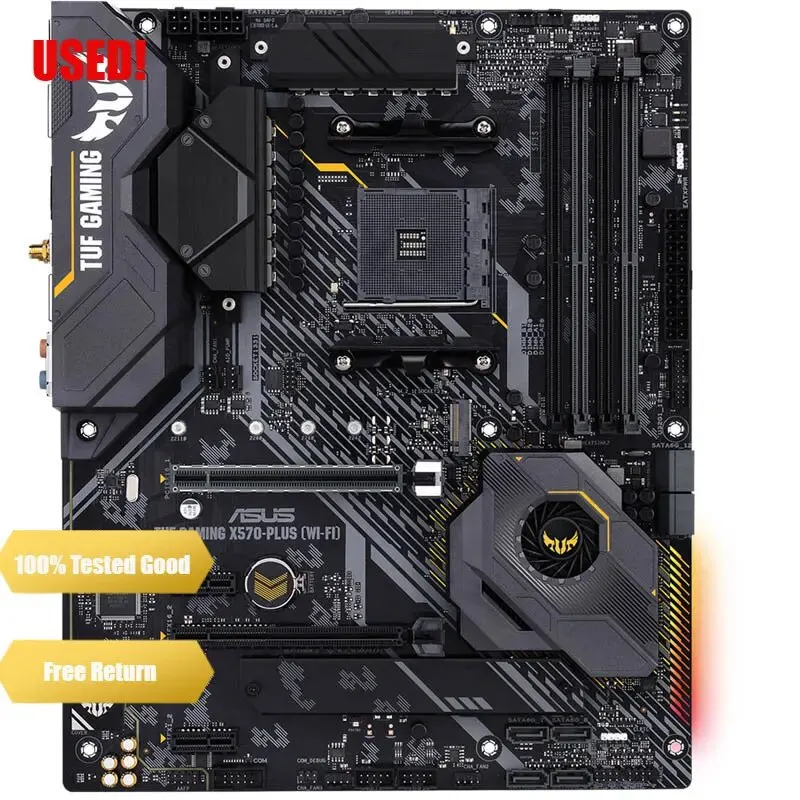

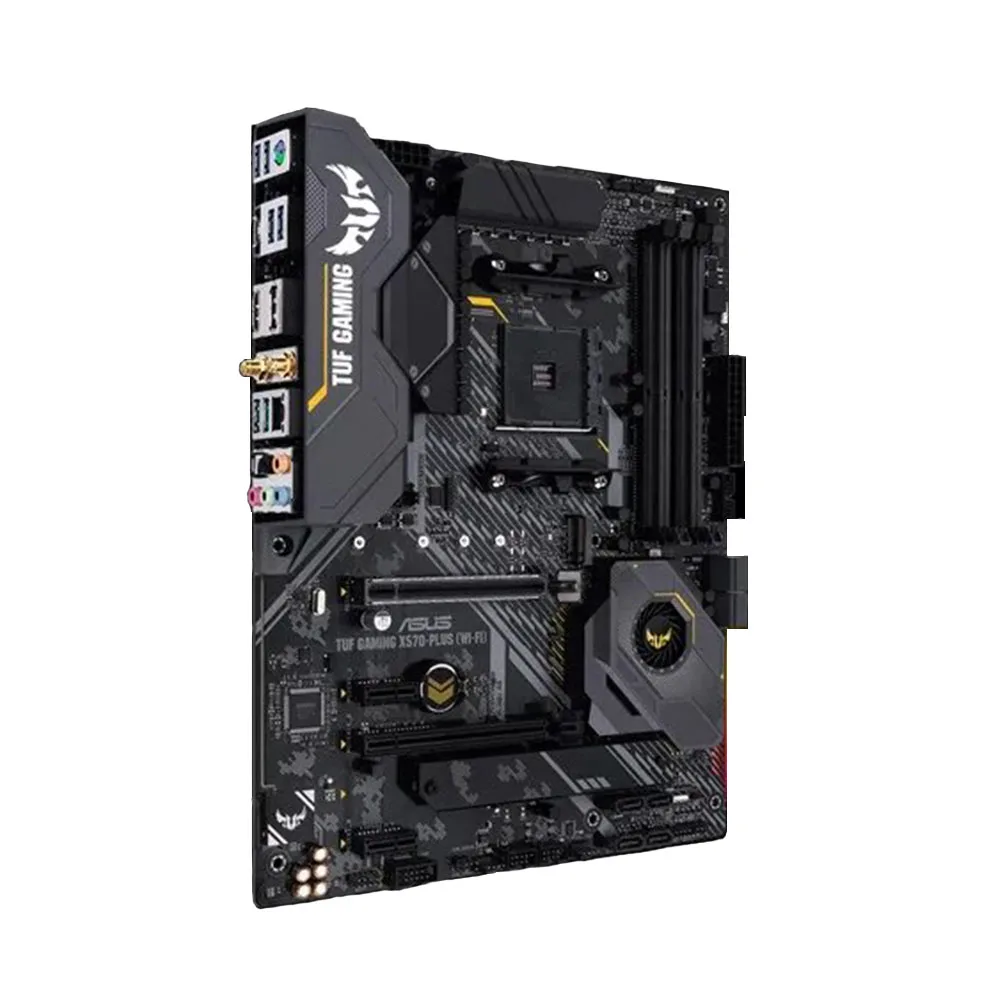

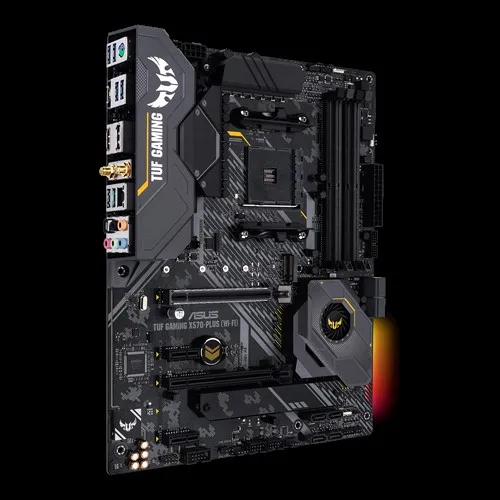

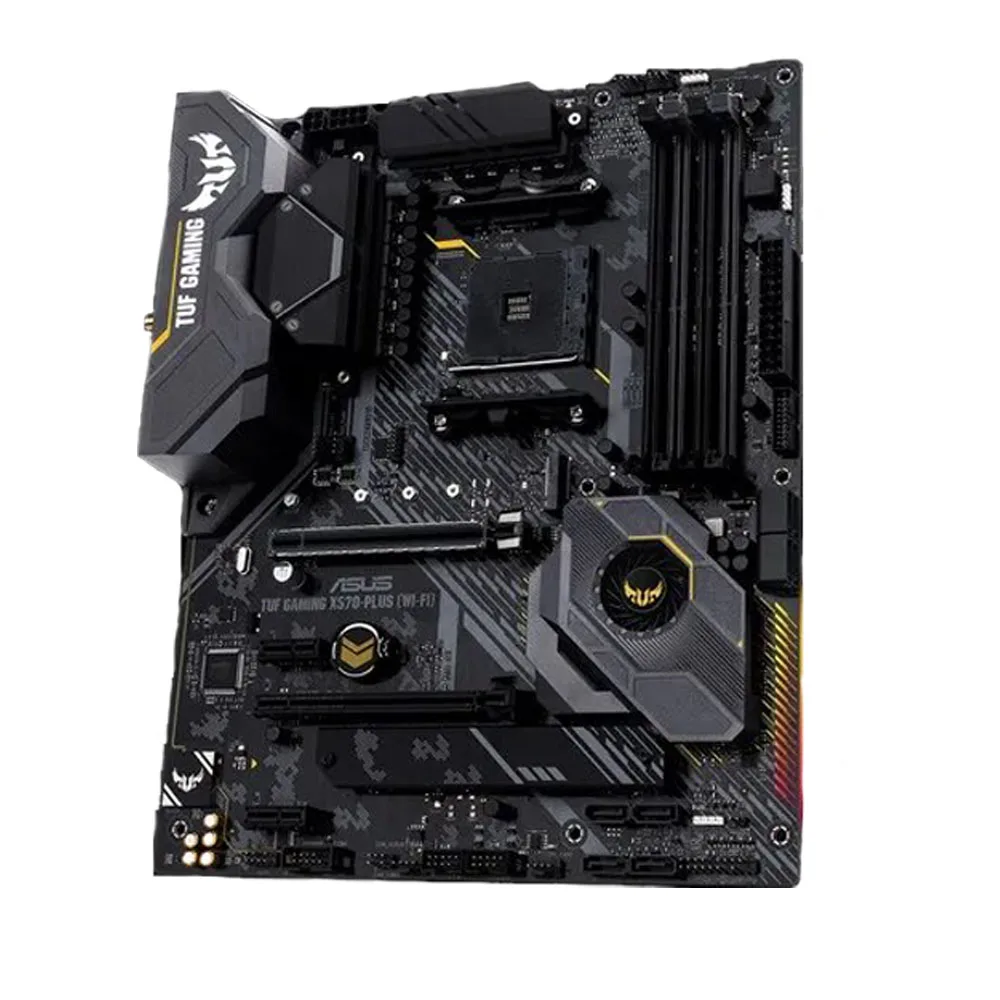

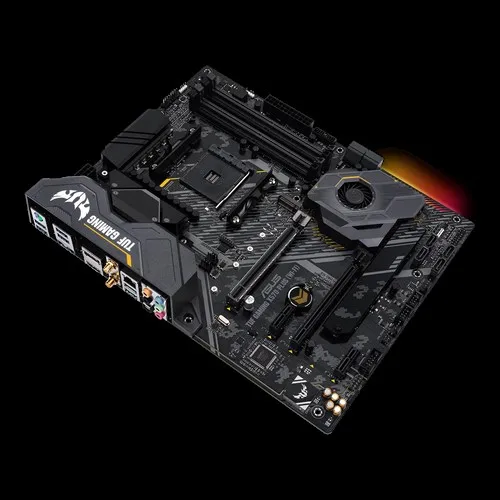

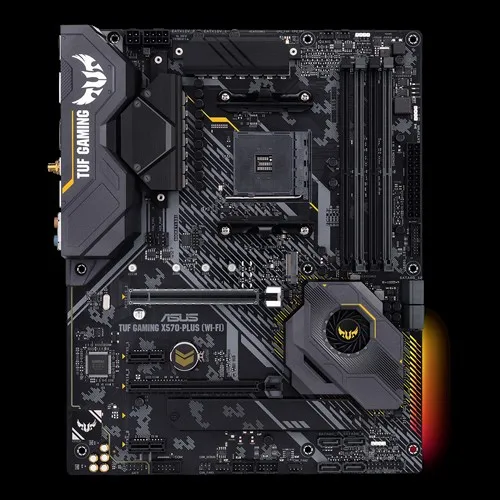

ASUS motherboard TUF GAMING X570-PLUS (WI-FI) AMD AM4 X570 ATX gaming agent motherboard supports PCIe 4.0, dual M.2, Wi-Fi
Original price was: د.إ674.43.د.إ537.85Current price is: د.إ537.85.
(In Stock)
- High-concerned chemical: None
- RAID Supported: Yes
- Processor compatibility: AMD Ryzen 4000 Series-R3,AMD Ryzen 5000 Series-R5,AMD Ryzen 3000 Series-R9,AMD Ryzen 2000 Series-R5
- Ports: HDMI
- Usage Scenario: Enthusiast & Overclocking,Gaming,Audio & Video
- Back I/O Ports: Disply Port,HDMI 1.4
- Onboard LAN: 1x RJ45
- Storage Interface Type: SATA,M.2 (NVMe)
- Number of PCI: 2
- PCI – E standards: PCI-E 4.0
- Support Memory Type: DDR4
- Memory channel: Double
- Package: No
- Maximum Ram Capacity: 128 GB
- Form Factor: ATX
- Chipset Manufacturer: AMD
- Battery Included: No
- With CPU: No
- Chipset: AMD X570
- Application: Desktop
- Socket Type: AM4
- Brand Name: Asus
- Special Features: None
- Origin: Mainland China
AMD AM4 socket: 3rd/2nd generation AMD Ryzen™/3rd generation, 2nd/1st generation AMD Ryzen™ with Radeon™ Graphics processor
Enhanced power supply solution: 12+2 Dr. MOS integrated high-efficiency power supply solution, 6-layer PCB, ProCool high-strength power supply solid interface, TUF certified components and Digi+ digital power supply design, providing better durability
Comprehensive cooling solution: South Bridge heat sink with built-in durable silent fan, VRM heat sink, M.2 heat sink, hybrid fan header and Fan Xpert 4 smart fan control
Gaming agent interconnection: dual PCIe 4.0 M.2 and USB 3.2 Gen 2 Type-A /Type-C interfaces
E-sports agent network: Onboard Realtek® L8200A Gigabit network card, Intel 802.11ac Wi-Fi wireless network card, support MU-MIMO technology, Bluetooth 5.0, TUF LANGuard network security protection and TurboLAN network acceleration
E-sports agent audio: onboard Realtek S1200A audio chip, with 108dB signal-to-noise ratio output and 103dB signal-to-noise ratio input, providing pure sound quality
AURA SYNC Divine Light Synchronization Lighting Effect: It can be synchronized with other AURA SYNC compatible devices to achieve lighting effect synchronization, and on-board programmable RGB light strip
TUF GAMING Agent Alliance: ASUS is actively working closely with industry partners to jointly form the TUF GAMING Agent Alliance ecosystem to provide better compatibility and integrated aesthetics.
CPU
AMD AM4 socket 3rd and 2nd generation AMD Ryzen™/3rd generation, 2nd and 1st generation AMD Ryzen™ with Radeon™ Graphics processor
*Please visit w3.asus.com.cn for the processor support list.
* Due to CPU limitations, supported CPU cores vary depending on the processor.
chipset
AMD X570
RAM
4 x DIMM, support up to 128GB, DDR4 5100(overclock)/4800(overclock)/4600(overclock)/4400(overclock)/4266(overclock)/4133(overclock)/4000(overclock)/3866(overclock)/ 3733(overclock)/3600(overclock)/3466(overclock)/3400(overclock)/3200(overclock)/3000(overclock)/2933/2800/2666/2400/2133 MHz Un-buffered memory
Support dual channel memory architecture
* Please visit w3.asus.com.cn or refer to the user manual for the memory qualified supplier support list (QVL).
* Whether to support a larger memory frequency depends on the processor.
Graphic display
Integrated graphics core in the 3rd, 2nd and 1st generation AMD Ryzen™ equipped with Radeon™ Graphics processor
Support Multi-VGA output: HDMI/DisplayPort interface
-Support DisplayPort: display resolution up to 4096 x 2160 @ 60 Hz
-Support HDMI 1.4b: display resolution up to 4096 x 2160 @ 24 Hz
Multiple graphics display technology
Support AMD® CrossFireX™ technology
3rd and 2nd generation AMD Ryzen™/3rd generation, 2nd and 1st generation AMD Ryzen™ equipped with Radeon™ Graphics processor
Expansion slot
3rd generation AMD Ryzen™ processor
1 x PCIe 4.0 x16 (x16 mode)
2nd generation AMD Ryzen™ and 3rd generation AMD Ryzen™ equipped with Radeon™ Graphics processors
1 x PCIe 3.0 x16 (x16 mode)
2nd and 1st generation AMD Ryzen™ with Radeon™ Vega Graphics processor
1 x PCIe 3.0/2.0 x16 expansion card slot (x8 mode)
AMD X570 chip
1 x PCIe 4.0 x16 (maximum x4 mode)
2 x PCIe 4.0 x1
Storage function (depending on shipment)
3rd generation AMD Ryzen™ processor:
1 x M.2 Socket 3 slot, support M Key, support 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA mode) storage devices
2nd Gen AMD Ryzen™/3rd Gen, 2nd and 1st Gen AMD Ryzen™ with Radeon™ Graphics processor:
1 x M.2 Socket 3 slot, support M Key, support 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA mode) storage devices
AMD X570 chip:
1 x M.2 Socket 3 slot, support M Key, support 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA mode) storage devices
8 x SATA 6Gb/s ports
Support Raid 0, 1, 10
Network features
Realtek® L8200A
ASUS Turbo LAN network acceleration master
TUF LANGuard network security protection
Wireless connections
Intel® Wireless-AC 9260
Wi-Fi 802.11 a/b/g/n/ac
Support dual frequency 2.4/5 GHz
Support channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transmission rate
Support 2×2 MU-MIMO
Bluetooth
Bluetooth® 5.0
Sound effect
Realtek ALC S1200A 8-channel high-fidelity audio chip
Audio function:
-DTS game sound customization
-Audio dividing line design
-Layered design of left and right channels
-High quality Japanese audio capacitors
-Audio protective cover
USB interface
AMD X570 chipset:
3 x USB 3.2 Gen 2 ports (3 @back,, 2 x Type-A+1 x USB Type-C®)
3rd and 2nd generation AMD Ryzen™/3rd generation, 2nd and 1st generation AMD Ryzen™ equipped with Radeon™ Graphics processors:
4 x USB 3.2 Gen 1 ports (4 @after,)
AMD X570 chipset:
2 x USB 3.2 Gen 1 ports (2 @front)
AMD X570 chipset:
4 x USB 2.0 ports (4 @front)
other functions
ASUS TUF Guardian
-ASUS SafeSlot high-strength slot: strong protection of graphics card and motherboard slots
-ASUS ESD Guard: Enhance the electrostatic protection of each motherboard interface
-ASUS Over-Voltage Protection: Protect the motherboard and other accessories from unstable power supply and poor quality power supply
-ASUS stainless steel moisture-proof I/O backplane interface: stronger durability, enhanced durability!
-ASUS DIGI+ digital power supply design: stable power supply provides accurate control
-ASUS LANGuard Network Security Protection: Protect network cards and motherboards from power surges and static electricity
ASUS features:
-Ai Charger charging technology
-AI Suite 3 (Smart Butler 3rd Generation)
ASUS silent cooling solution:
-Fashion design: MOS heat sink with dual heat sink design, PCH fan, PCH and M.2 heat sink
-ASUS Smart Fan Control 4
ASUS EZ DIY:
-ASUS CrashFree BIOS 3
-ASUS EZ Flash 3
-ASUS UEFI Chinese Graphical BIOS EZ Convenient Mode
ASUS Q-Design:
-ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
-ASUS Q-Slot
-ASUS Q-DIMM
AURA:
-Aura lighting effect control
-Aura RGB light with header
-2nd generation programmable header
DIY personalized design
-Procool power connector
-SafeSlot high-strength security slot
-Digi+ digital power supply design
-High durability components
-ESD protection

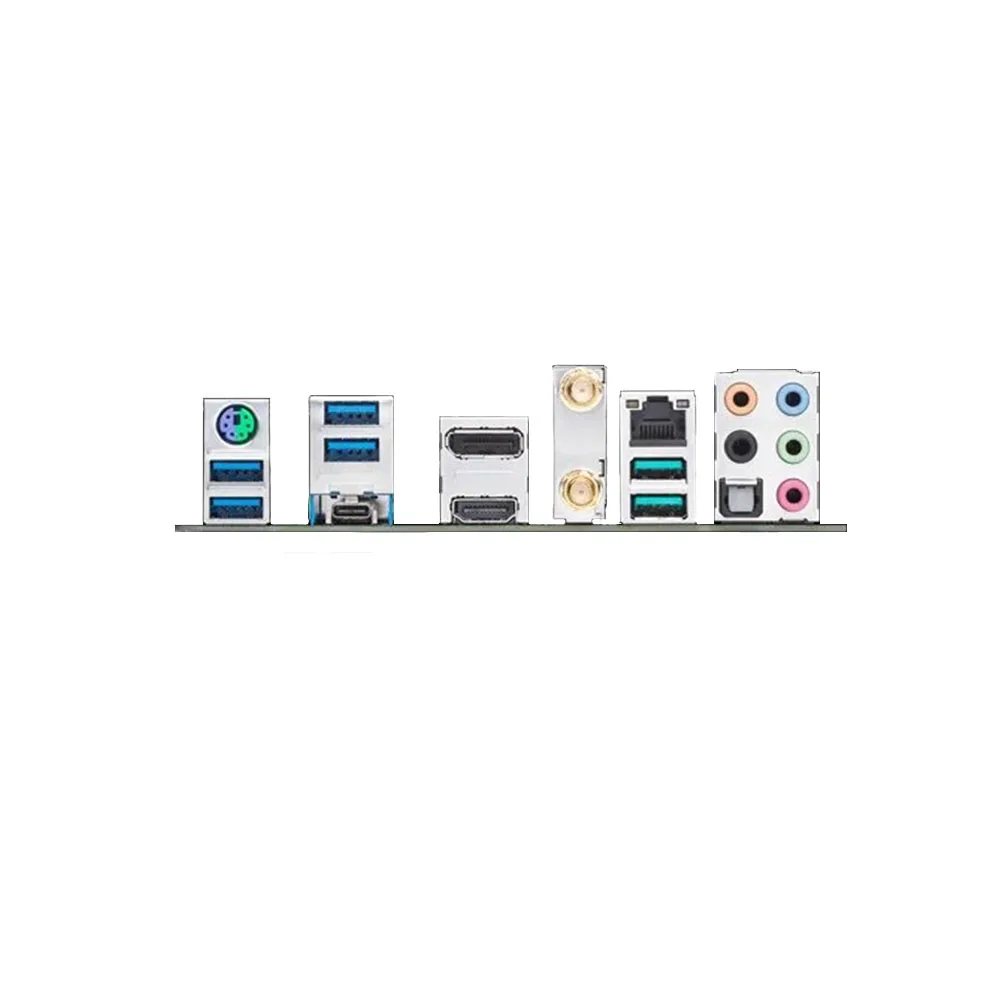

Backplane I/O interface
1 x PS/2 keyboard and mouse interface
1 x DisplayPort connector
1 x HDMI port
1 x LAN (RJ45) port
1 x optical S/PDIF digital audio output interface
5 x audio jack
ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)
4 x USB 3.2 Gen 1 (up to 5Gbps) ports
3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM)
Internal I/O interface
1 x CPU fan header
1 x CPU optional fan interface
3 x chassis fan connector
1 x Gen 2 programmable header
1 x USB 3.2 Gen 1 (up to 5Gbps) port supports additional 2 USB ports
2 x USB 2.0 ports can expand 4 sets of external USB 2.0 ports
1 x M.2 Socket 3 slot, support M key, 2242/2260/2280/22110 type storage devices (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3 slot, support M key, 2242/2260/2280/22110 type storage devices (SATA mode & X4 PCIE mode)
2 x RGB light with header
1 x SPI TPM header
8 x SATA 6Gb/s device connection sockets
1 x 24-pin EATX motherboard power socket
1 x 8-pin ATX 12V motherboard power socket
1 x 4-pin ATX 12V motherboard power socket
1 x front panel audio interface (AAFP)
1 x system panel socket
1 x AIO_Water pump interface
1 x Clear CMOS jumper
1 x serial port connection socket (COM)

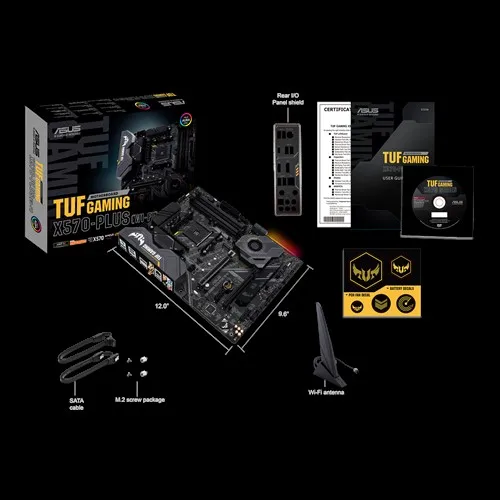

Accessories
User manual
I/O baffle
2 x SATA 6.0Gb/s data cable
1 x ASUS 2T2R dual-band Wi-Fi antenna (compatible with Wi-Fi 802.11a/b/g/n/ac)
1 x M.2 screw pack
1 x random CD
1 x TUF product brochure
1 x TUF GAMING sticker
BIOS
256Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multilingual BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 Favorites, F4 AURA ON/OFF, History, F9 Search, F12 screenshots and ASUS DRAM SPD (Serial Presence Detect) memory information
Management software
WOL by PME, PXE
operating system
Windows® 10 64-bit
Dimensions
ATX board structure
12.0 inch x 9.6 inch (30.5 cm x 24.4 cm)
