Tuya Wifi Smart Switch RF 433MHz Wireless Light Switch16A Relay Control Mini Round Button Switch Support Alexa Google Home Alice
Price range: د.إ22.16 through د.إ37.16
- High-concerned chemical: None
- Material: Plastic
- Certification: ce
- Switch Type: Push Button Switch
- Model Number: Smart
- Item Type: SWITCHES
- Brand Name: GGBEE
- Is Smart Device: Yes
- Origin: Mainland China
- Certification: CE

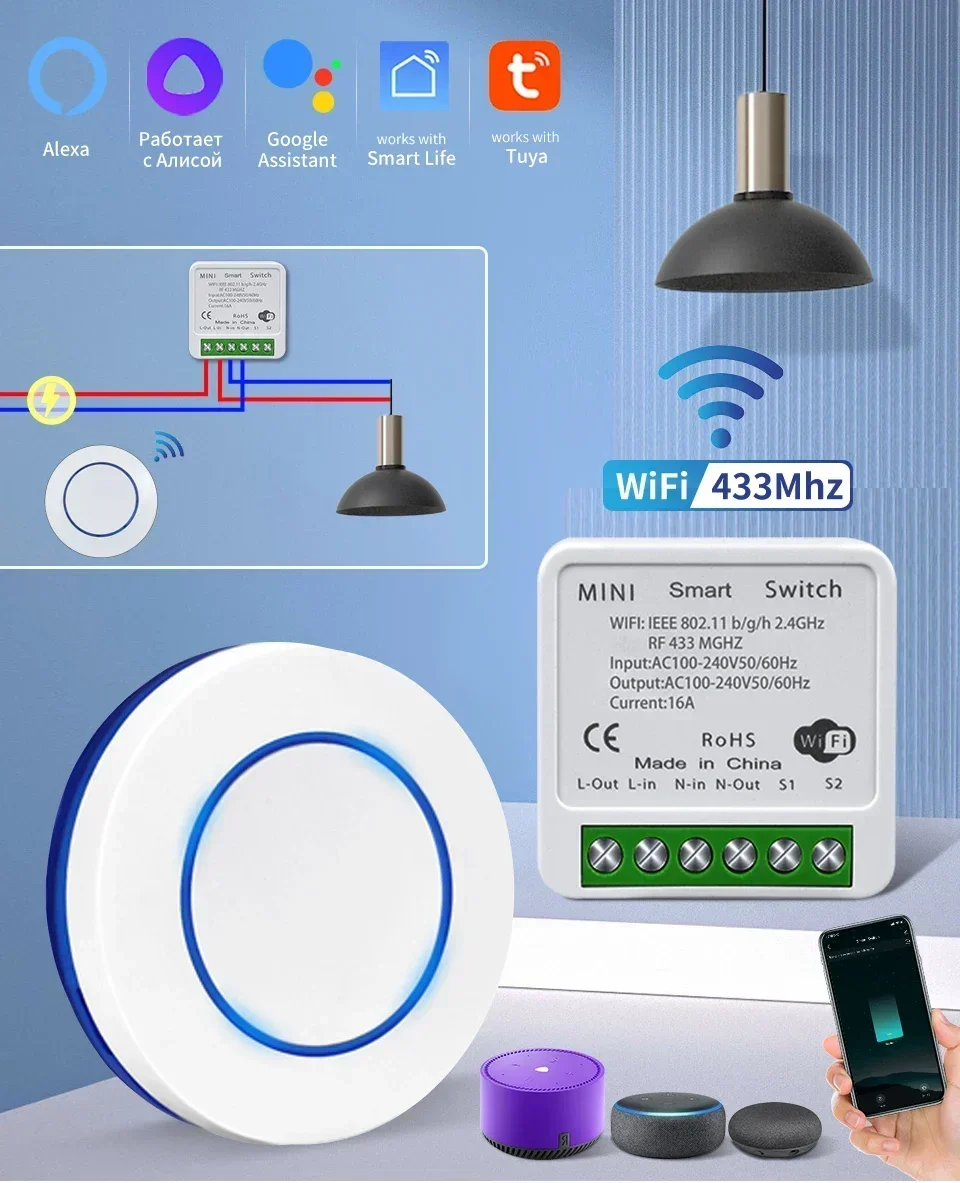

- Features: WiFi 433MHz Wireless switch
- Current: 16A

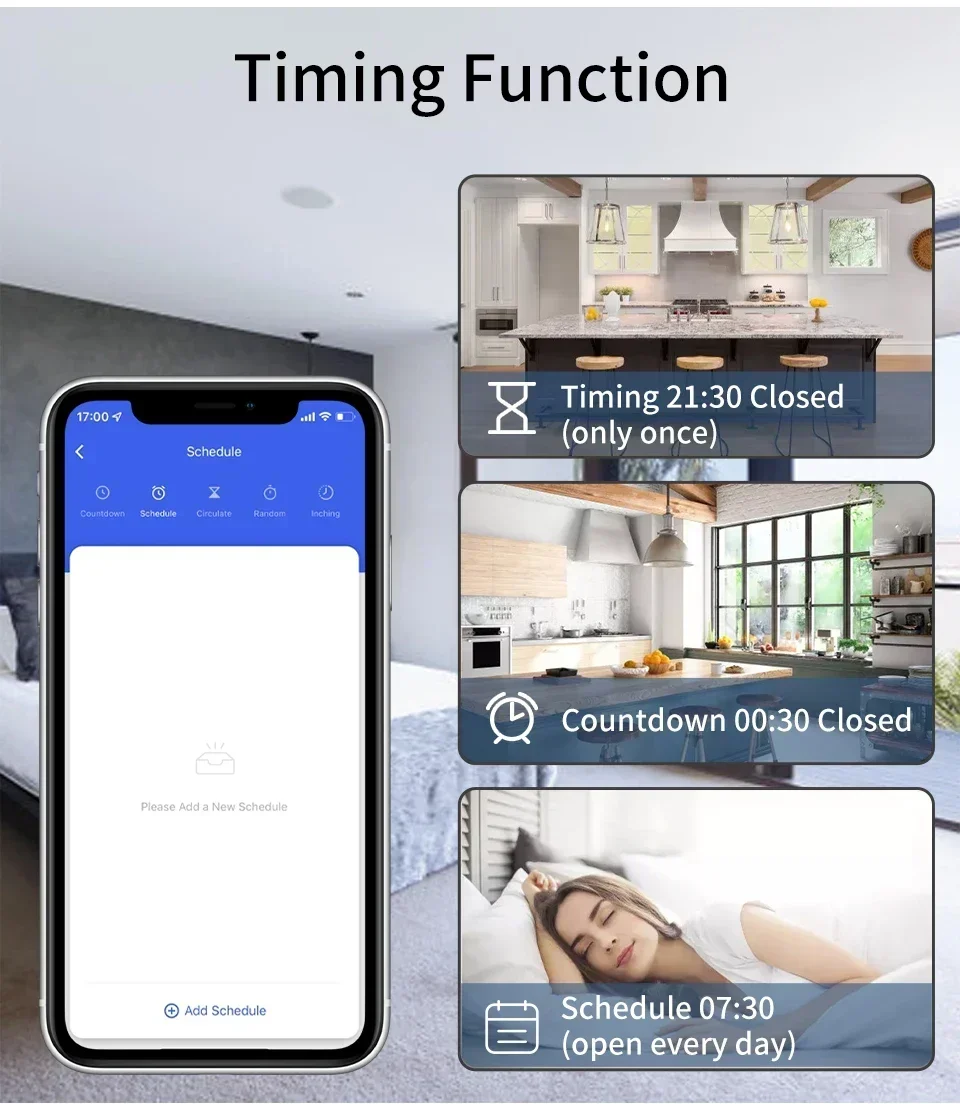

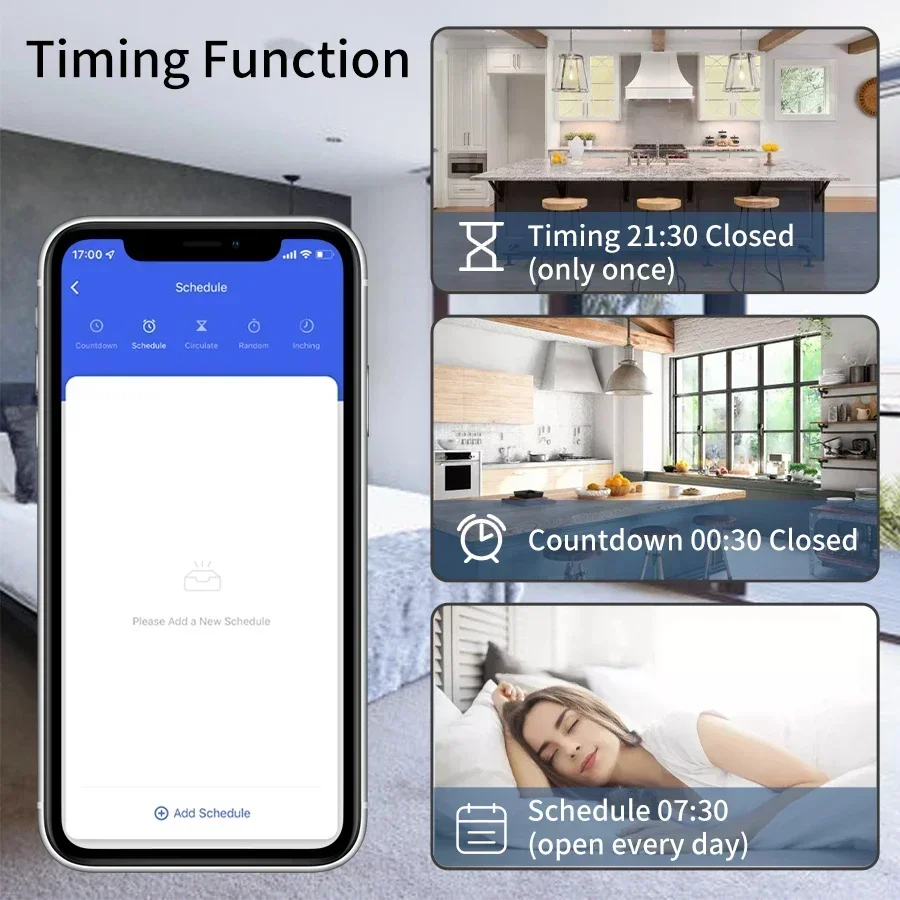

- Features 1: Timer,Voice control,remote control
- Working frequency: 433.92MHZ +2.4GHz WIFI
- Working Voltage: AC 85-265V

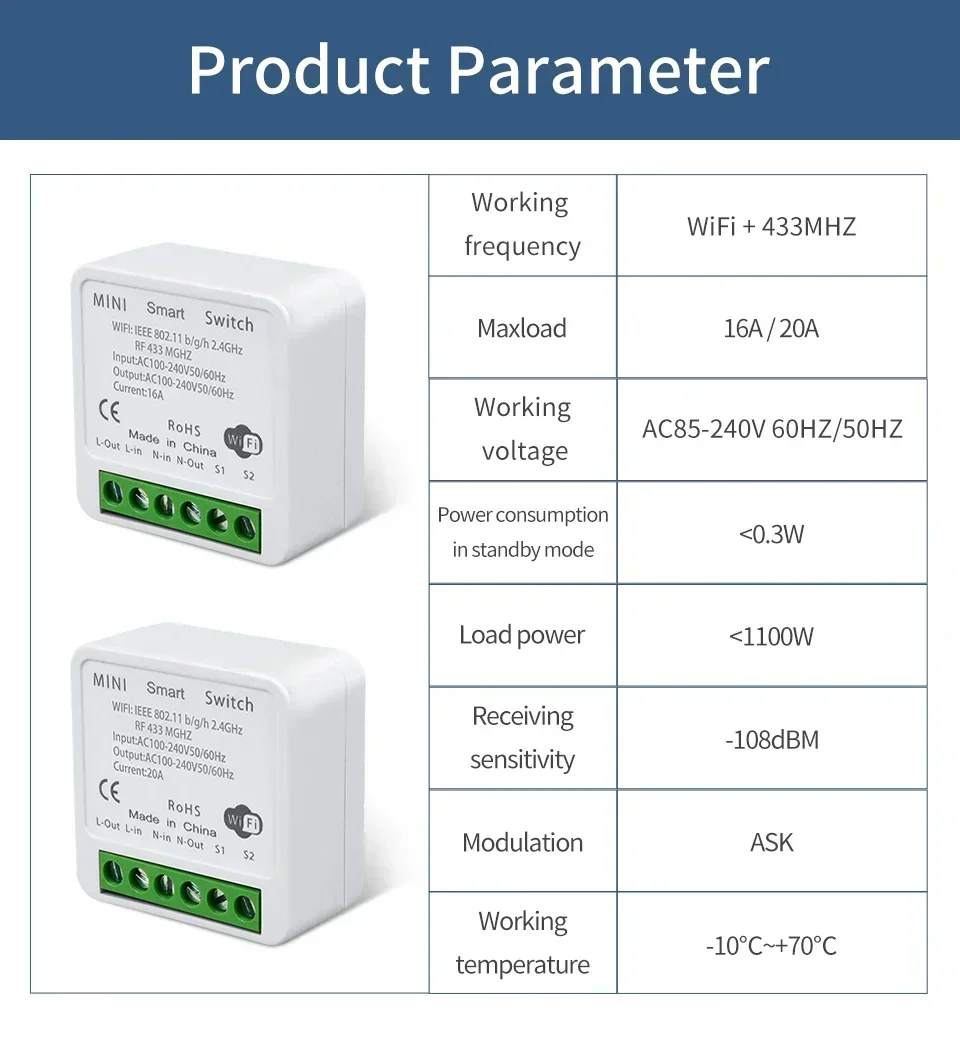

Controller (Receiver)
1) Working voltage: AC85-240V 60HZ/50HZ
2) Working frequency: WiFi+433MHZ
3)Max current:16A
4) Power consumption in standby mode: <0.3W
5) Load power: <1100W
6) Receiving sensitivity: -108dBM
7) Working way:wireless control
8) Modulation: ASK
9) Working temperature: -10*C~+70"C
RF Remote Parameters:
Battery :CR2016(Included)
Code :1527 learning code.
Frequency :433MHz.
Material :Plastic.

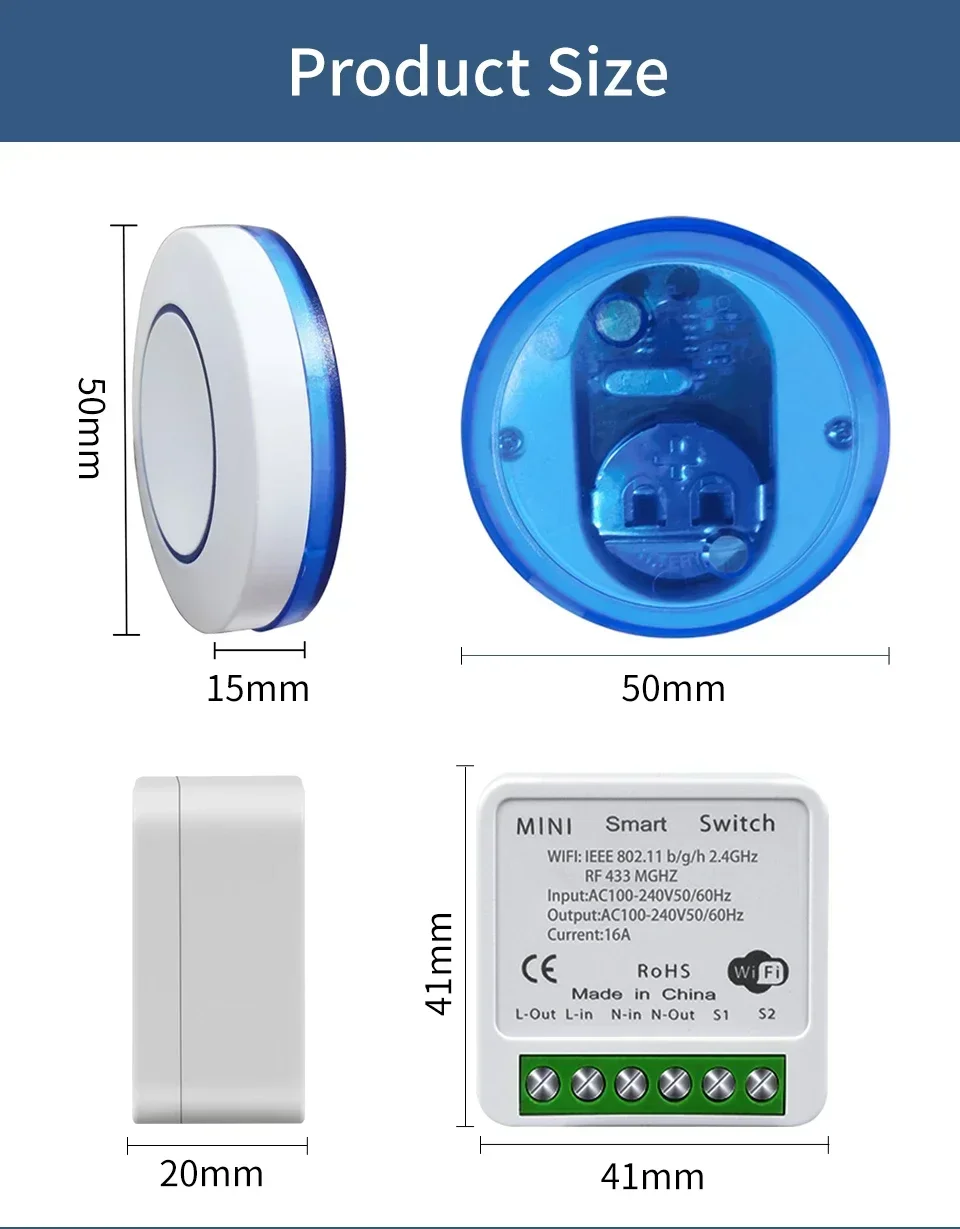

Size: 50*50*13 mm.
Feature :Has double side tapes.

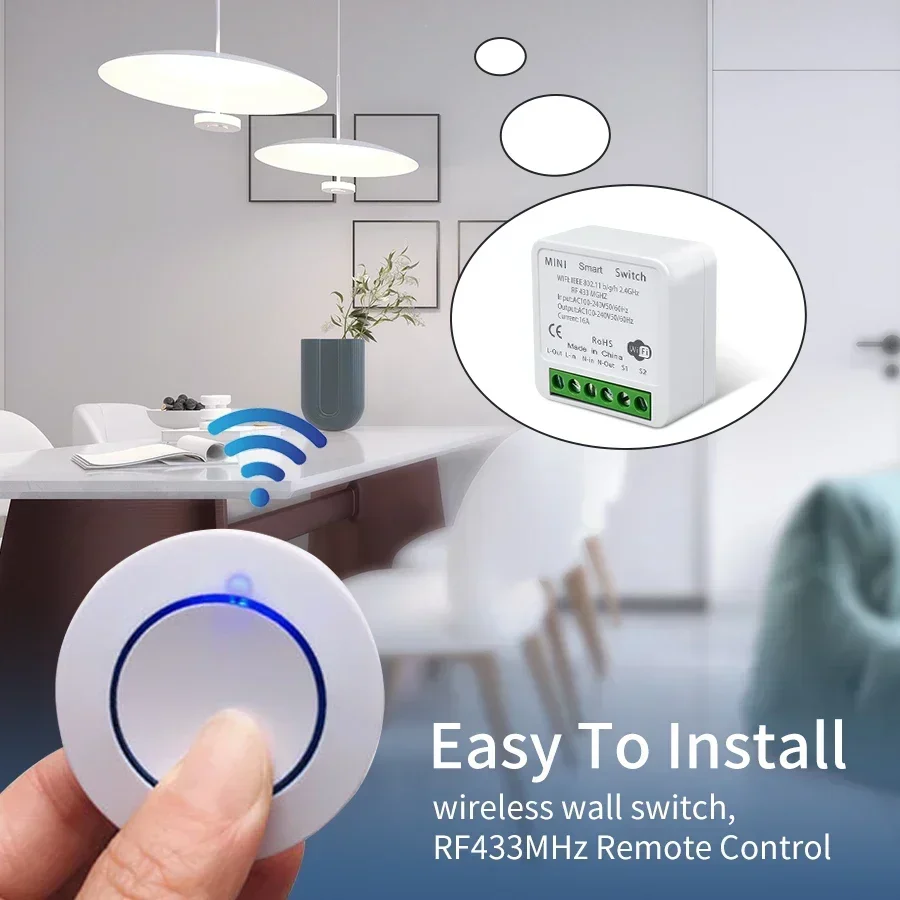

Note : Remote control has no WiFi function, only 433MHz function.
433MHZ wireless switch signals

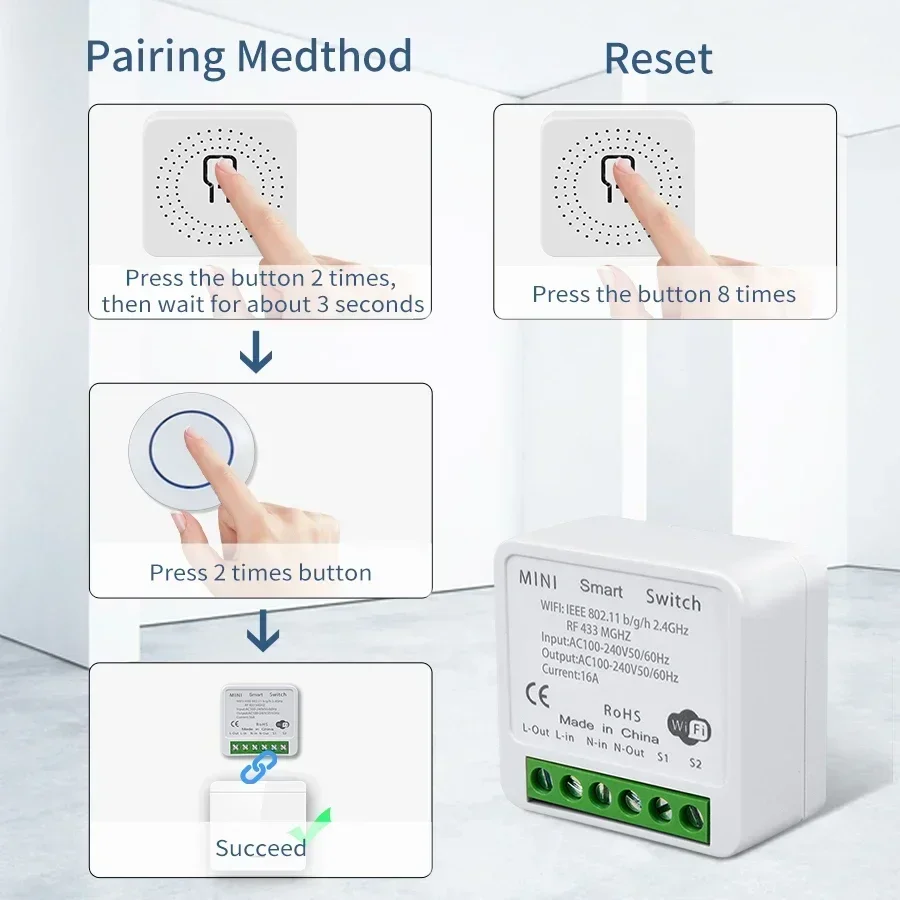

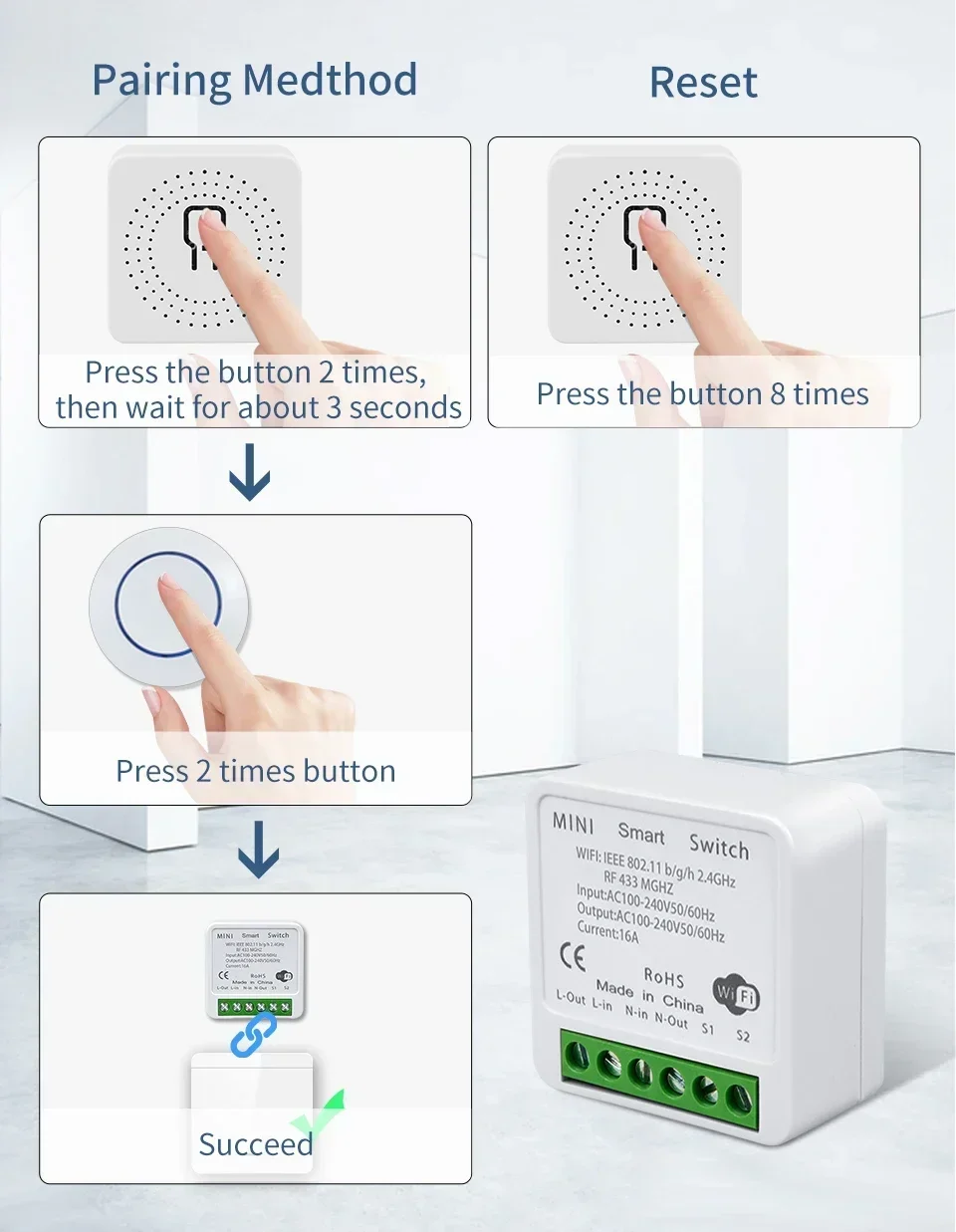

How to get the signals
Step 1: Press the learning button(on the Receiver) twice . Wait for 3 seconds;
Step 2: Press one button on the remote control. Wait for 3 seconds. Succeed.
How to clear the signals
Only one step :Press the learning button(on the Receiver) 8 times.
Note:

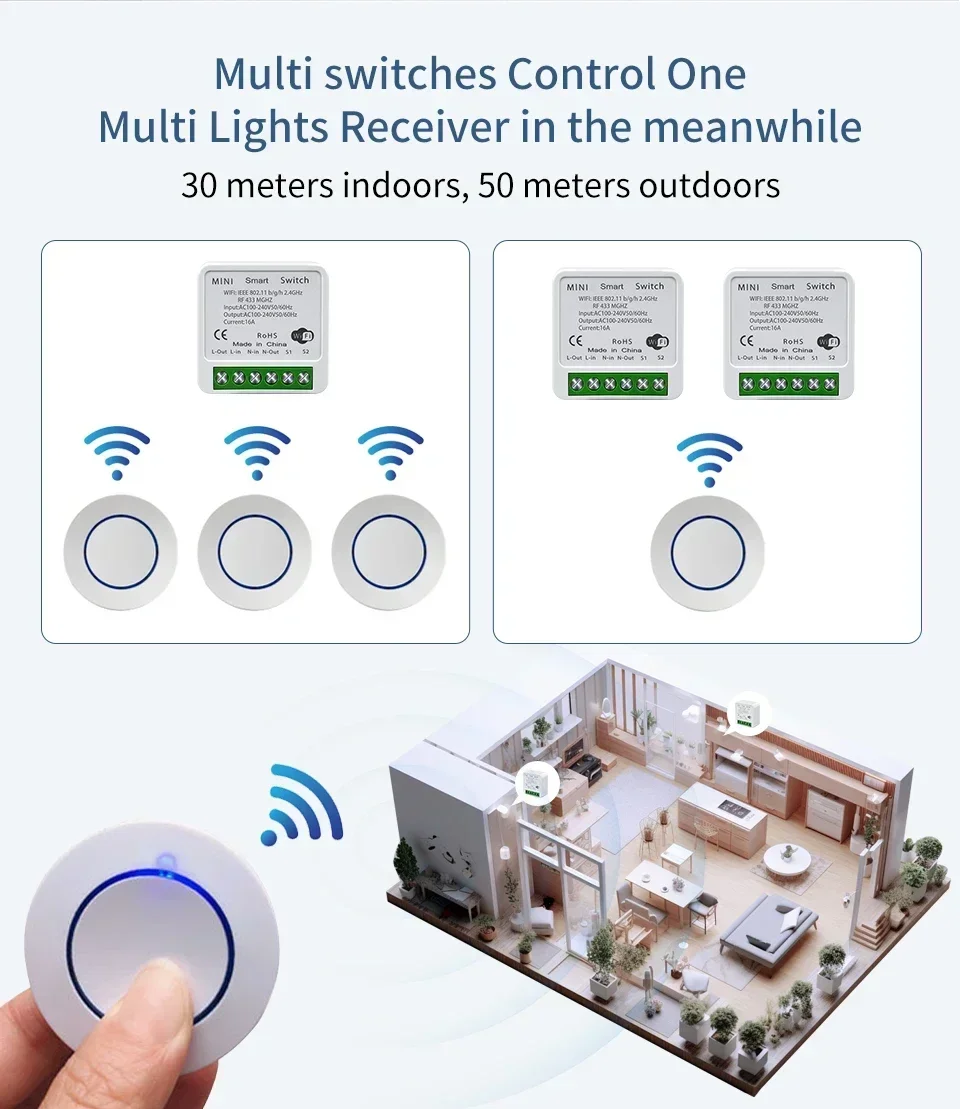

The relay controller is WiFi +RF433MHz, the wall switch is RF433MHz only. mini round botton switch itself cannot control lights on off. It needs to work with WiFi +RF433MHz receiver together.
